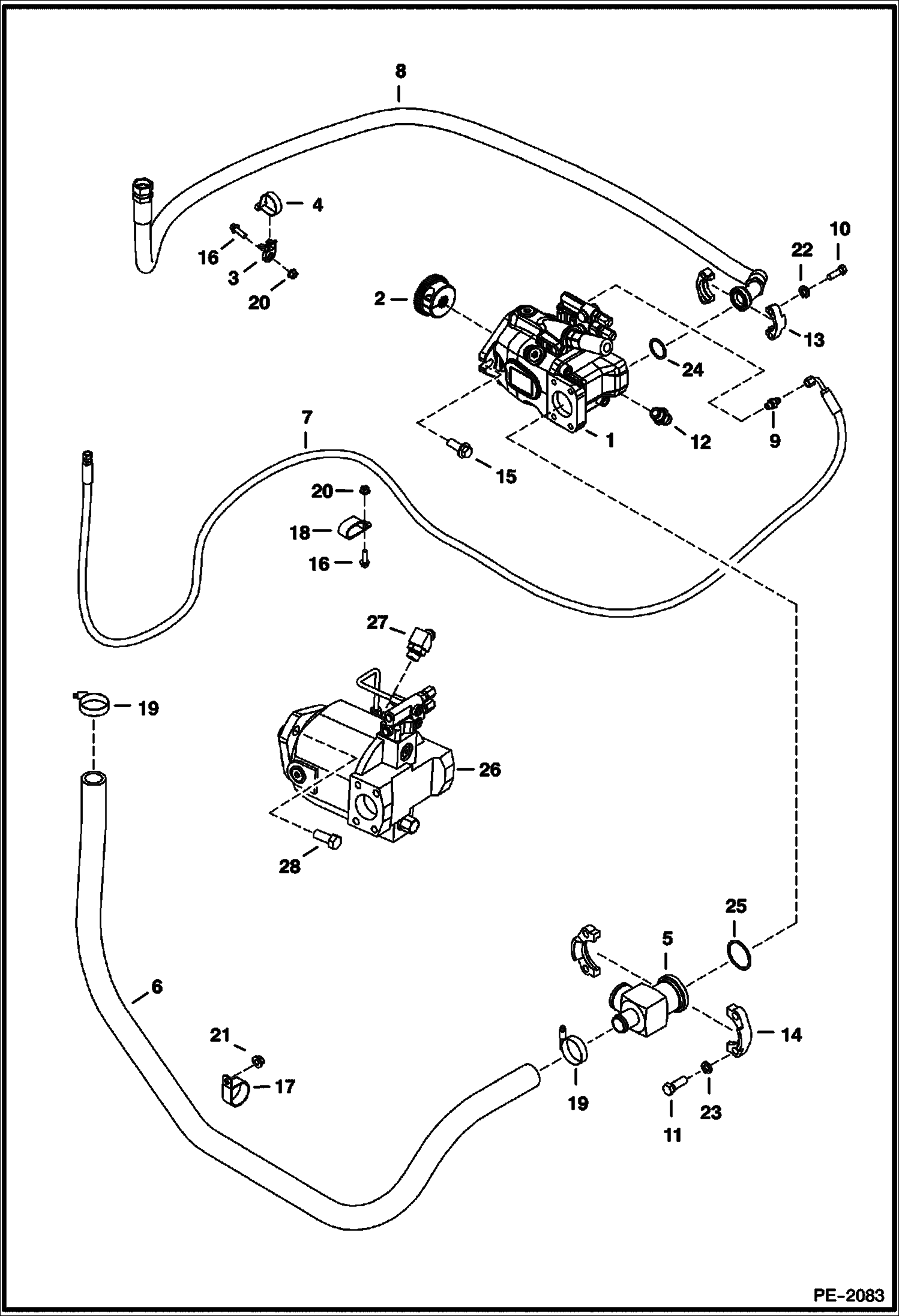

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Pump) HYDRAULIC SYSTEM

1

6698417

PUMP, PISTON See Illustration HYDRAULIC PISTON PUMP/ MS2241 - Was 6686577 - A

2

6675547

COUPLER, HUB

3

6684641

MOUNT

4

6684642

RETAINER

5

7143353

MANIFOLD,PUMP Was 6806621 - A

6

HOSE Order 6673825 bulk 70''

7

6818108

HOSE

8

6818109

HOSE

9

15KB0404

FTG HYD S Connector

9

79K4

O RING 10

10

17C620

BOLT

11

17C820

BOLT Was 17C824 - A

12

15KB1010

FITTING, HYD CONNECTOR

13

19J16

FLANGE

14

19J32

CLAMP

15

29CM1435

SCREW

16

29CM825

BOLT

17

30H85

CLAMP

18

31H42

CLIP

19

42HC200

CLAMP

20

43DM8

NUT

21

43DM10

NUT

22

WASHER no longer needed - Was 4E6

23

WASHER no longer needed - Was 4E8

24

58K219

O RING 10

25

58K228

O RING 10

26

6675294

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ B23898

27

18KB1010

FITTING, HYD ELBOW

27

79K10

O RING 10

28

17C1024

BOLT
