Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Hydraulic Tank) HYDRAULIC SYSTEM

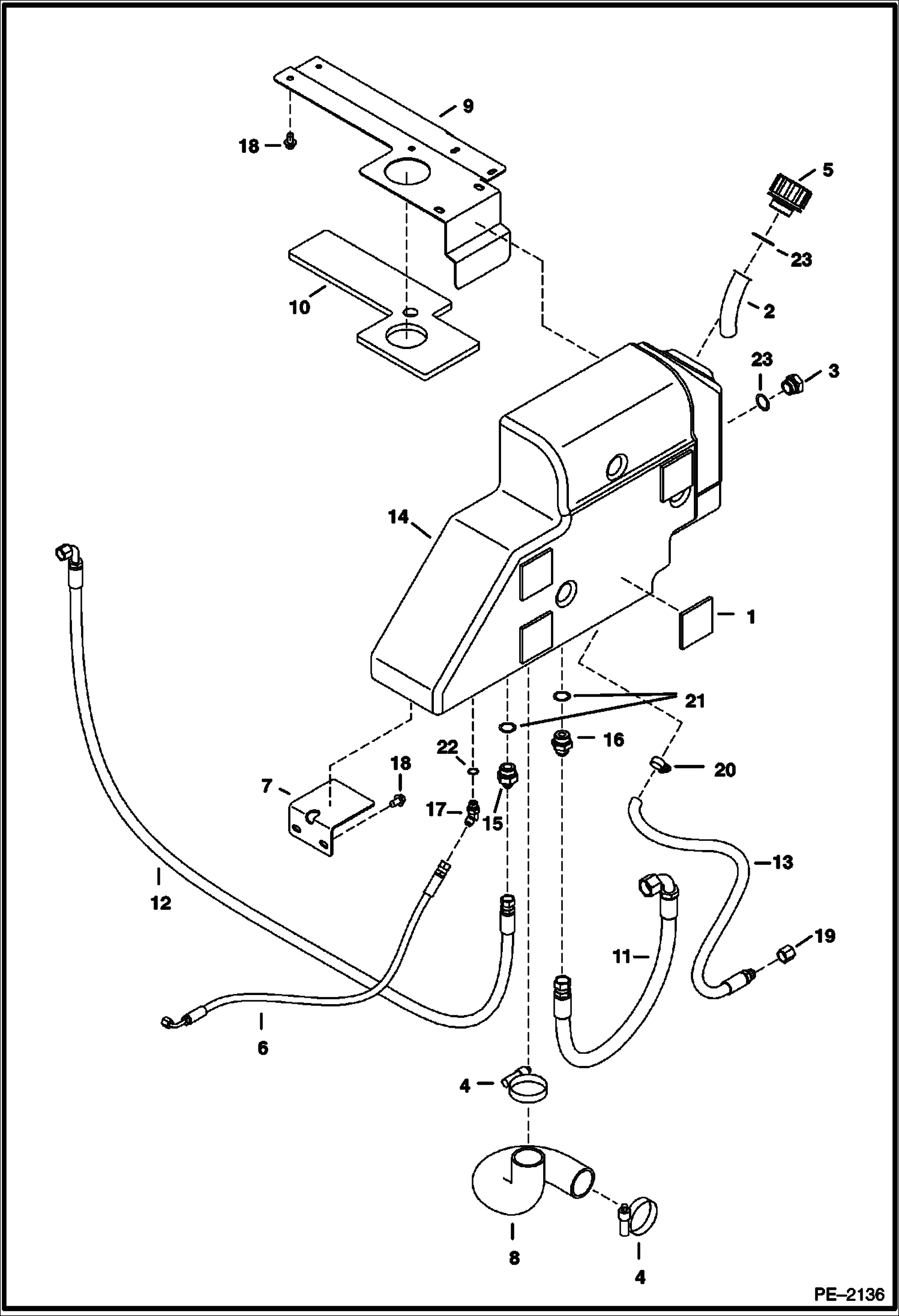

Схема запчастей Bobcat 337 - HYDRAULIC CIRCUITRY (Hydraulic Tank) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6578278

PAD

2

7134222

SCREEN fill - Was 6587168 - A

3

6665915

GAUGE W/Ref. 23

4

42HC250

CLAMP Was 6671626 - A

5

6692836

CAP, HYDRAULIC TANK W/Ref. 23 - Was 6674690 - B,D

6

7107666

HOSE Was 6709050 - A

7

7101356

MOUNT Was 6806623 - A

8

6806634

HOSE

9

6806756

BRACKET

10

6807896

INSULATION

11

6809990

HOSE

11

6809326

HOSE

12

7125148

HOSE Was 6809992 - B

13

6812176

HOSE drain

14

6813826

TANK

15

15KB0812

FITTING, HYD CONNECTOR W/Ref. 21

16

15KB1012

FITTING, HYD CONNECTOR W/Ref. 21

17

18KB0406

FITTING, HYD ELBOW W/Ref. 22 - Was 18KB00606B - B

18

26GM10020

BOLT

19

36K6

CAP

20

5HM20

CLAMP

21

79K12

O RING 10

22

79K6

O RING 10

23

79K20

O RING 10

Выбрано товаров: 24
