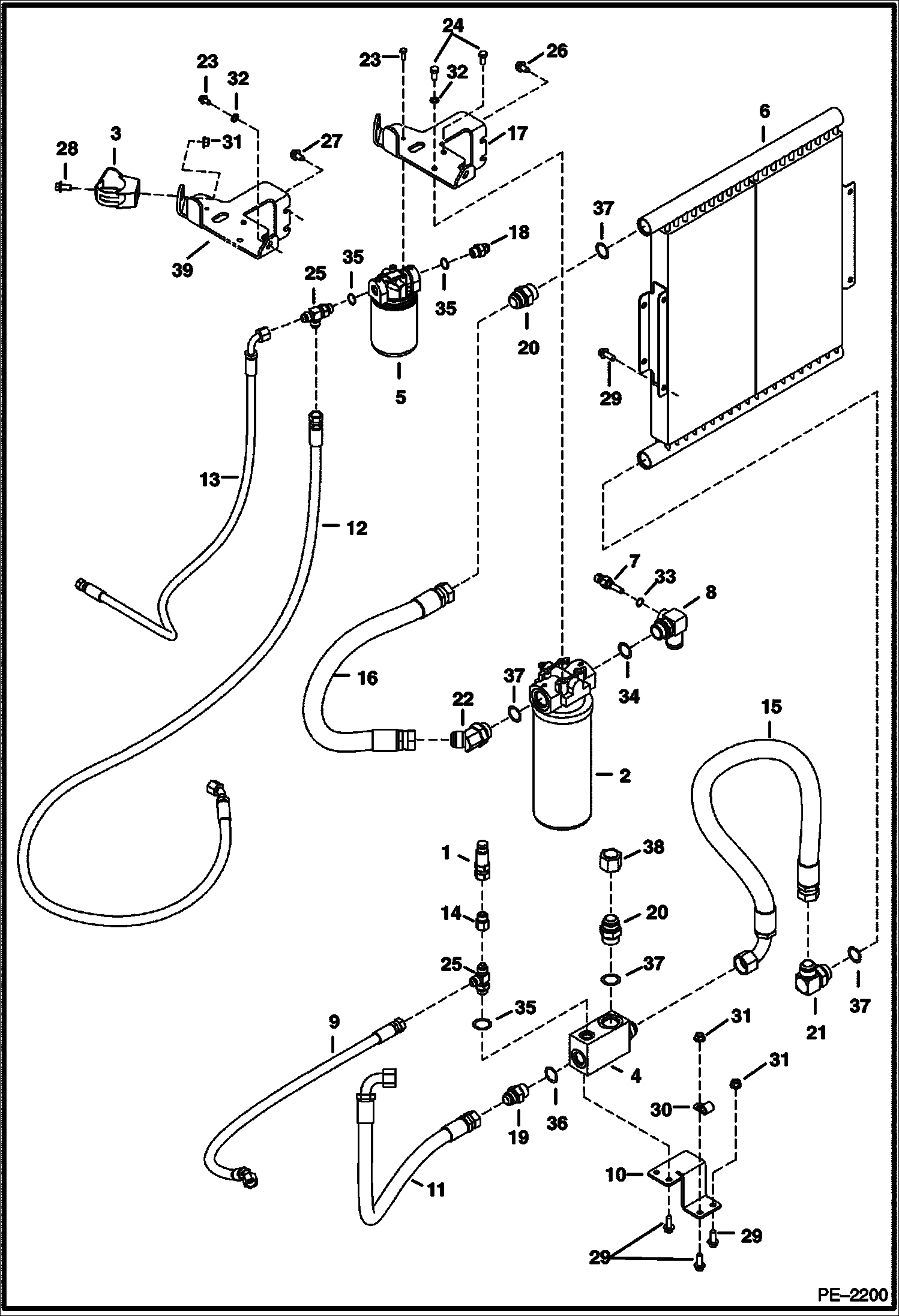

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

1

6667806

COUPLER

2

6675561

FILTER See Illustration HYDROSTATIC OIL FILTER/ NA1844 assy

2

6670207

FILTER hydraulic - element

3

6676945

MOUNT

4

6681586

VALVE pressure build-up

4

6681968

SPRING

4

6681969

POPPET

4

6676044

ADAPTER

5

6686217

FILTER ASSY Was 6682415 - A

5

6516722

FILTER

6

6684366

EXCHANGER

7

6718417

SENDER See Illustration ELECTRICAL/ PE2499 W/Ref. 33 - to harness 6808121 in RH console

8

6806867

ADAPTER W/Ref. 34

9

7125145

HOSE Was 6806994 - B

10

6807350

MOUNT

11

6809989

HOSE

12

7125146

HOSE Was 6809991 - B

13

6809993

HOSE

14

6812828

ADAPTER W/Ref. 35

15

6814402

HOSE

16

6814403

HOSE

17

6814501

MOUNT filter

18

15KB0808

FITTING, HYD CONNECTOR W/Ref. 35

19

15KB1212

FITTING, HYD CONNECTOR W/Ref. 36

20

15KB1616

FITTING, HYD CONNECTOR W/Ref. 37

21

17KB1616

FITTING, HYD ELBOW W/Ref. 37

22

18KB1616

FITTING, HYD ELBOW W/Ref. 37

23

17C412

BOLT 5

24

17C612

BOLT 5

25

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 35

26

26GM8016

SCREW

27

26GM10020

BOLT

28

29CM1020

BOLT

29

29CM1025

BOLT

30

30H35

CLAMP 10

31

43DM10

NUT

32

6E6

WASHER

33

79K6

O RING 10

34

79K10

O RING 10

35

79K8

O RING 10

36

79K12

O RING 10

37

79K16

O RING 10

38

36K10

CAP

39

7114493

MOUNT FILTER filter
