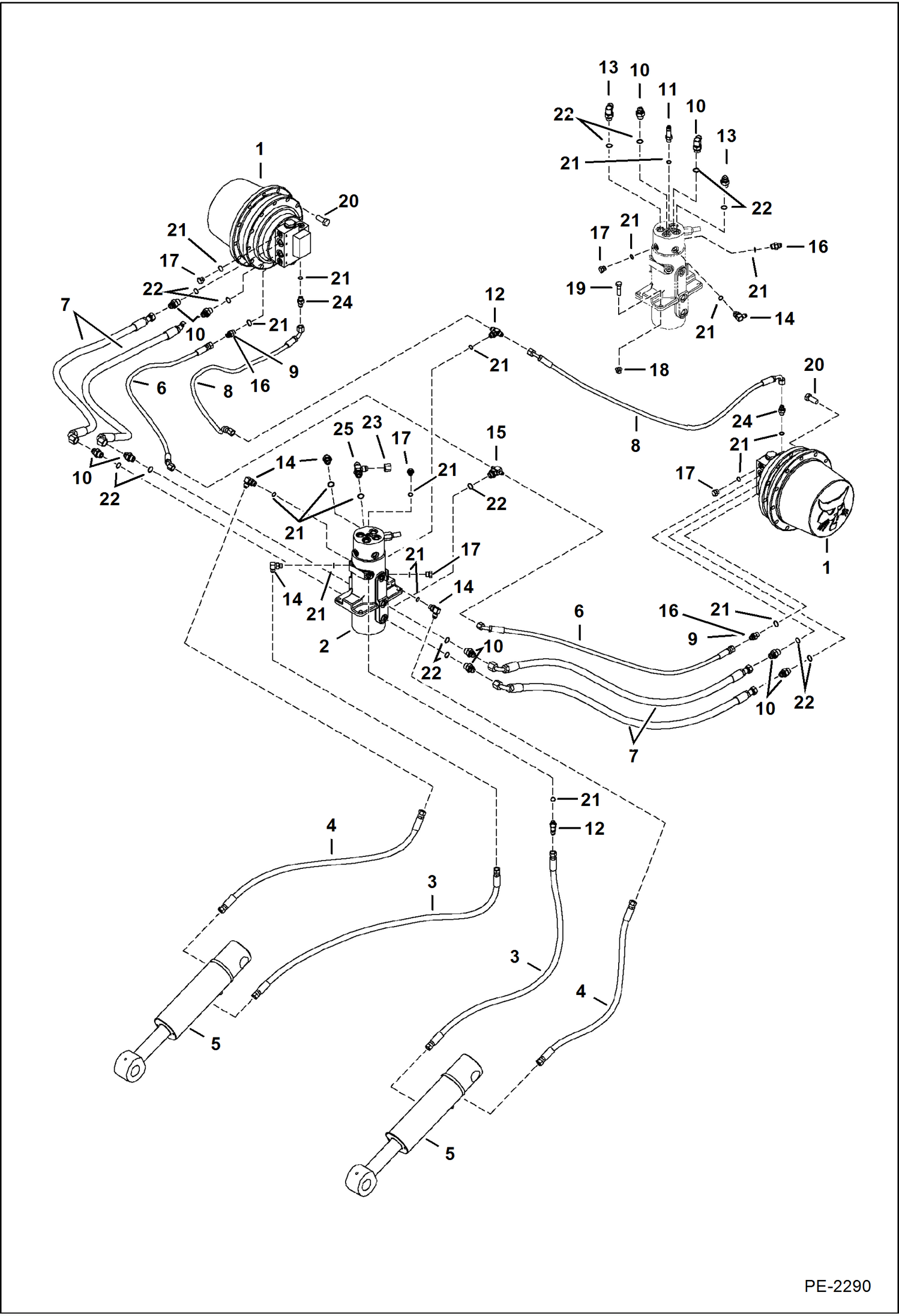

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Lower) (S/N 234611164 & Above, 234711198 & Above) HYDRAULIC SYSTEM

1

6668730

MOTOR travel

2

6811778

SWIVEL See Illustration SWIVEL JOINT/ PE1906 - assy

3

6814831

HOSE

4

6814832

HOSE

5

6815953

CYLINDER

6

6817628

HOSE 9/16'' thread size used with Ref. 16 (15KB606 adapter) & Ref. 15 (19KB608 tee)

6

7106592

HOSE 7/16'' thread size used with Ref. 9 (15KB406 adapter) & Ref. 15 (19KB408 tee)

7

7101091

HOSE

8

7105228

HOSE

9

15KB0406

FTG HYD S CONNECTOR 7/16'' thread size - Use W/Ref. 6 (7106592 hose) - W/Ref. 21

10

15KB0808

FITTING, HYD CONNECTOR W/Ref. 22

11

16KB0606

FTG HYD L CONNECTOR W/Ref. 21

12

19KB0606

TEE W/Ref. 22

13

17KB0808

FITTING, HYD ELBOW W/Ref. 22

14

17KB0606

FITTING 90 degree - W/Ref. 21

15

19KB0608

UNION 9/16'' thread size used with Ref. 6 (6817628 hose) - W/Ref. 22

15

19KB0408

FITTING, HYD TEE 7/16'' thread size used with Ref. 6 (7106592 hose) - W/Ref. 22

16

15KB0606

FITTING, HYD CONNECTOR 9/16'' thread size used with Ref. 6 (6817628 hose) - W/Ref. 21

16

15KB0606

FITTING, HYD CONNECTOR W/Ref. 21

17

24K5

PLUG W/Ref. 21

18

43DM10

NUT

19

53CM1040

SCREW

20

55CM1435

SCREW

21

79K6

O RING 10

22

79K8

O RING 10

23

36K6

CAP

24

6670136

ADAPTER See Illustration TRAVEL MOTOR/ D2403

25

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 21
