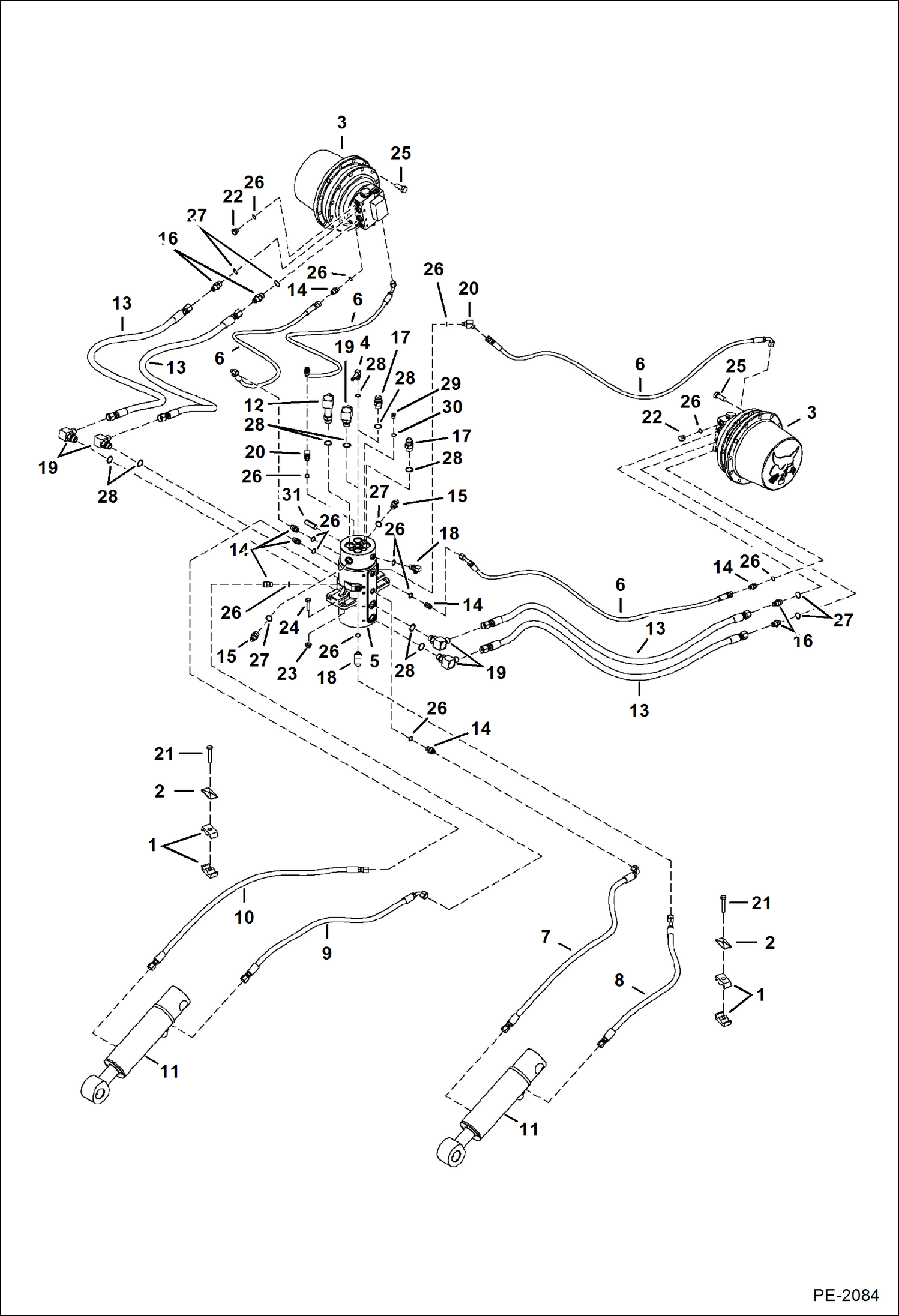

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Lower) (S/N 234611163 & Below, 234711197 & Below) HYDRAULIC SYSTEM

1

6592506

CLAMP

2

6592507

PLATE

3

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403

4

6800755

ELBOW W/Ref. 26

5

6800992

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3468

6

6807335

HOSE

7

6813464

HOSE

8

6813465

HOSE

9

6813466

HOSE

10

6813467

HOSE

11

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

12

6816235

FITTING W/Ref. 28

13

6818096

HOSE

14

15KB0606

FITTING, HYD CONNECTOR W/Ref. 26

15

15KB0608

FITTING, HYD CONNECTOR W/Ref. 27

16

15KB0808

FITTING, HYD CONNECTOR W/Ref. 27

17

15KB0810

FITTING, HYD CONNECTOR W/Ref. 28

18

17KB0606

FITTING W/Ref. 26

19

17KB0810

FITTING, HYD ELBOW W/Ref. 28

20

18KB0606

FITTING, HYD ELBOW W/Ref. 26

21

1CM1060

BOLT

22

24K5

PLUG W/Ref. 26

23

43DM10

NUT

24

53CM1040

SCREW

25

55CM1435

SCREW

26

79K6

O RING 10

27

79K8

O RING 10

28

79K10

O RING 10

29

90KV5

PLUG W/Ref. 28

30

95K6

O'RING

31

6804080

PIN
