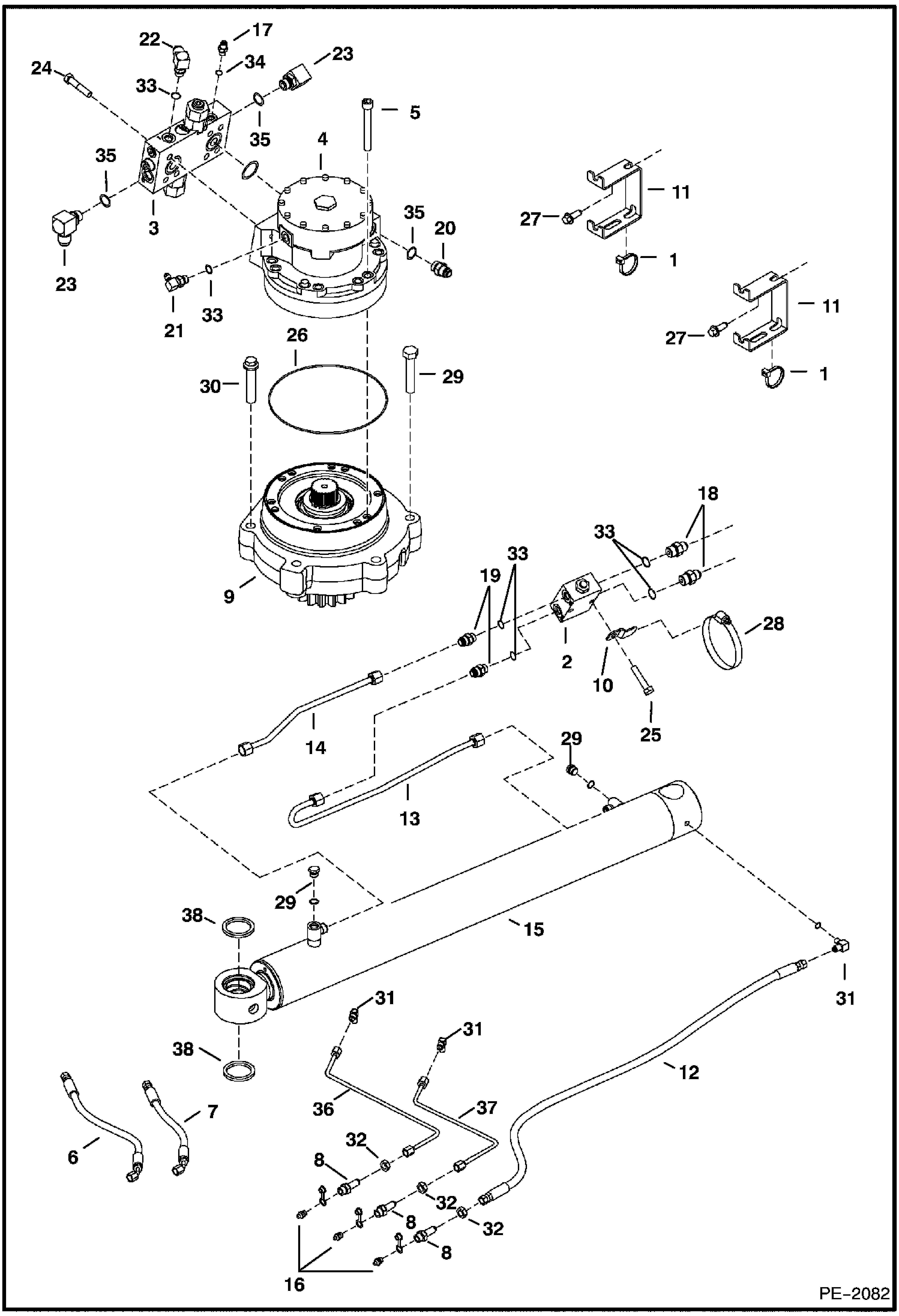

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Upper) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6676167

VALVE

3

6678788

VALVE

4

6678849

SWING MOTOR See Illustration SWING MOTOR/ B17023

5

6717806

BOLT

6

6807474

HOSE Was 6802258 - B

7

6806995

HOSE

8

6807184

FITTING Was 6807181 - D

9

6807330

MOUNT ASSY

10

6807345

MOUNT

11

6807421

BRACKET

12

6802258

HOSE

12

6597811

HOSE

13

6817052

TUBELINE

14

6817053

TUBELINE

15

7156128

CYLINDER, SWING See Illustration SWING CYLINDER/ PE2088 - Also Order (2) of 6669287 dust seal & 6815279 wear bushing - Was 7147421 - A

16

10H25

FITTING, GREASE 5 grease

17

15KB0404

FTG HYD S Connector W/Ref. 34

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 33

19

15KB0806

FITTING, HYD CONNECTOR W/Ref. 33

20

15KB0808

FITTING, HYD CONNECTOR W/Ref. 35

21

17KB0406

FITTING, HYD ELBOW W/Ref. 33

22

17KB0806

FITTING, HYD ELBOW W/Ref. 33

23

17KB0808

FITTING, HYD ELBOW W/Ref. 35

24

SCREW NLA - Was 1C000732B - A

25

1CM1020

BOLT

26

25K30816

O-RING Was 25K30812 - B,D

27

26GM10030

BOLT

28

42H56

CLAMP

29

55CM1680

SCREW

29

55CM1680

SCREW

30

60CM1690

SCREW

31

83F3

ELBOW 5

32

86F3

LOCKNUT

33

79K6

O RING 10

34

79K4

O RING 10

35

79K8

O RING 10

36

7102693

TUBE

36

7126408

TUBELINE

37

7102692

TUBE

38

6669287

SEAL dust
