Запчасти Bobcat 337 CONTROLS (Offset) CONTROLS

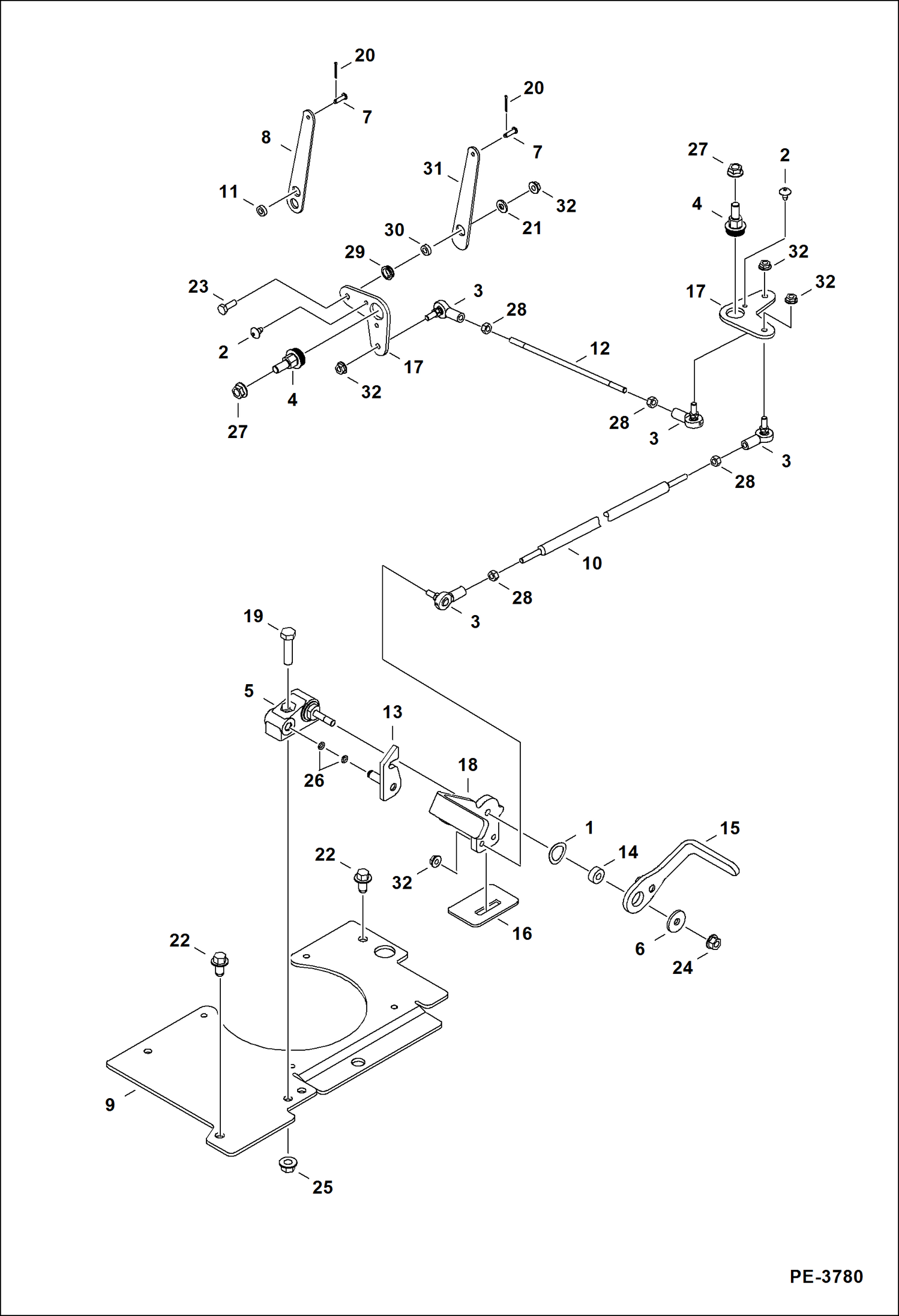

Схема запчастей Bobcat 337 - CONTROLS (Offset) CONTROLS

Артикул

Название

Примечание

Количество

1

6536803

WASHER wavy

2

6589675

SCREW

3

6631036

JOINT

4

6675992

BEARING

5

6677908

BEARING LH

6

6701174

WASHER

7

6801068

PIN

8

LINK NLA - original design Use W/O Ref. 29 - Order Ref. 29-31 - Was 6807341 - A

9

6807370

MOUNT

10

6808002

ROD

11

SPACER NLA - original design Use W/O Ref. 29 - Order Ref. 29-31 - Was 6808003 - A

12

6808004

ROD

13

6809194

LOCK

14

6810303

SPACER

15

6810508

PEDAL

16

6812070

SEAL

17

6812938

BELLCRANK

18

6816109

PEDAL

19

1CM1040

BOLT

20

1F212

PIN cotter

21

25E13

WASHER 5

22

26GM10020

BOLT

23

18C412

BOLT Was 2C412 - A

24

47DM8

NUT

25

51DM10

NUT

26

54K20008

O-RING

27

83D6

NUT 5 Was 57D6 - A

28

62D4

NUT

29

6698186

BEARING, CLIP modified design - Use W/Ref. 30 & 31

30

7155449

SPACER modified design - Use W/Ref. 29 & 31

31

7157294

LINK, SPOOL modified design - Use W/Ref. 29 & 30

32

98D4

NUT Was 62D4

Выбрано товаров: 32
