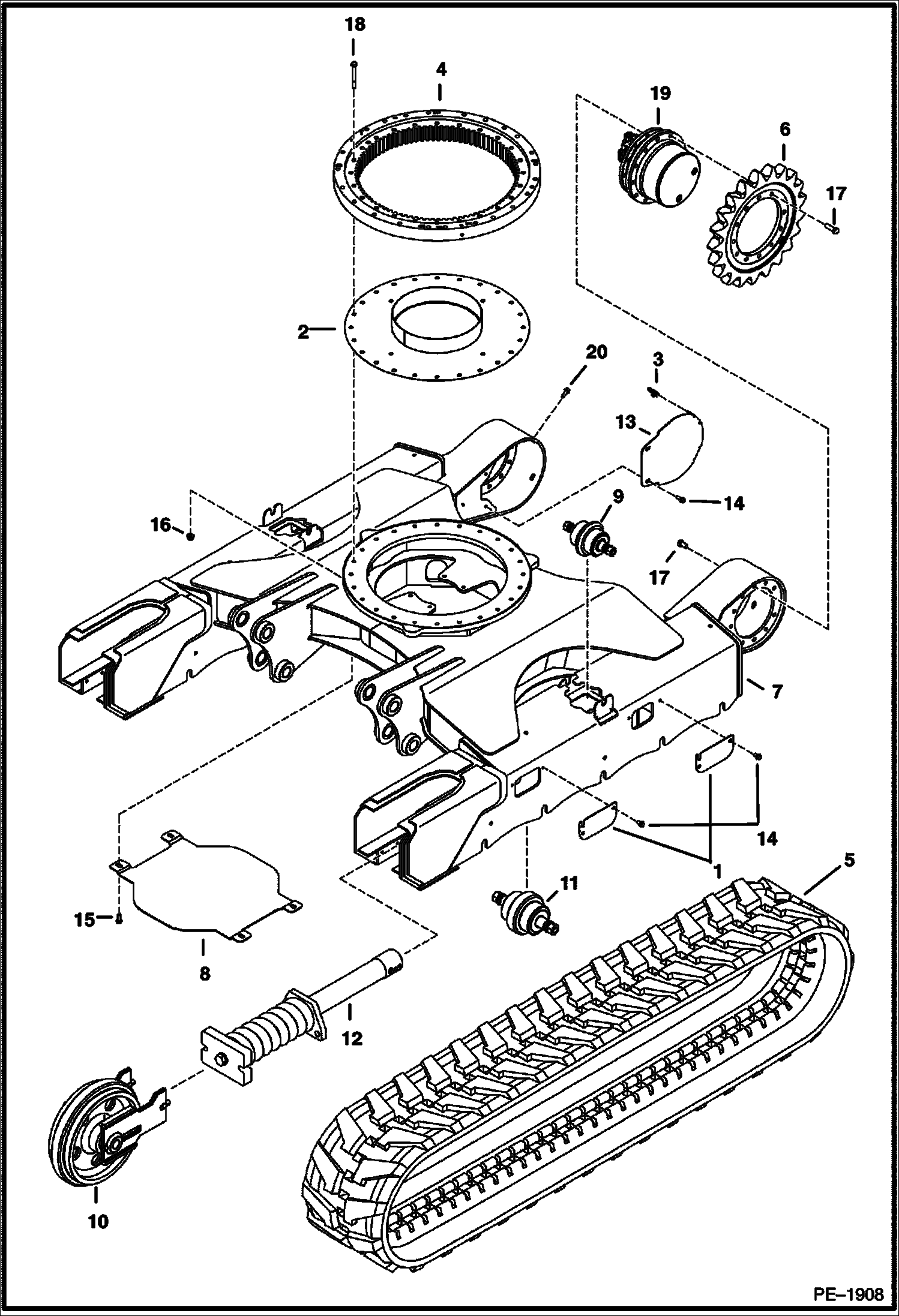

Запчасти Bobcat 337 UNDERCARRIAGE (S/N 234611164 & Above and 234711198 & Above) UNDERCARRIAGE

1

6596723

COVER

2

6627719

FLANGE bearing

3

6675722

NUT

4

6675777

BEARING

5

TRACK, RUBBER See Illustration TRACKS/ NA6193

5

TRACK, STEEL See Illustration TRACKS/ NA1888

6

6816209

SPROCKET, MOTOR DRIVE TRACK Was 6812134 - A

7

UNDERCARRIAGE NLA - Order 7169212 undercarriage and (2) 7152282 track tensioners - Was 6812738 - A

8

7102346

PLATE

9

ROLLER ASSY See Illustration TRACK ROLLER/ PE2459 - top

10

6815125

IDLER See Illustration FRONT IDLER/ PE1911 - assy

11

ROLLER ASSY See Illustration TRACK ROLLER/ PE1913 - bottom

12

CYLINDER See Illustration TRACK TENSIONER/ PE1912 - Assy.

13

6816483

COVER

14

26GM10020

BOLT

15

26GM10030

BOLT

16

51DM12

NUT

17

55CM1435

SCREW Was 55CM1445 - D

18

7CM12100

BOLT

19

6668730

MOTOR See Illustration TRAVEL MOTOR/ D2403 - travel

20

29CM1030

BOLT Was 26GM10030 - B
