Запчасти Bobcat 337 HEATER BOX (S/N 233311227 & Below & 233211244 & Below) ACCESSORIES & OPTIONS

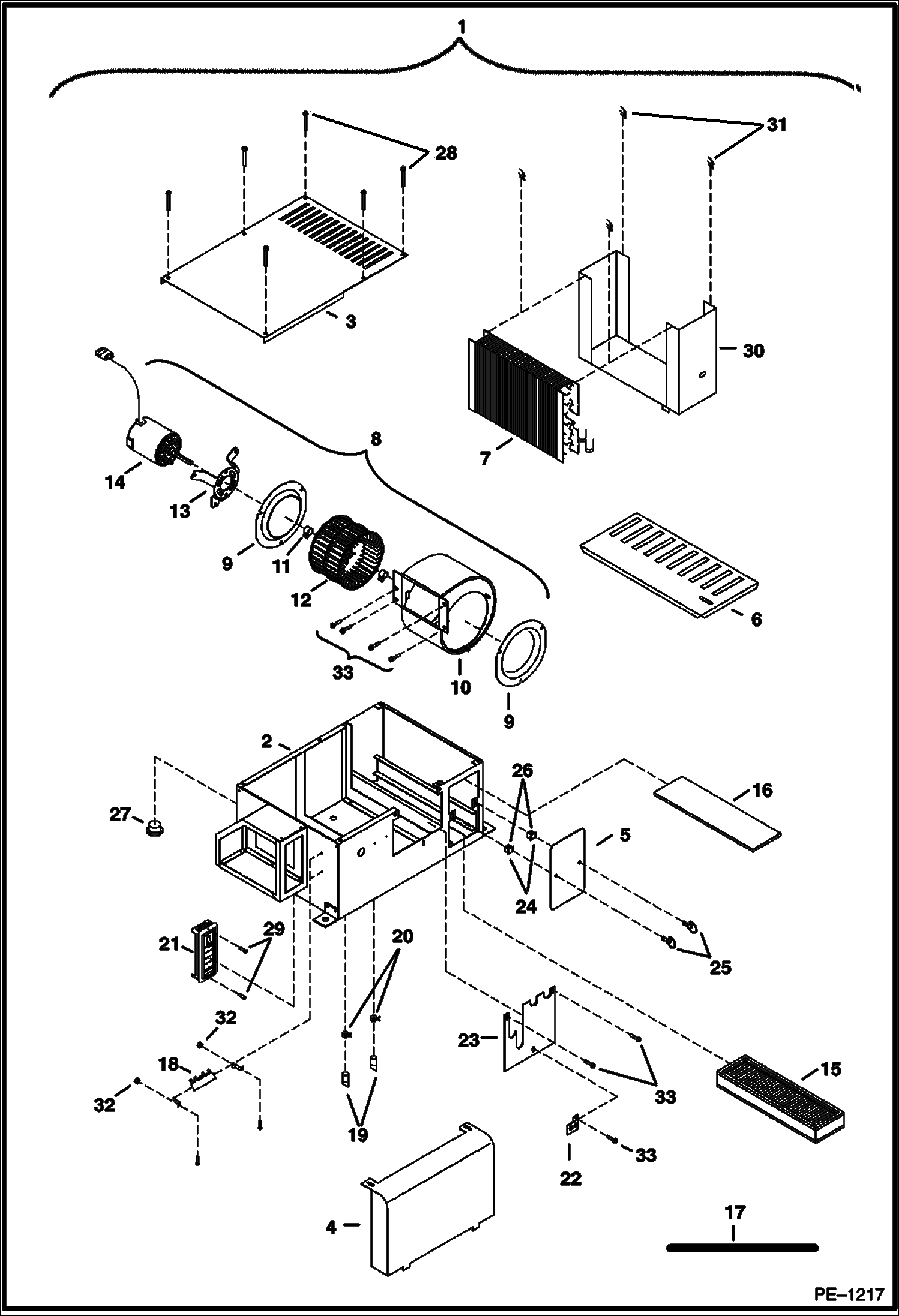

Схема запчастей Bobcat 337 - HEATER BOX (S/N 233311227 & Below & 233211244 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6676487

HEATER assy. - order 6677477

2

6677538

CASE

3

6677539

COVER

4

6677540

COVER

5

6677541

PLATE

6

6677542

SUPPORT coil

7

6677543

COIL heater

8

6677544

BLOWER Ref. 9 - 14 & 33

9

6677546

VENTURI

10

6677545

HOUSING

11

6676618

CLIP

12

6677547

WHEEL blower

13

6677548

BRACKET motor

14

6677549

MOTOR

15

6674230

FILTER fresh air

16

6677550

FILTER recirculating

17

6677551

HARNESS not shown

18

6677552

RESISTOR

19

6675511

DRAIN VALVE

20

6675510

CLAMP drain

21

6676713

LOUVER

22

6677553

BRACKET

23

6677554

COVER coil

24

6677555

RECEPTACLE snap in

25

6677556

STUD

26

6677557

RETAINER

27

6677560

PLUG

28

26GM5010

SCREW

29

87G606

SCREW

30

6677759

BRACKET not used with a/c

31

6676539

CLIP

32

43DM5

NUT

33

87G510

SCREW

Выбрано товаров: 33
