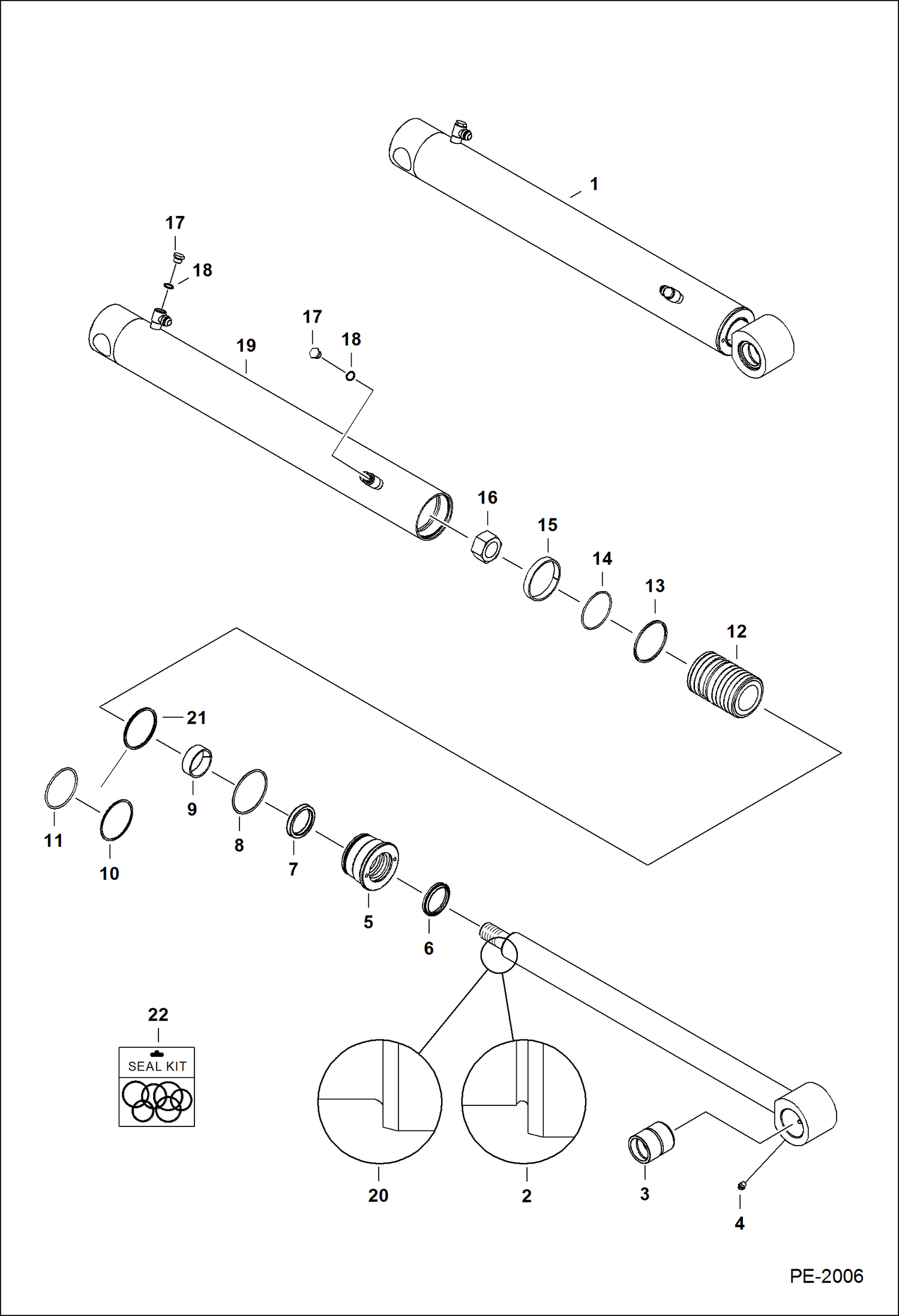

Запчасти Bobcat 337 SWING CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - W/Ref. 2, 4-19 - Order 7149984 - Also Order Ref. 3 - Was 6818173 - A

1

7156572

CYLINDER, SWING W/Ref. 4-20 - Also Order Ref. 3 - Was 7149984 - A

2

ROD NLA - Order 7147422 rod & 7147313 piston - Also Order Ref. 3 & 4 - Was 6810468 - A

3

6815279

BUSHING

4

10H25

FITTING, GREASE 5 grease

5

6818158

HEAD 1.02'' of threads

6

6686998

WIPER, ROD CYL Was 6666545 - A

7

82K236

O-RING Was 58K000236B - A

8

6667328

SEAL rod

9

7000772

RING, WEAR Was 6698134 - A

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

58K234

O RING 10 Was 54K40300 - B

12

7147313

PISTON Was 6816010 - A

13

25K30226

O RING 10 Was 54K30226 - B

14

6513466

PISTON RG piston

15

7000777

RING, WEAR Was 6698179 - A

16

6810540

NUT

17

6812171

PLUG W/Ref. 18

18

95K6

O'RING

19

6816012

HOUSING 1.02'' threads

20

7147422

ROD Also Order Ref. 3 & 4

21

7008354

SEAL, QUAD

22

7161903

KIT, SEAL Ref. 6-8, 13, 14, 16, & 21 - Was 7156129 - A
