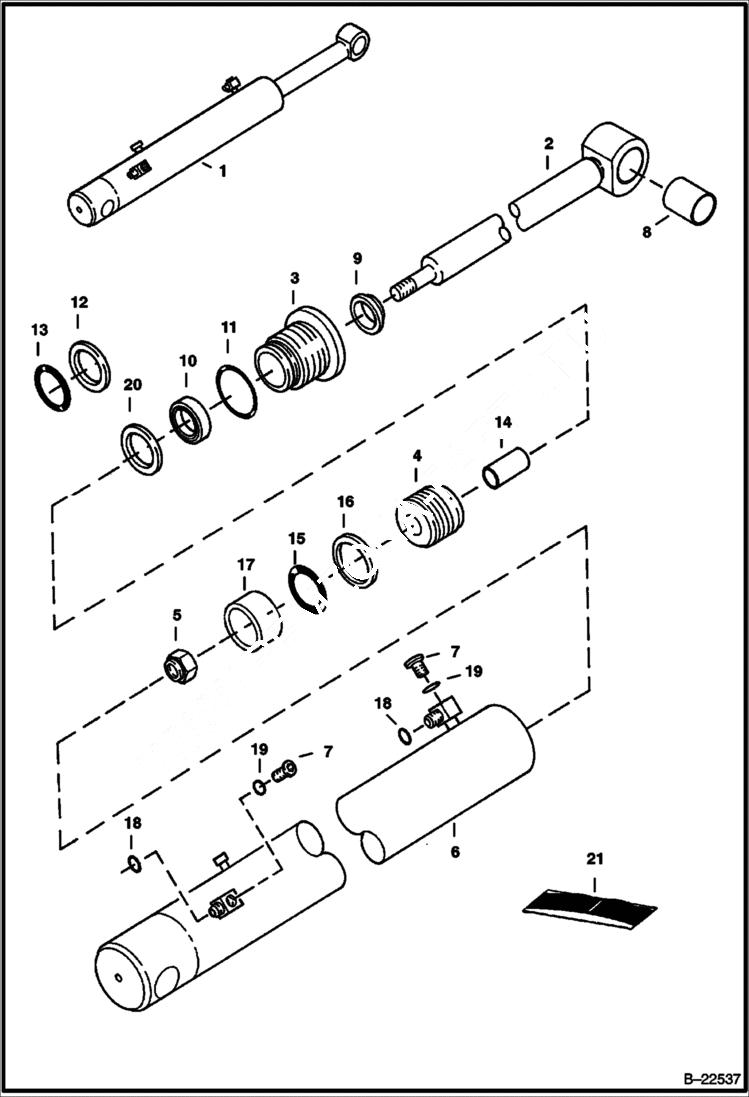

Запчасти Bobcat 337 ARM CYLINDER (S/N 233311696-12313 and 233211621-12460) HYDRAULIC SYSTEM

1

CYLINDER See Illustration ARM CYLINDER/ B22519 - NLA - W/Ref. 2-17 - Order 6816912 and Ref. 8 - Was 6810811 - A

2

6812247

ROD 2'' OD Rod - Also Order Ref. 8

3

6800306

HEAD W/1.07'' thread length

3

6812238

HEAD W/1.22'' thread length

4

6807754

PISTON

5

6810540

NUT

6

6810812

HOUSING

7

90KV5

PLUG W/Ref. 20 - tapered boss face

7

6812171

PLUG W/Ref. 20 - flat boss face

8

6802372

BUSHING

9

6686998

WIPER, ROD CYL Was 6666545 - A

10

6667328

SEAL

11

82K238

O-RING Was 58K000238B - A

12

RING NLA - back-up - Order Ref. 20 - Was 73K338 - B

13

O RING 10 NLA - Order Ref. 20 - Was 58K338 - B

14

6802557

SPACER 1.50'' long

14

6812345

SPACER 1.34'' long

15

25K30300

O RING 10 Was 54K30300 - A

16

1530265

PISTON SEAL

17

7000775

RING, WEAR Was 6698177 - A

18

55K16

O'RING

19

79K6

O RING 10 flat boss face

19

95K6

O'RING tapered boss face

20

7008353

SEAL, QUAD

21

7196897

KIT, SEAL Ref. 5, 9-11, 15-17 & 20 - Was 7138007 - A
