CONTROL VALVE (Swing Section)

Запчасти Bobcat 337 CONTROL VALVE (Swing Section) HYDRAULIC SYSTEM

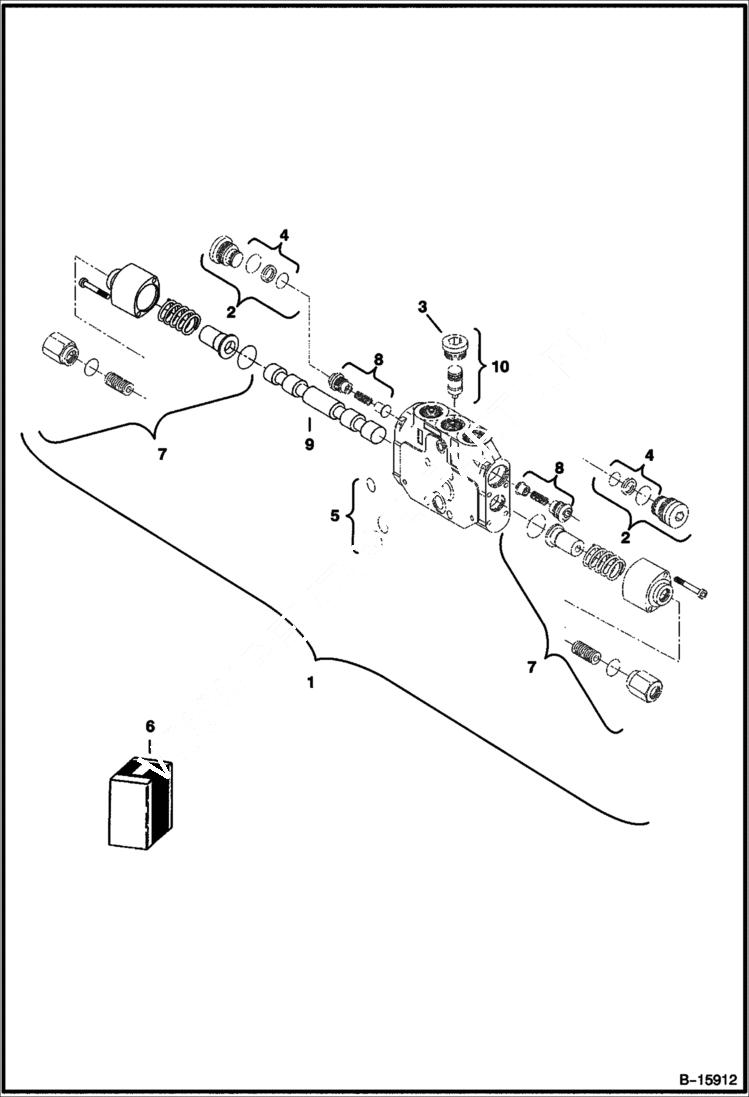

Схема запчастей Bobcat 337 - CONTROL VALVE (Swing Section) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6677460

VALVE section - swing

2

6677471

PLUG ASSY

3

6685248

PLUG assy - Was 6677469 - A

4

6677468

SEAL KIT

5

6677467

KIT, SEAL

6

6677470

SEAL KIT assy - Was 6685264 - A

7

6677700

ACTUATOR end cap

8

6677689

CHECK VALVE

9

6677688

SPOOL

10

6677692

KIT COMPENSATOR
