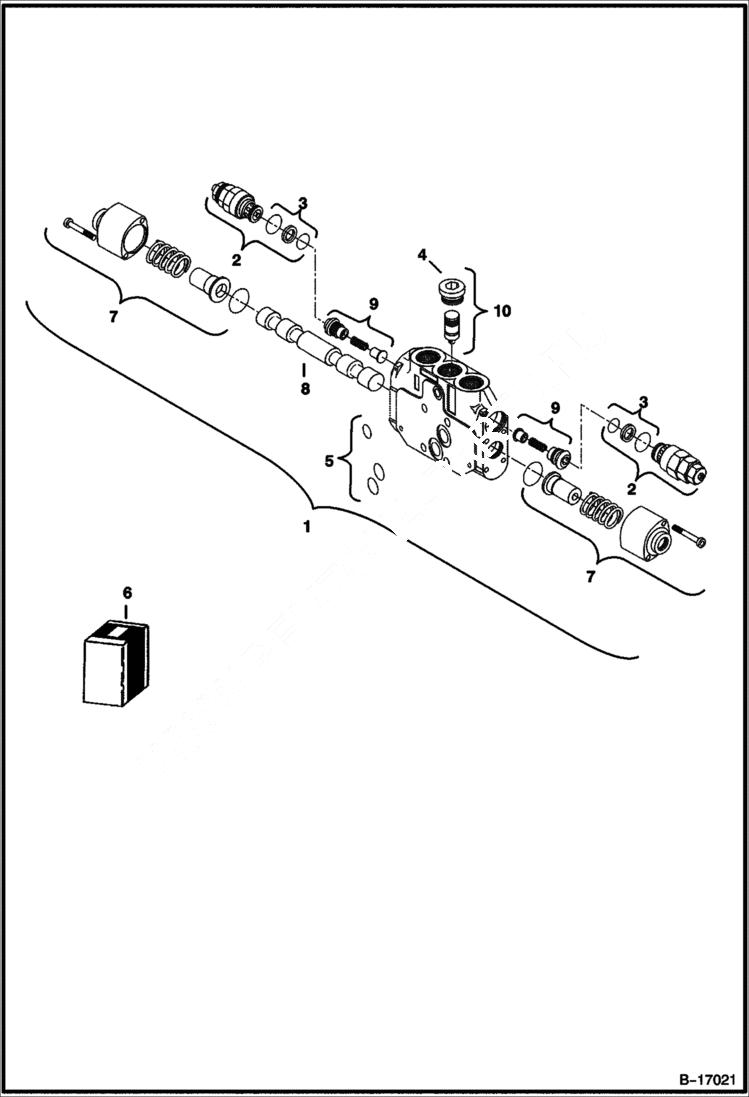

Запчасти Bobcat 337 CONTROL VALVE (Boom Section) HYDRAULIC SYSTEM

1

VALVE NLA - section - boom - order 6682028 - Was 6677455 - A

1

6682028

VALVE

2

6677705

RELIEF VALVE

3

6677468

SEAL KIT

4

6685248

PLUG assy - Was 6677469 - A

5

6677467

KIT, SEAL

6

6677470

SEAL KIT assy - Was 6685264 - A

7

6677699

ACTUATOR assy - Was 6685254 - A

8

SPOOL NLA - Order Ref. 1 - Was 6677683 - A

8

SPOOL NLA - Order Ref. 1 - Was 6682029 - A

9

6677689

CHECK VALVE assy

10

6677690

KIT, COMPENSATOR pressure
