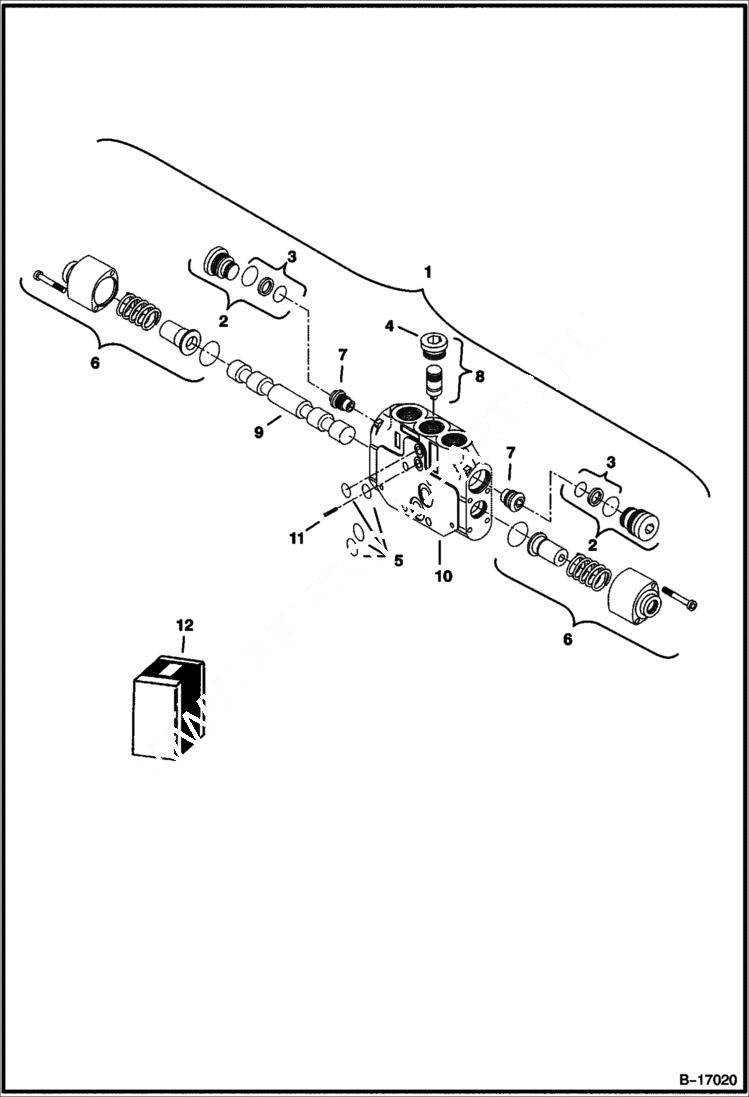

Запчасти Bobcat 337 CONTROL VALVE (Right Travel Section) HYDRAULIC SYSTEM

1

VALVE See Illustration CONTROL VALVE/ B15905 - Section - RH travel - Order 6679924 - Was 6677453 - A

1

6679924

SECTION, VALVE - section - RH travel - does not use Ref. 2, 3, & 7 - W/(3) O-ring grooves

1

6679924

SECTION, VALVE See Illustration CONTROL VALVE/ B15905 - section - RH travel - does not use Ref. 2, 3, & 7 - W/(3) O-ring grooves

2

6677471

PLUG ASSY W/Ref. 3

3

6677468

SEAL KIT

4

6685248

PLUG assy - Was 6677469 - A

5

6677472

KIT,SEAL

6

6677699

ACTUATOR assy - Was 6685254 - A

7

6677697

PLUG

8

6677690

KIT, COMPENSATOR pressure

9

6677681

SPOOL Order Ref. 1

9

6679925

SPOOL Order Ref. 1

10

BLOCK NSS - Order Ref. 1

11

6677695

SCREW

12

6677470

SEAL KIT assy - Was 6685264 - A
