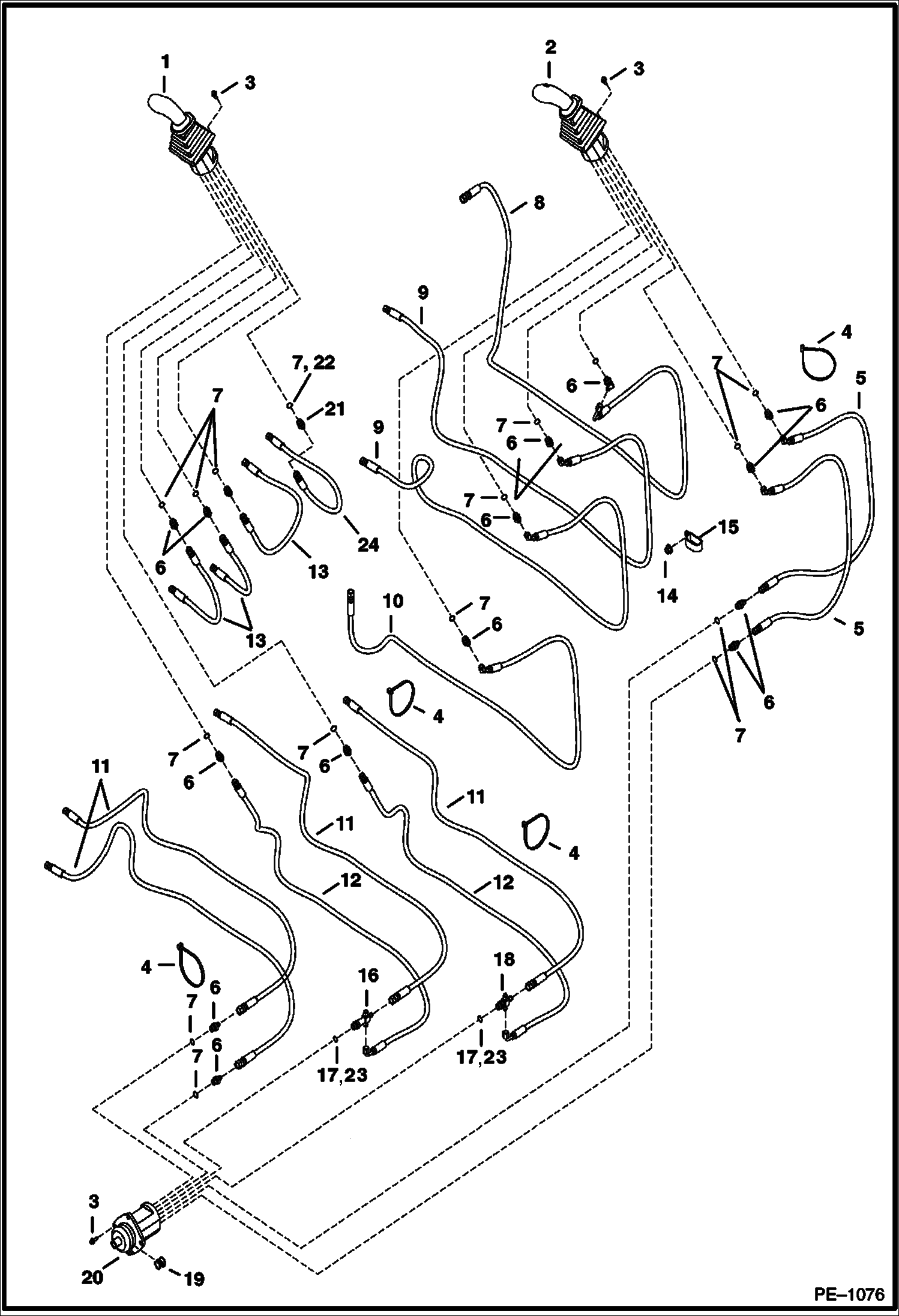

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Joysticks) HYDRAULIC SYSTEM

1

6675297

JOYSTICK See Illustration R.H. JOYSTICK/ B16420 - Right

1

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352 - Right

2

6675296

JOYSTICK See Illustration L.H. JOYSTICK/ B16423 - Left

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354 - Left

3

26GM6020

SCREW

4

6624289

STRAP, TIE

5

6803091

HOSE

6

CONNECTOR NLA - W/Ref. 7 - tapered boss - Was 6804359 - A

6

15KB0406

FTG HYD S CONNECTOR W/Ref. 7 - flat boss face

6

CONNECTOR NLA - W/Ref. 7 - tapered boss- Was 15KN00003B - B

6

15KB0404

FTG HYD S Connector W/Ref. 7 - flat boss face

6

97K4

O'RING flare end

7

99K4

O'RING tapered boss

7

79K4

O RING 10 flat boss

8

HOSE NLA - order 6809392 & 6715652 - Was 6807481 - A

8

6809392

HOSE

9

6802819

HOSE

10

6807482

HOSE

11

6806787

HOSE

12

6807480

HOSE

13

6807625

HOSE

14

43DM10

NUT

15

31H46

CLAMP

16

6807231

CROSS W/Ref. 17

16

6812829

CROSS W/Ref. 23 - Was 6810513 - A

17

79K6

O RING 10

18

6807230

CROSS W/Ref. 17

18

6812830

CROSS W/Ref. 23 - Was 6810512 - A

19

6806996

SPRING

20

6675388

CONTROLLER travel

20

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351 - travel

21

17KB0406

FITTING, HYD ELBOW W/Ref. 22 - Was 6715652

21

97K4

O'RING flare end

21

ELBOW NLA - W/Ref. 7 - tapered boss - Was 17KV00003B - B

21

17KB0404

FTG HYD ELBOW 90 W/Ref. 7 - flat boss

21

97K4

O'RING flare end

22

99K6

O RING

23

79K4

O RING 10

24

6530901

HOSE
