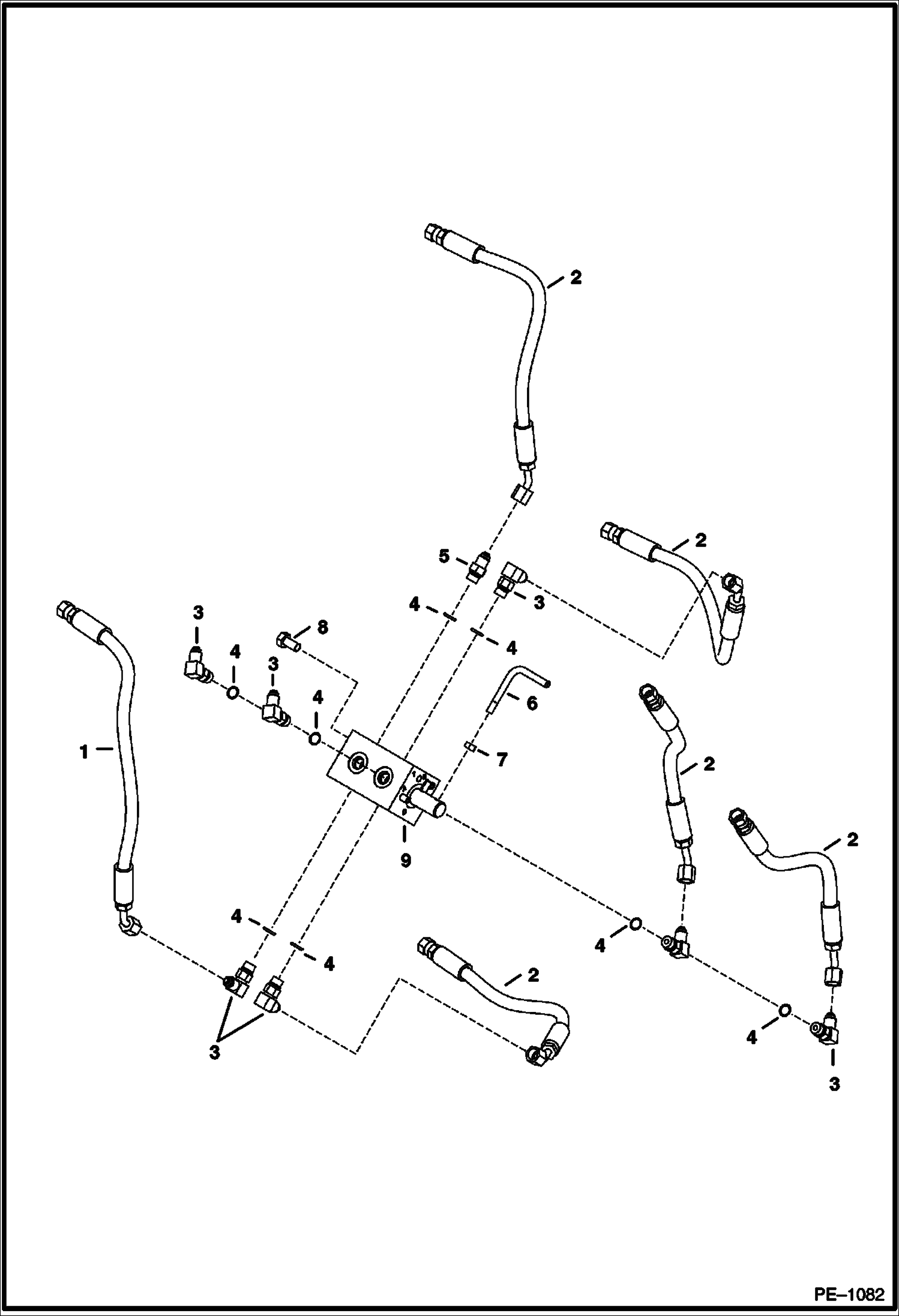

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (ISO/STD) HYDRAULIC SYSTEM

1

6807483

HOSE

2

6806995

HOSE

3

ELBOW NLA - W/Ref. 4 - tapered boss - Was 17KV00003B - B

3

17KB0404

FTG HYD ELBOW 90 W/Ref. 4 - flat boss

3

97K4

O'RING flare end

4

99K4

O'RING tapered boss

4

79K4

O RING 10 flat boss

5

CONNECTOR NLA - W/Ref. 4 - tapered boss - Was 15KN00003B - B

5

15KB0404

FTG HYD S Connector flat boss face

5

97K4

O'RING flare end

6

6804251

HANDLE

7

53DM6

NUT Was 1DM6 - A

8

29CM816

SCREW Was 1CM00816B - B

9

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353
