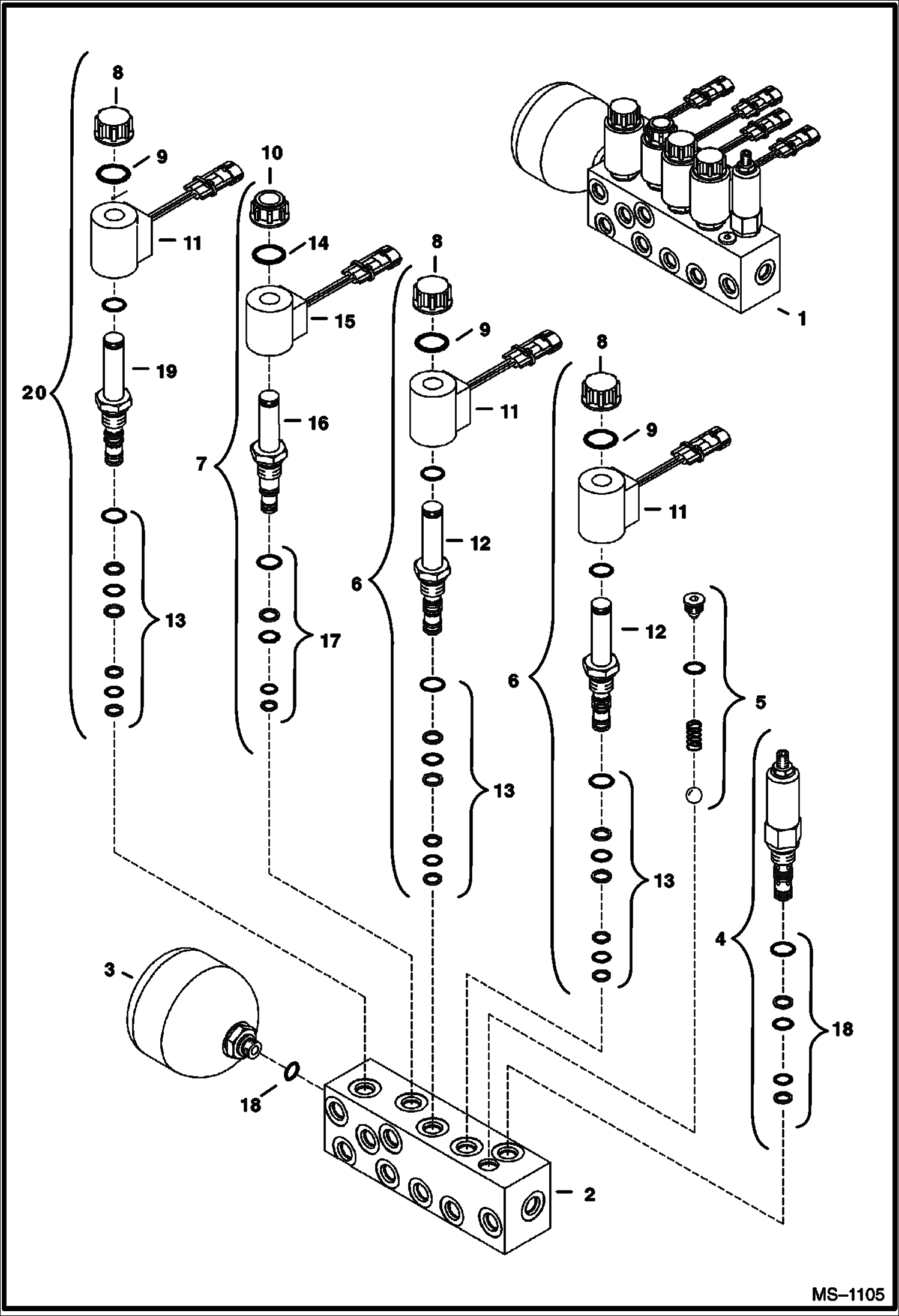

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (S/N 233311636 & Below and 233211536 & Below) HYDRAULIC SYSTEM

1

6676157

MANIFOLD - assy - Was 6676165 - D

2

BLOCK NSS - Order Ref. 1

3

6675349

ACCUMULATOR

4

6675350

VALVE pressure reducing

5

6675348

VALVE assy. - check

6

6677816

VALVE assy. - W/Ref. 8, 9, 11-13

7

6675994

VALVE assy. - W/Refs. 10, 14-17

8

6676042

NUT W/Ref. 9

9

O-RING NSS - Order Ref. 8

10

6675359

NUT W/Ref. 9

11

6676041

COIL

12

6676040

VALVE

13

6676043

SEAL KIT

14

O-RING NSS - Order Ref. 10

15

6675351

COIL

16

6675352

SOLENOID

17

6675353

SEAL KIT

18

6675354

O-RING

19

6678841

VALVE

20

6678841

VALVE proportional Ref 8, 9, 11, 13 & 19
