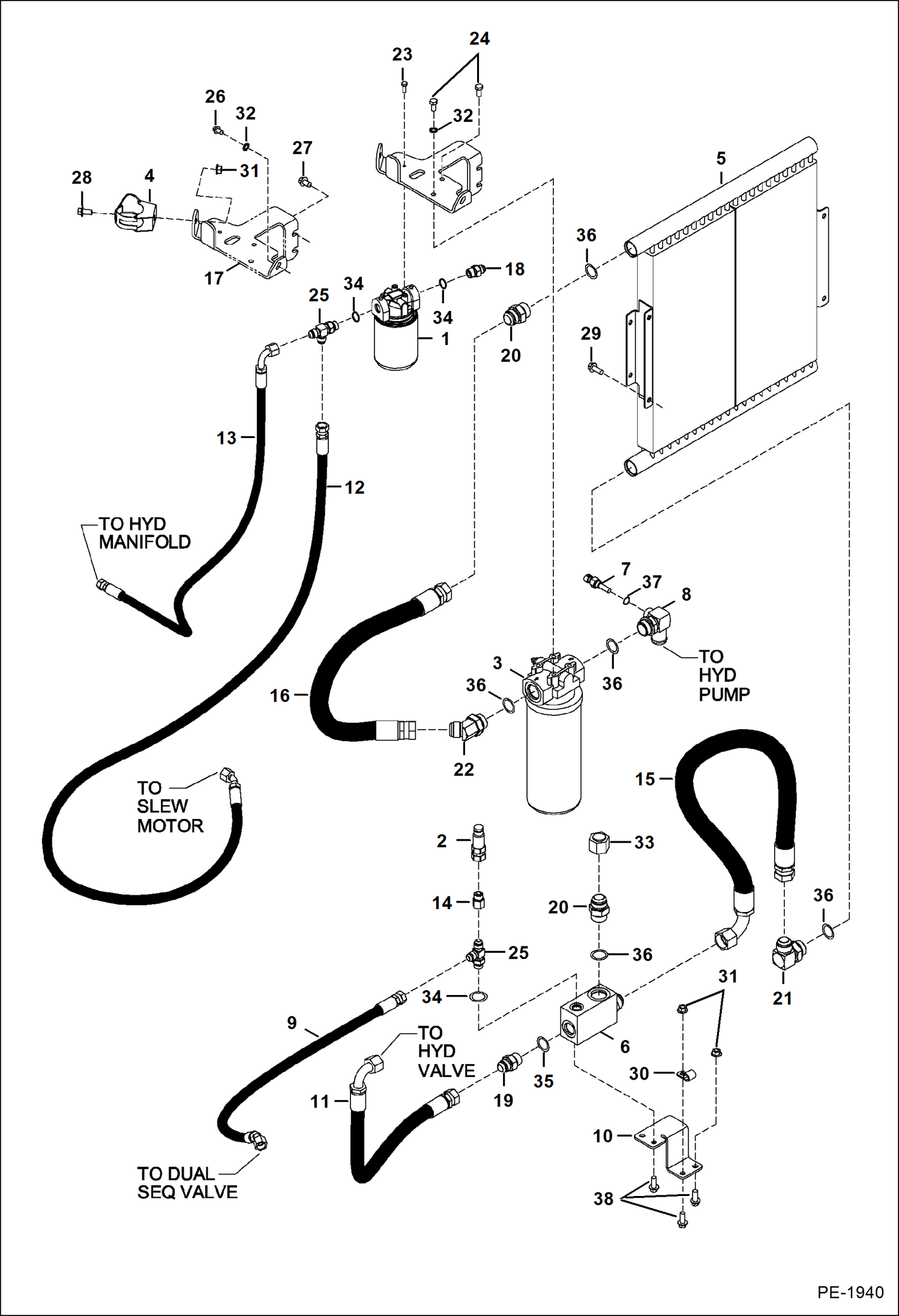

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Cooler - Filters) (S/N 233312196 & Above and 233212310 & Above) HYDRAULIC SYSTEM

1

6686217

FILTER ASSY Was 6682415 - A

1

6516722

FILTER

2

6667806

COUPLER

3

6675561

FILTER

3

6670207

FILTER

4

6676945

MOUNT

5

6679844

HEAT EXCHANGE

6

6681586

VALVE pressure build-up

6

6681968

SPRING

6

6681969

POPPET

6

6676044

ADAPTER

7

6718417

SENDER hyd temp

8

6806867

ADAPTER

9

6806994

HOSE

10

6807350

MOUNT

11

6809989

HOSE

12

6809991

HOSE

13

6809993

HOSE

14

6812828

ADAPTER

15

6814402

HOSE

16

6814403

HOSE

17

6814501

MOUNT

18

15KB0808

FITTING, HYD CONNECTOR

19

15KB1212

FITTING, HYD CONNECTOR

20

15KB1616

FITTING, HYD CONNECTOR

21

17KB1616

FITTING, HYD ELBOW

22

18KB1616

FITTING, HYD ELBOW

23

17C412

BOLT 5

24

17C612

BOLT 5

25

21KB0808

FTG HYD STRAIGHT TEE

26

26GM8016

SCREW

27

26GM10020

BOLT

28

29CM1020

BOLT

29

29CM1025

BOLT

30

30H35

CLAMP 10

31

43DM10

NUT

32

6E6

WASHER

33

36K10

CAP

34

79K8

O RING 10

35

79K12

O RING 10

36

79K16

O RING 10

37

79K6

O RING 10
