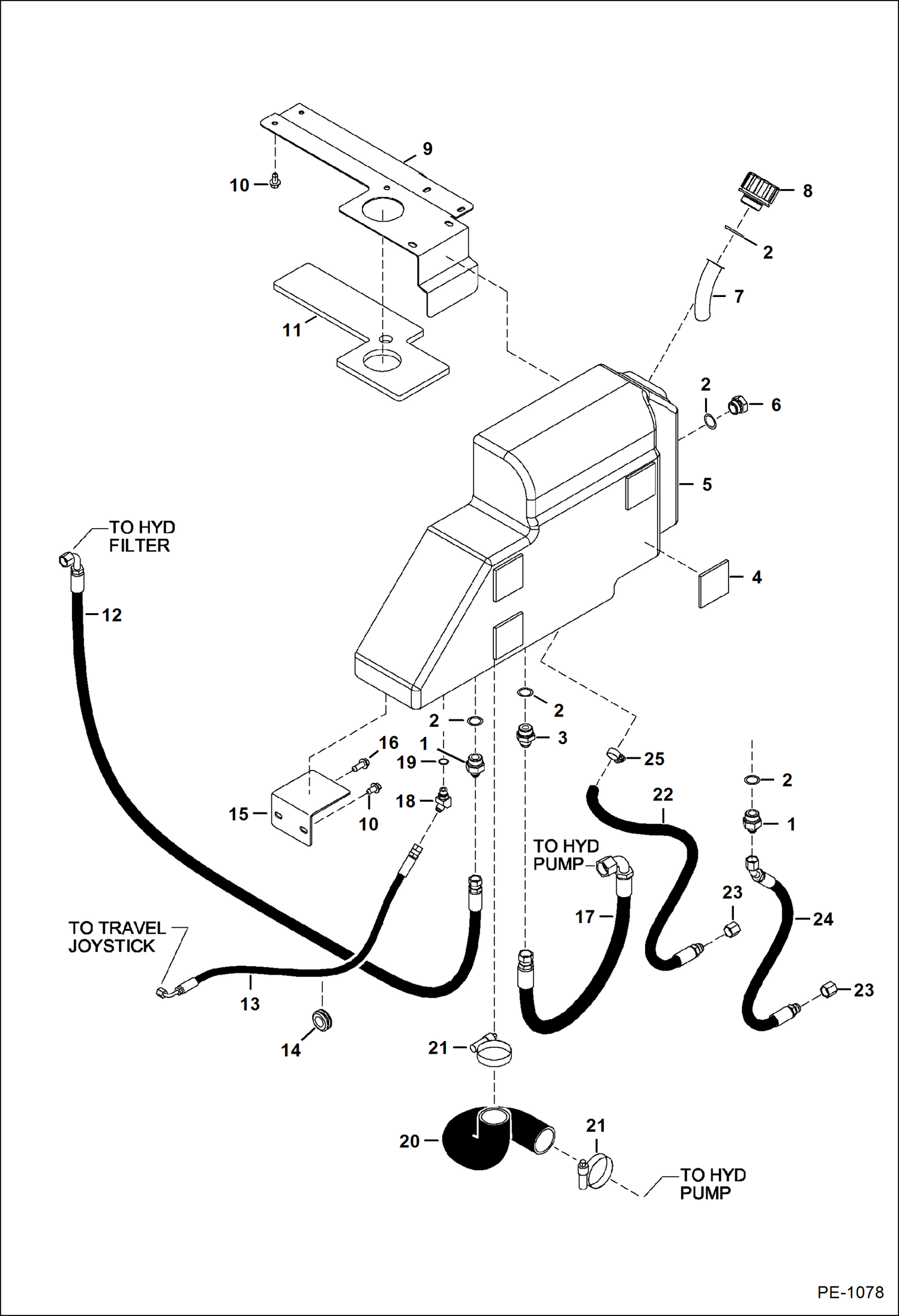

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Hydraulic Tank) HYDRAULIC SYSTEM

1

CONNECTOR NLA - W/Ref. 2 - tapered boss - Was 755054B - A

1

15KB0812

FITTING, HYD CONNECTOR W/Ref. 2 - flat boss

2

79K12

O RING 10

3

15KB1012

FITTING, HYD CONNECTOR W/Ref. 2 - Was 755055B - A

4

6578278

PAD

5

TANK NLA - order 6812174 , 6812176 hose, & 5HM00020B clamp - Was6810319 - A

5

6813826

TANK Was 6812174 - A

6

6665915

GAUGE W/Ref. 2

7

7134222

SCREEN fill - Was 6587168 - A

8

6692836

CAP, HYDRAULIC TANK W/Ref. 2 - Was 6674690 - B,D

9

6806756

BRACKET

10

26GM10020

BOLT

11

6807896

INSULATION Was 6807869 - D

12

6809992

HOSE Was 6807471 - A

13

6709050

HOSE

14

6587887

GROMMET

15

7101356

MOUNT Was 6806623 - A

16

26GM10030

BOLT

17

6809990

HOSE Was 6806626 - A

18

FITTING NLA - W/Ref. 19 - tapered boss - Was 18KN00005B - A

18

18KB0606

FITTING, HYD ELBOW W/Ref. 19 - flat boss

18

97K8

O-RING flare end

19

99K8

O-RING tapered boss

19

79K8

O RING 10 flat boss

20

6806634

HOSE

21

42HC250

CLAMP Was 6671626 - A

22

6811407

HOSE drain - Was 6807472 - A

23

36K6

CAP

24

6812176

HOSE drain

25

5HM20

CLAMP
