Запчасти Bobcat 337 CONTROL - OFFSET (S/N 233312195 & Above and 233212284 & Above) CONTROLS

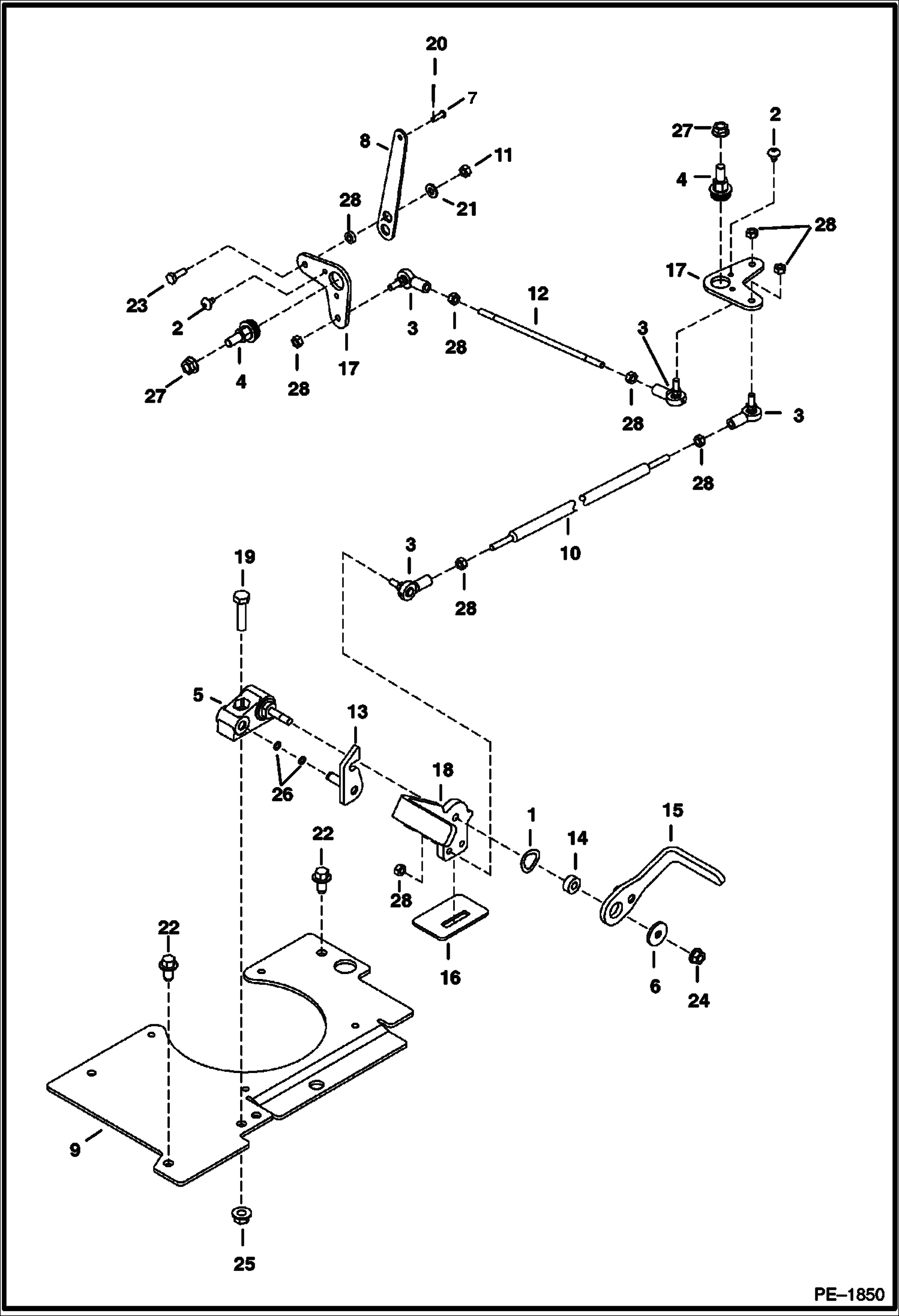

Схема запчастей Bobcat 337 - CONTROL - OFFSET (S/N 233312195 & Above and 233212284 & Above) CONTROLS

Артикул

Название

Примечание

Количество

1

6536803

WASHER wavy

2

6589675

SCREW

3

6631036

JOINT

4

6675992

BEARING

5

6677908

BEARING

6

6701174

WASHER

7

6801068

PIN

8

6807341

LINK

9

6807370

MOUNT

10

6808002

ROD

11

6808003

SPACER

12

6808004

ROD

13

6809194

LOCK

14

6810303

SPACER

15

6810508

PEDAL

16

6812070

SEAL

17

6812938

BELLCRANK

18

6816109

PEDAL

19

1CM1040

BOLT

20

1F212

PIN cotter

21

25E13

WASHER 5

22

26GM10020

BOLT Was 26GM00020B - D

23

2C412

SCREW

24

47DM8

NUT

25

51DM10

NUT

26

54K20008

O-RING

27

57D6

NUT 5

28

62D4

NUT

Выбрано товаров: 28
