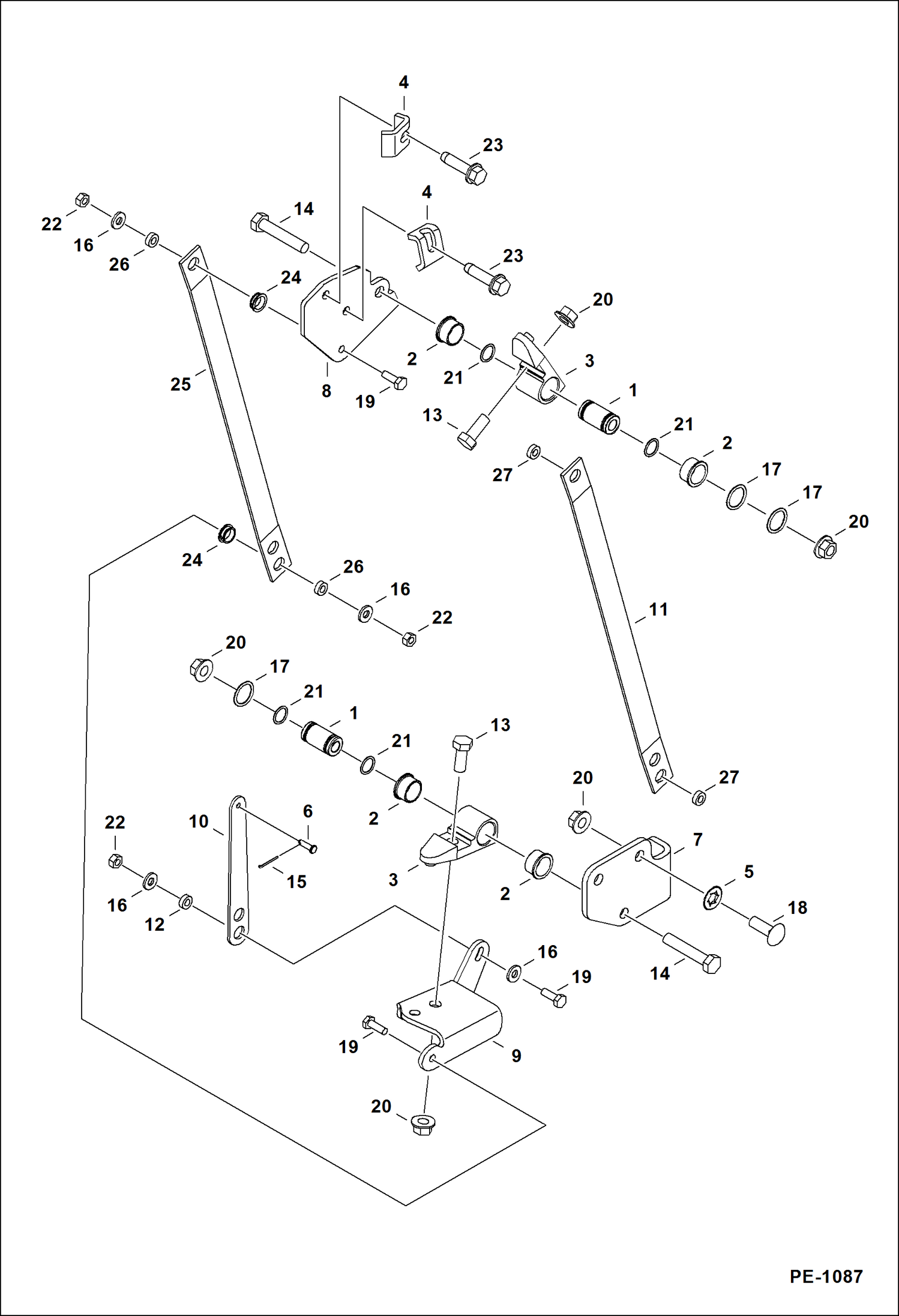

Запчасти Bobcat 337 CONTROLS - BLADE CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6537481

MOUNT

4

6562266

CLAMP

5

6674264

RETAINER NUT

6

6801068

PIN

7

6807164

MOUNT

8

7137687

PLATE Was 7100534 - A

9

6807333

BRACKET

10

6807341

LINK

11

LINK NLA - original design Use W/O Ref. 24 - Order Ref. 24-26 - Was 6808003 - A

12

6808003

SPACER

13

1CM1025

BOLT

14

1CM1055

BOLT

15

1F212

PIN

16

25E13

WASHER 5

17

6536802

WASHER Was 27E000006B - B

18

28CM1030

BOLT

19

18C412

BOLT

20

51DM10

NUT Was 43DM10 - A

21

58K015

O-RING 10

22

98D4

NUT Was 62D4 - A

23

84G3720

BOLT Was 84G3724

24

6698186

BEARING, CLIP modified design - Use W/Ref. 25 & 26

25

7157675

LINK, FORMED modified design - Use W/Ref. 24 & 26

26

7155449

SPACER modified design - Use W/Ref. 24 & 25

27

SPACER NLA - original design Use W/O Ref. 24 - Order (2) of Ref. 24 & 26, & (1) of 25 - Was 6813003 - A
