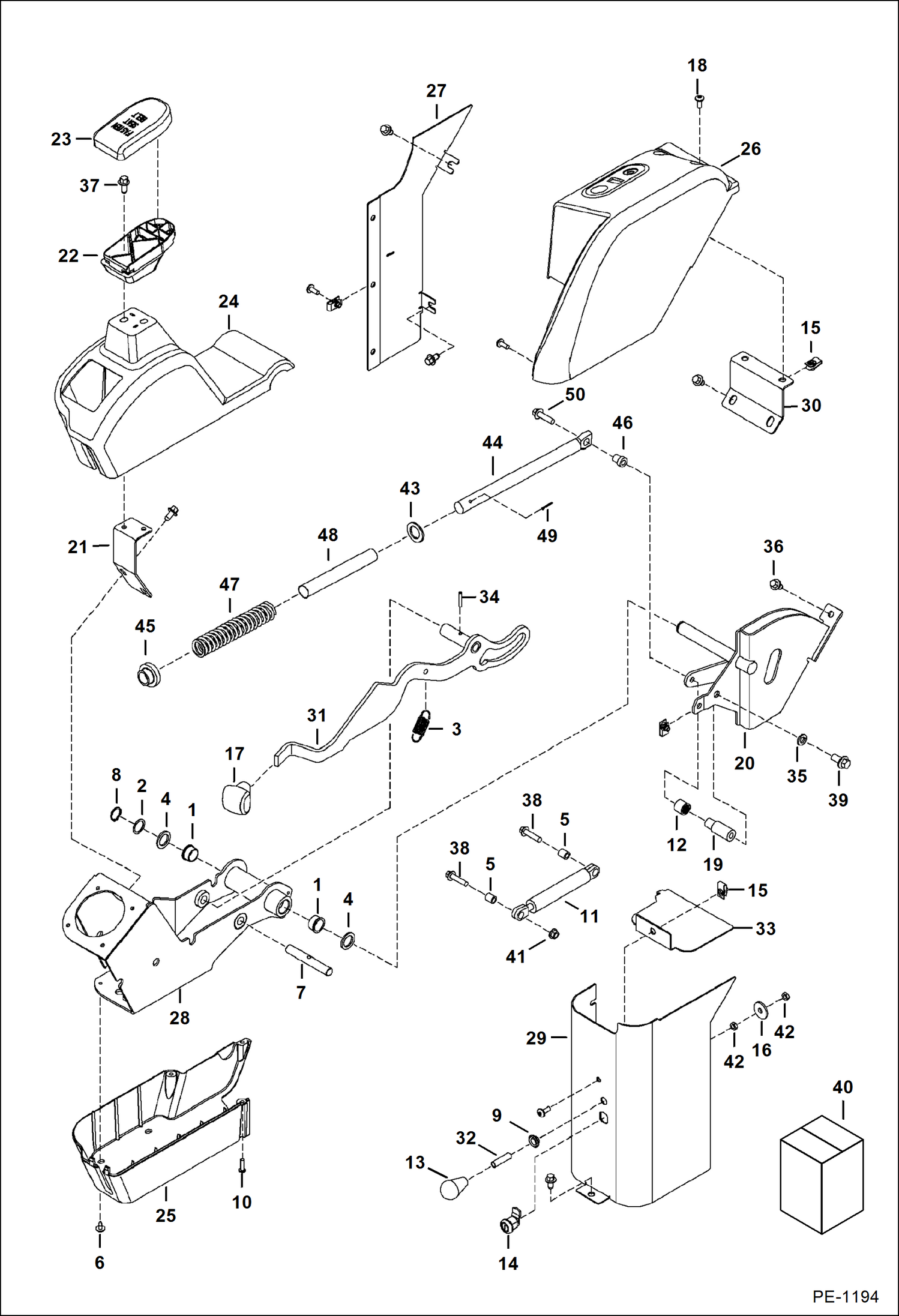

Запчасти Bobcat 337 L.H. CONSOLE (S/N 233311165 & Below & 233211146 & Below) CONTROLS

1

6536801

BUSHING

2

6536802

WASHER

3

6563128

SPRING

4

6587481

WASHER

5

6588293

BUSHING

6

6589675

SCREW

7

6597977

PIN

8

6651530

SNAP RING retaining

9

6660975

GROMMET

10

6669224

BOLT tapping

11

6670863

SPRING gas

12

6671965

BEARING

13

6672326

COVER handle - for rear door

14

6675723

LOCK W/nuts, W/O keys

15

6676026

NUT clip

16

6701174

WASHER flat

17

6803199

HANDLE

18

6803202

SCREW

19

6803225

SPACER

20

6806255

MOUNT

21

6807362

SUPPORT

22

6807982

MOUNT shell

23

6807983

COVER armrest

24

7177242

COVER, CONSOLE LH - upper - Was 6807984 - A

25

6807985

COVER LH - lower

26

6807989

CONSOLE rear - L.H.

27

6807991

COVER

28

CONSOLE NLA - Use W/gas spring - Order 6809293, 6810456, 6808840, 6810454, 15EM00160B, 13JM20025B, 6810455, 29CM00835B, 6808749, 5EM00100B & 6651530 - Was 6808028 - A

28

6809293

CONSOLE Use W/mechanical spring

29

6808124

COVER lower - L.H.

30

6808129

BRACKET

31

6809680

HANDLE

32

6808419

SPACER tube

33

6808435

SHIELD angle

34

14J1816

PIN ROLL straight

35

6EM100

WASHER spring lock

36

26GM8016

SCREW

37

26GM8020

SCREW

38

29CM830

CAPSCREW

39

29CM1020

BOLT

40

6811226

KIT See Illustration CONSOLE SPRING KIT/ MS1164 Console - Use to convert console W/gas spring to mechanical spring

41

43DM8

NUT

42

7D4

NUT

43

15EM200

WASHERS flat

43

15EM160

WASHERS

44

SHAFT NLA - order 6810455 , Ref. 46 - 48 & 15EM00160B - Was 6808167 - A

44

6810455

SHAFT

45

BUSHING NLA - Was 6808369 - A

45

6810456

BUSHING order 6810456 , Ref. 44, 48 & 15EM00160B

46

6808749

BUSHING

47

6808840

SPRING

48

SPACER NLA - order 6810454 , Ref. 44, 46 & 15EM00160B - Was 6809325 - A

48

6810454

TUBE

49

13JM20025

COTTERPIN cotter

50

29CM835

BOLT
