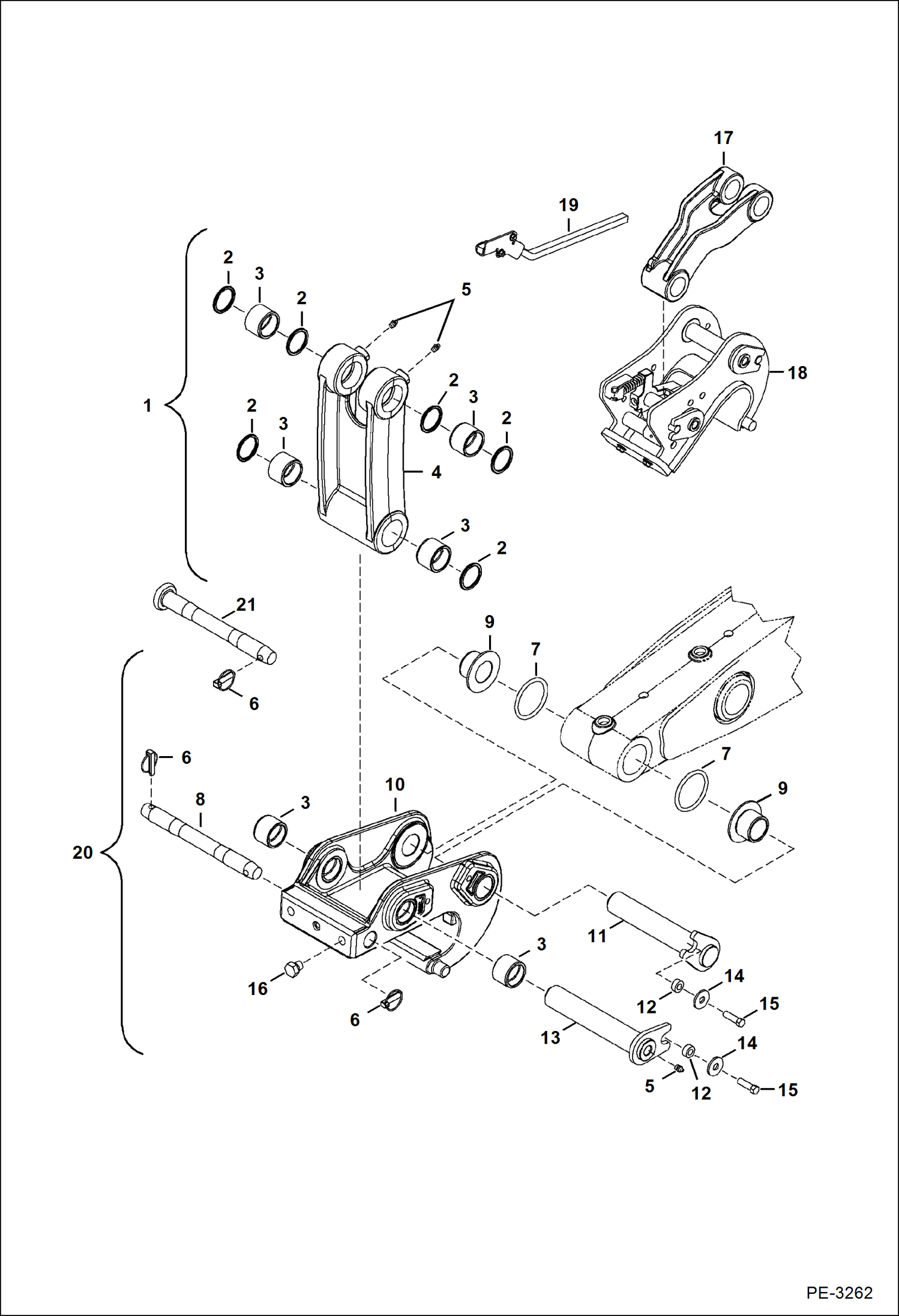

Запчасти Bobcat 337 BUCKET LINK & X-CHANGE WORK EQUIPMENT

1

6805281

LINK, BUCKET MACHINED ASSY assy - Ref. 2-5

2

6669287

SEAL

3

6802703

BUSHING, PRESS FIT

4

LINK NLA - Order Ref 1

5

10H25

FITTING, GREASE 5

6

6560382

PIN, LOCK

7

6674145

O-RING

8

7137214

PIN

9

6805579

BUSHING

10

6813355

X-CHANGE Pin-On

11

6813401

PIN

12

6816368

SPACER

13

6817303

PIN

14

17EM120

WASHER

15

1CM1235

BOLT

16

24K6

FITTING

17

6805278

LINK See Illustration X-CHANGE KIT/ TS1824

18

X-CHANGE See Illustration X-CHANGE KIT/ TS1824

19

6807074

LEVER release - Was 6803510 - A

20

X-CHANGE See Illustration X-CHANGE KIT/ PE1996 - kit

21

PIN NLA - Order 7137214 pin & (2) of 6560382 lock rings - Was 6734239 - A
