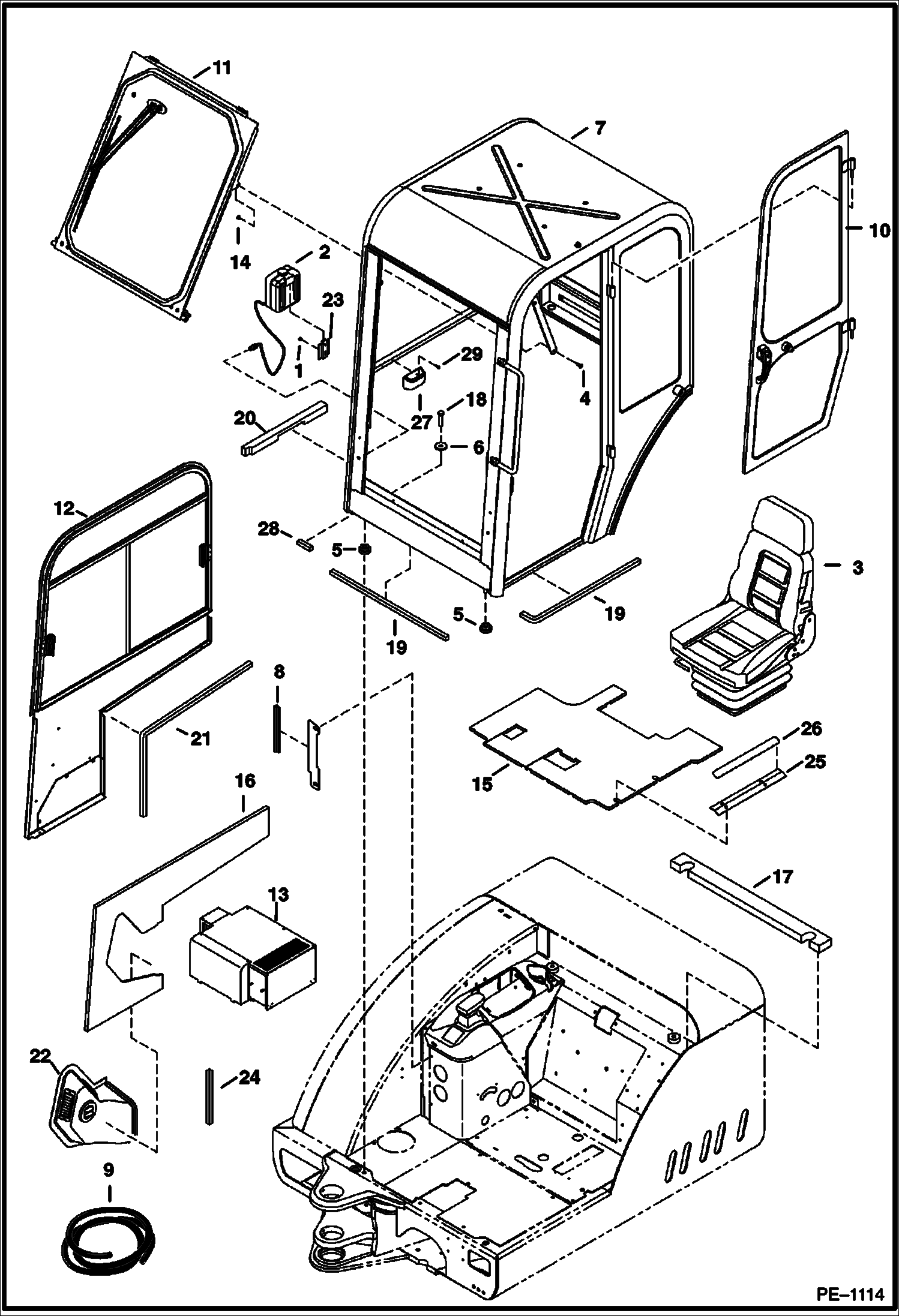

Запчасти Bobcat 337 OPERATOR CAB MAIN FRAME

1

6589675

SCREW

2

WASHER KIT NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

2

6691499

TANK ASSY includes 6664554 pump

2

6664554

PUMP, WIPER WASHER

2

HOSE NLA - Order 5' of 6708310 bulk hose - Was 6664556 - A

2

6666767

NOZZLE Was 6664555 - A

3

SEAT See Illustration SEAT/ E2458

4

6800857

BOLT

5

7001052

MOUNT, ENG Was 6804026 - A

6

6805244

WASHER

7

6805882

CAB W/A

8

SEAL NLA - use 9.5'' of Ref. 9

9

6675732

SEAL bulk - sold per foot

10

DOOR See Illustration OPERATOR CAB/ PE1005

11

WINDOW See Illustration OPERATOR CAB/ D2320 - front

12

WINDOW See Illustration R.H. CAB PANEL/WINDOW/ PE1563 - panel, R.H.

13

HEATER See Illustration HEATER/AIR CONDITIONER BOX/ PE1218

14

87D5

NUT

15

6808417

MAT floor - cab

15

6809898

MAT floor - cab

16

6808572

INSULATION

17

6809712

SEAL

18

10CM1455

BOLT Was 10CM01460B - A

19

6808577

SEAL

20

6808595

SEAL

21

6808880

SEAL

22

DUCT NLA - assy - order 6810680 & plate 6810395 - Was 6809199 - A

22

DUCT NLA - Order components - Was 6810680 - A

22

6676713

LOUVER

22

6676471

LOUVER round

22

SEAL NLA - use 21'' of Ref. 9

22

57G608

SCREW

22

DUCT NLA - order 6810608 - Was 6808516 - A

23

6664557

BRACKET

24

6809430

INSULATION

25

6807326

ANGLE

26

6807327

SAFETY TREAD

27

6664075

ASH TRAY

28

6809491

SEAL

29

6706517

SCREW
