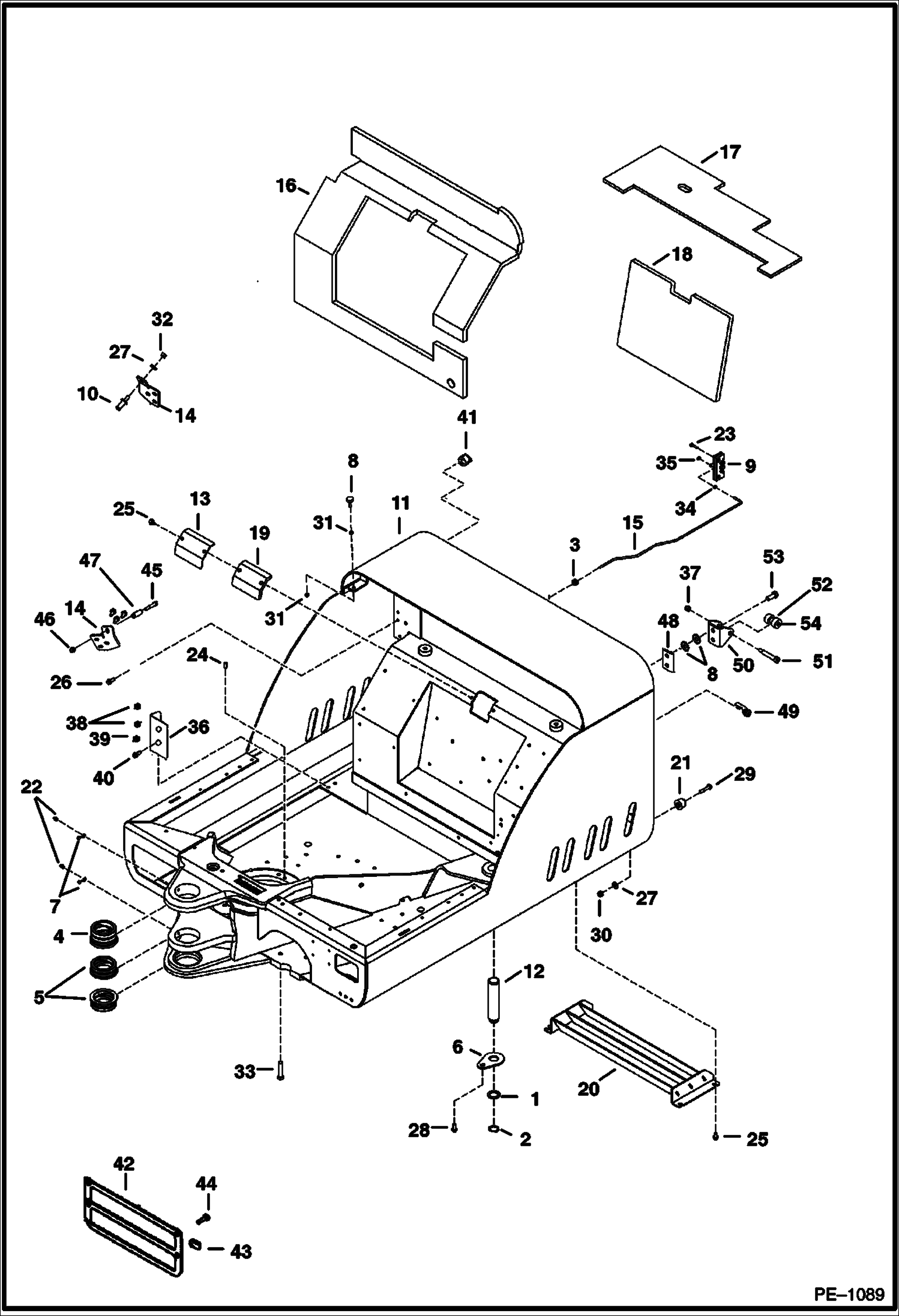

Запчасти Bobcat 337 UPPERSTRUCTURE MAIN FRAME

1

6534111

WASHER

2

6534154

RING

3

6599613

GROMMET

4

6628101

BUSHING

5

6628102

BUSHING

6

6628460

PLATE

7

6652943

COVER grease fitting

8

6655399

BUMPER

9

6675687

LATCH

10

6676341

STRIKER

11

NLA - Order 6810130 & Ref. 36-40 & 48-55, Ref. 1-14 on Ill. PE-1405 & Ref. 29 on Ill. PE-1605 - Was 6806135 - A

11

NLA - Order 6810130, Ref. 48-55 & Ref. 1-14 on Ill. PE-1405 - Was 6806135 - A

11

6810130

UPPERSTRUCTURE

11

6808306

HINGE PLATE

12

6806737

PIN

13

6806873

COVER

14

MOUNT NLA - latch - order 6810655 & Ref. 45-47 - Was 6807180 - A

14

6810655

MOUNT latch

15

6807363

ROD

16

6810250

INSULATION

17

6807894

INSULATION

18

6810249

INSULATION Was 6807899 - A

19

6807904

INSULATION

20

6808051

LOUVER

21

6808365

BUMPER

22

10H25

FITTING, GREASE 5

23

1CM630

BOLT

24

20JM1025

DOWEL PIN

25

26GM10020

BOLT

26

26GM10030

BOLT

27

27E6

WASHER 5

28

29CM1025

BOLT

29

29CM1050

BOLT

30

51DM10

NUT

31

61D5

NUT

32

61D7

NUT

33

55CM1470

SCREW Was 7CM01470B - B

34

7D4

NUT

35

85D4

NUT 5

36

7113354

GROMMET Was 6810122

37

59D6

NUT

38

6810171

GROMMET

39

6810172

GROMMET

40

26GM8020

SCREW

41

6810133

GROMMET

42

6810578

LOUVER

43

6676026

NUT clip

44

6809030

SCREW

45

17C640

BOLT 5

46

55D6

NUT

47

6719550

TUBE

48

6810802

BAR bar

49

6678025

LOCK W/O key - Ignition key 6693241

49

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

49

6693241

KEY 10 ignition - single key W/O ring

50

6809727

CHANNEL

51

38C840

BOLT

52

6809726

ROLLER

53

17C820

BOLT

54

6809734

BUSHING
