Запчасти Bobcat 337 X-CHANGE KIT (Latching) (S/N 515411490 & Above and 2306 11001 & Above) ACCESSORIES & OPTIONS

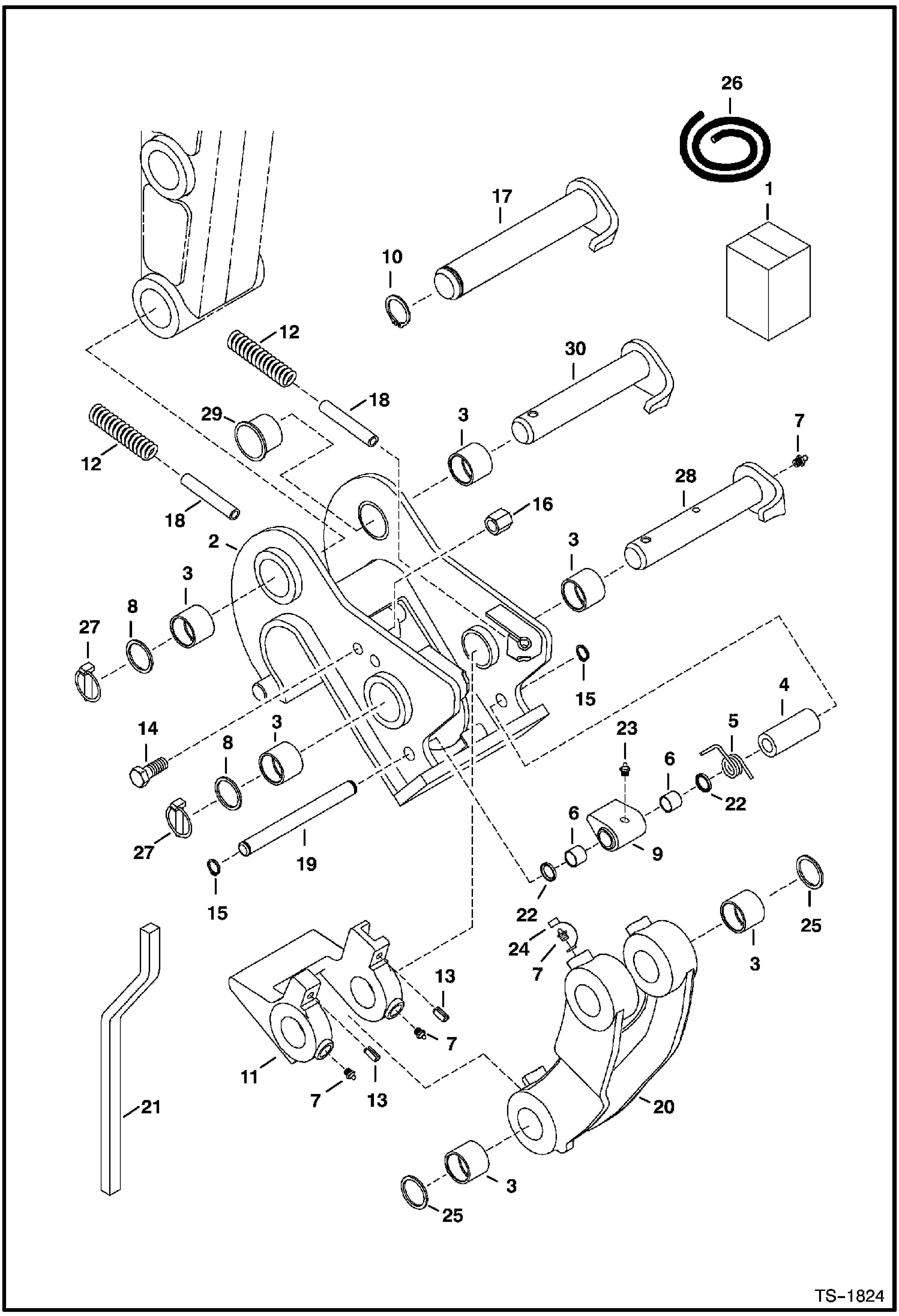

Схема запчастей Bobcat 337 - X-CHANGE KIT (Latching) (S/N 515411490 & Above and 2306 11001 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - Order components

2

MOUNT NLA - Uses (4) Ref. 3 - Order 6810247 - Was 6807344 - A

2

6810247

MOUNT, X-CHANGE Uses (2) Ref. 3 & (2) Ref. 29

3

6802703

BUSHING, PRESS FIT

4

6804525

SPACER

5

6804386

SPRING, TORSION

6

6672019

BUSHING

7

10H25

FITTING, GREASE 5

8

6628547

WASHER

9

6804534

CATCH, X-CHANGE

10

6668787

RING

11

6806587

LATCH, X-CHANGE KIT

12

6804969

SPRING

13

2JM1020

ROLL PIN Spring

14

55CM1435

SCREW Was 7CM01435B - B

15

6662745

SNAP RING

16

6536748

NUT Lock

17

PIN NLA - Use W/Ref. 10 - Order Refs. 27 & 28 or 30

18

HOSE NLA - 4.5'' (114mm) long-Order Ref. 26

19

6803815

PIN

20

6805278

LINK W/Refs. 3, 7, 24 & 25 - not in kit - Was 6804816 - A

21

6807074

LEVER release - Was 6803510 - A

22

6681505

SEAL Was 6672517 - A

23

10H35

FITTING, GREASE 10

24

See Illustration HYDRAULIC CIRCUITRY/ E2390 - Link

24

6652943

COVER grease fitting

25

6669287

SEAL Dust

26

6577822

HOSE bulk - sold per foot

27

6668928

LOCK PIN Retaining

28

6807053

PIN, PIVOT X-CHANGE

29

6805579

BUSHING Use W/6810247 mount only

30

PIN See BTIE-081

Выбрано товаров: 32
