Запчасти Bobcat 337 TRACKS (Steel) ACCESSORIES & OPTIONS

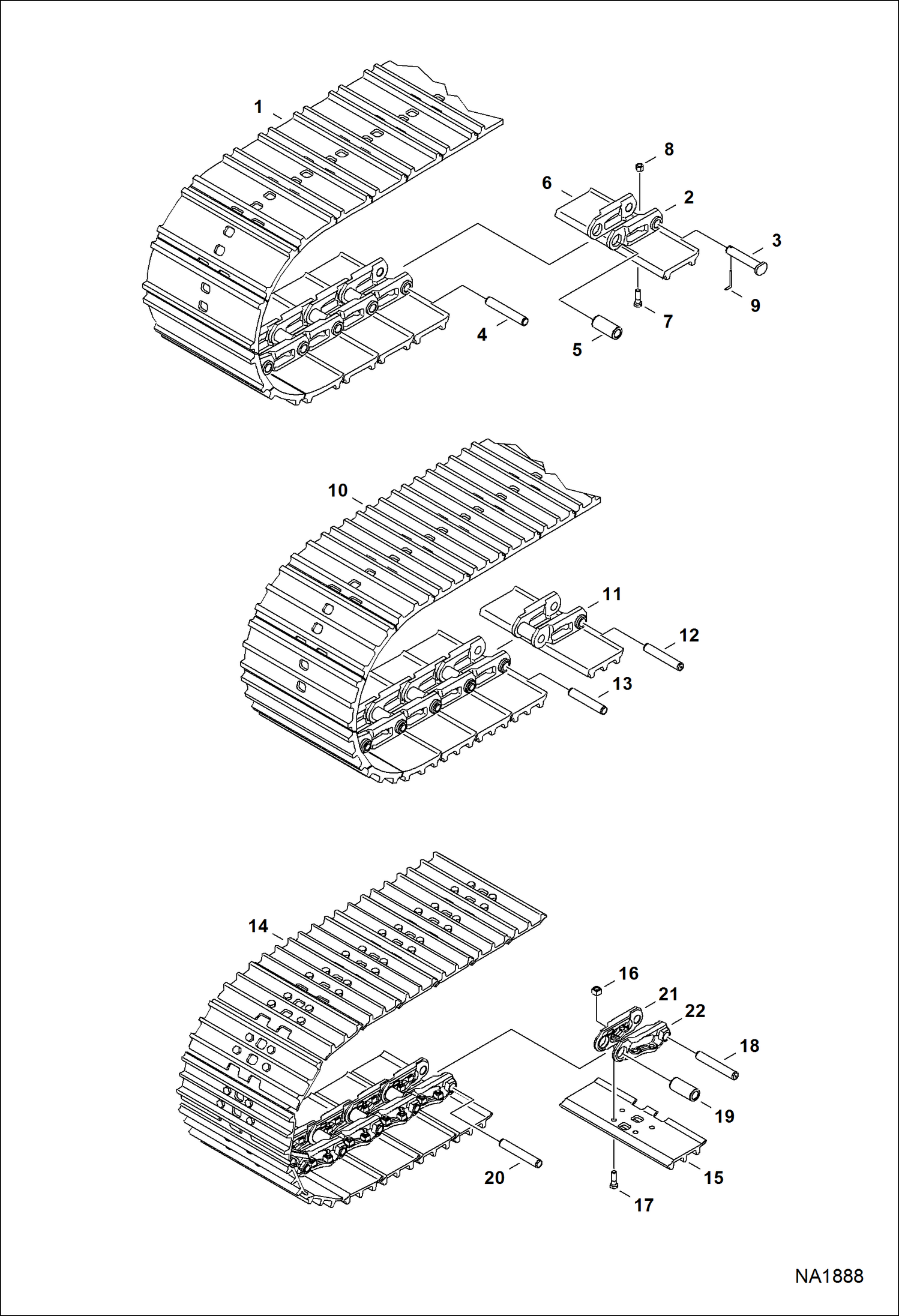

Схема запчастей Bobcat 337 - TRACKS (Steel) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

TRACK ASSY. NLA - steel - W/Ref. 2-9 - P/N is for(1) track - Order Ref. 14 - Was 6669221

2

6676133

LINK RT. - qty. shown for 1 track

2

6676132

LINK LT. - qty. shown for 1 track

2

6676131

LINK Master - RT.

2

6676130

LINK Master - LT.

3

6676719

PIN master - press fit qty. shown for 1 track

4

6676720

PIN regular - press fit qty. shown for 1 track

5

6676722

BUSHING qty. shown for 1 track

6

PLATE NLA - qty. shown for 1 track - Was 6676129 - A

7

6676134

BOLT

8

6676135

NUT

9

6676721

PIN retainer - Was 6676127 - D

10

TRACK NLA - W/Ref. 11-13 - Order Ref. 14 - Was 6677899 - A

11

6678072

LINK Ref. 11-13 - quantity shown for 1 track

12

6678071

PIN regular - quantity shown for 1 track

13

6678070

PIN master - quantity shown for 1 track

14

7009151

TRACK, STEEL Ref. 15-22

15

7012334

PAD, TRACK STEEL quantity shown for 1 track

15

7012334

PAD, TRACK STEEL quantity shown for 1 track

16

7008955

NUT quantity shown for 1 track

17

7008954

BOLT quantity shown for 1 track

18

7012339

PIN, MASTER quantity shown for 1 track

19

7012340

BUSHING quantity shown for 1 track

20

7012341

PIN quantity shown for 1 track

21

7012342

LINK, LH quantity shown for 1 track

22

7012343

LINK, RH quantity shown for 1 track

Выбрано товаров: 26
