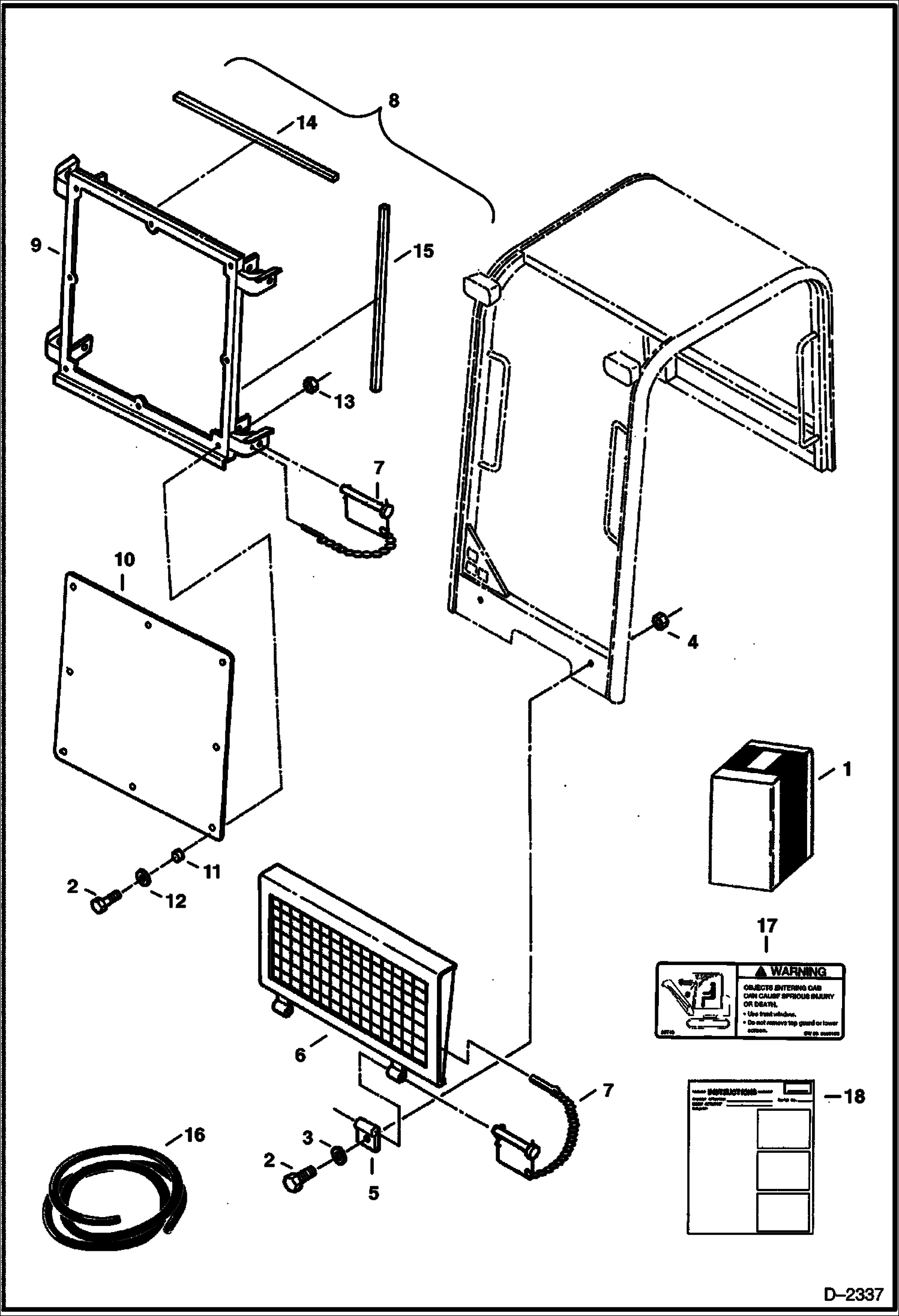

Запчасти Bobcat 337 SPECIAL APPLICATION KIT (Canopy) ACCESSORIES & OPTIONS

1

KIT NLA - Special application -W/Refs. 2-8, 17 & 18 - Was 6666863 - A

2

17C412

BOLT 5

3

25E13

WASHER 5

4

6648390

NUT

5

6667854

HINGE

6

6667853

SCREEN

7

6667852

PIN ASSY

8

6667851

GUARD Top - W/Refs. 2-9 & 15

9

6667861

FRAME

10

6667862

WINDOW Lexan

11

6664090

WASHER

12

6664085

BUSHING

13

61D4

NUT 5

14

SEAL NLA - 36'' (914mm) long - Order Ref.16

15

SEAL NLA - 24''(610mm) long - Order Ref. 16

16

6667860

SEAL Bulk - Sold Per Foot

17

6596163

DECAL

18

6724463

INSTRUCTIONS
