Запчасти Bobcat 337 SECONDARY AUXILARY KIT ACCESSORIES & OPTIONS

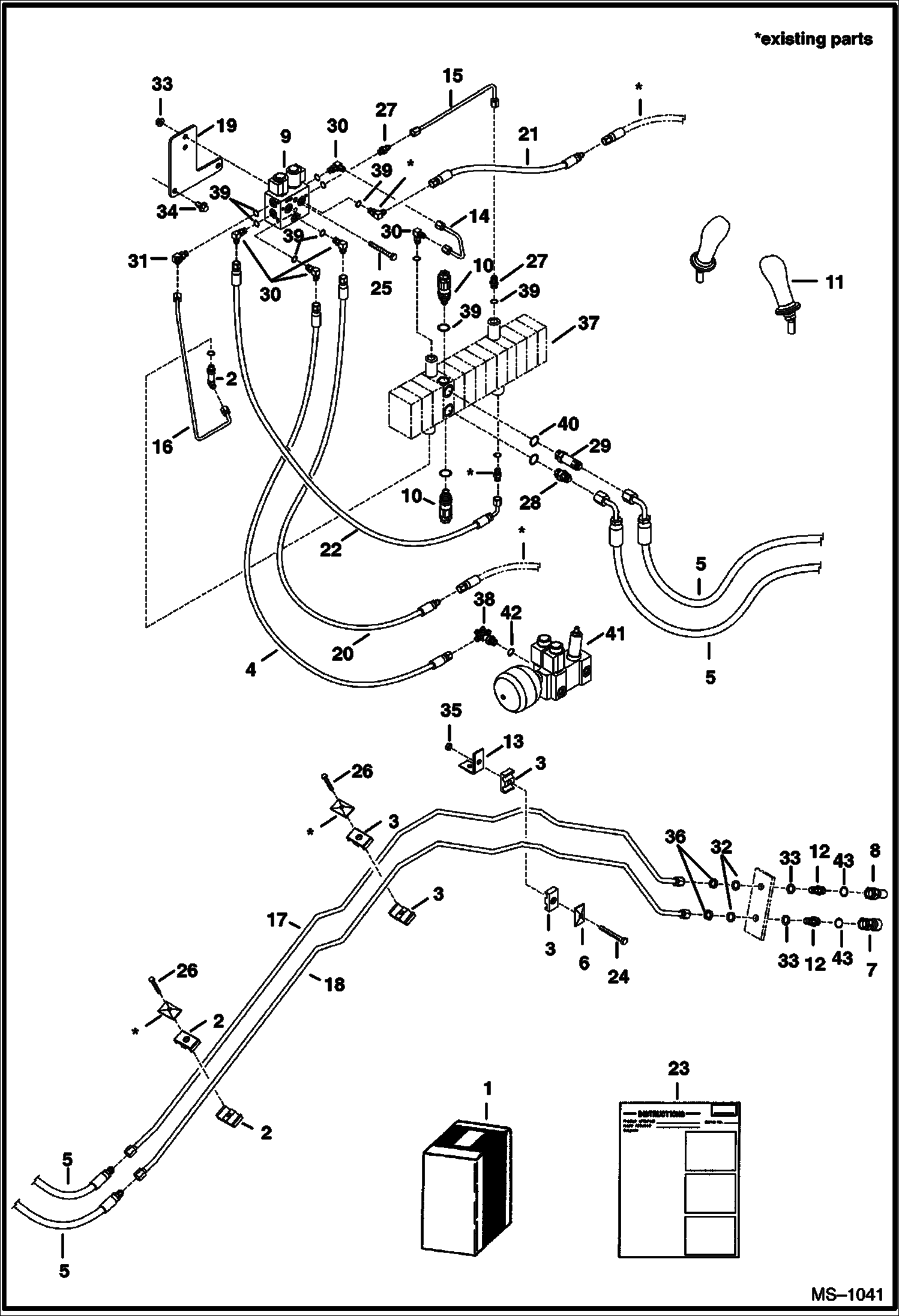

Схема запчастей Bobcat 337 - SECONDARY AUXILARY KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6803007

KIT W/ Ref. 2-36

2

6564153

ELBOW W/Ref. 39

3

6577697

CLAMP Was 6701893 - B

4

6597584

HOSE

5

6628356

HOSE

6

6652521

PLATE

7

6672960

COUPLER, FF FEMALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

9

6670766

VALVE See Illustration SECONDARY AUXILIARY SOLENOID VALVE/ B17182

10

6673756

RELIEF VALVE See Illustration RELIEF VALVE/ C3361

11

6675364

HANDLE Was 6675028 - A

12

6812816

ADAPTER See Illustration L.H. JOYSTICK CONTROLS/ B14601A Was 6715185 - A

13

6802828

ANGLE

14

6802906

TUBELINE

15

6802907

TUBELINE

16

6802908

TUBELINE

17

6802992

TUBELINE

18

6802993

TUBELINE

19

6803003

PLATE

20

6806085

HOSE

21

6806086

HOSE

22

6806087

HOSE

23

6900544

INSTRUCTIONS

24

1CM850

BOLT

25

1CM865

SCREW

26

1CM1080

BOLT

27

15K3

CONNECTOR W/Ref. 39

28

15KB0808

FITTING, HYD CONNECTOR W/Ref. 40 - Was 15KN00006B - A

28

97K8

O-RING flare end

29

16KB0808

FITTING, HYD CONNECTOR Was 16KN00006B - A

29

97K8

O-RING flare end

30

17K3

ELBOW W/Ref. 39

31

18K3

ELBOW W/Ref. 39

32

25E29

WSHR

33

25E31

WASHER

34

26GM10020

BOLT

35

42DM8

NUT

36

86F7

LOCK NUT

37

CONTROL VALVE See Illustration HYDRAULIC CIRCUITRY/ E2393

38

6803031

ADAPTER W/Ref. 42

39

79K4

O RING 10

40

99K8

O-RING

41

VALVE See Illustration ACCUMULATOR VALVE/ B17155 ACCUMULATOR

42

79K6

O RING 10

43

79K12

O RING 10

Выбрано товаров: 45
