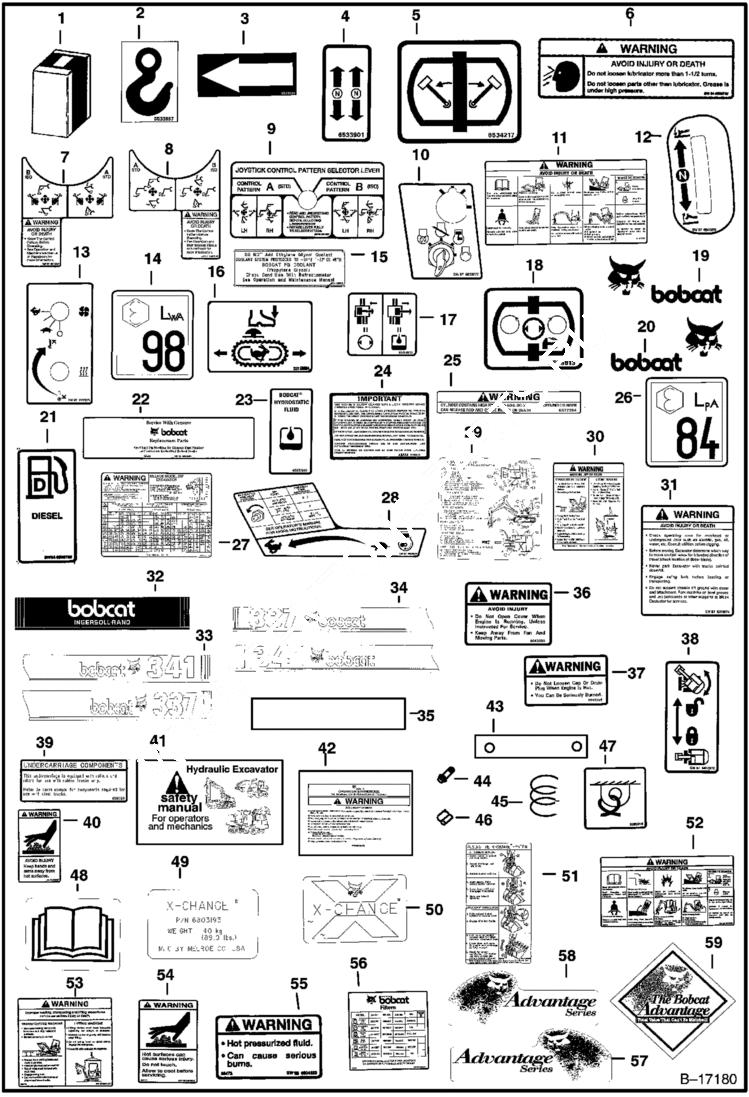

Запчасти Bobcat 337 DECALS ACCESSORIES & OPTIONS

1

6900524

KIT, DECAL Includes Refs. 2-32, 35 - 47 & 48

2

6594897

DECAL Hook

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing Pedal

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

7

6802981

DECAL Control -L.H.

8

6802980

DECAL Control - L.H.

9

6815957

DECAL ISO/STD Pattern - Was 6804276 - B

10

6802977

DECAL Start

11

DECAL NLA - Warning - Order Ref. 52 - Was 6588380 - A

12

6802978

DECAL Blade

13

6802975

DECAL Heater

14

6539686

DECAL Noise warning - 98

15

6708929

DECAL, COOLANT propylene glycol

16

6804116

DECAL Two Speed Travel - Was 6801914 - A

17

6539812

DECAL Valve - aux. selector valve

18

6539813

DECAL Auxiliary pedal

19

6557412

DECAL Bobcat head

20

6557413

DECAL Bobcat head

21

6589739

DECAL Diesel

22

6565200

DECAL, FILTER

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

24

6560573

DECAL spark arrestor

25

6577754

DECAL, WARNING 5 gas spring

26

6579384

DECAL Noise Warning - 84

27

6805854

DECAL Lift Chart 337 - Was 6803260 - A

27

6805271

DECAL Lift Chart 341

28

6802979

DECAL Pre-Heat & Speed

29

6803259

DECAL Service Schedule

30

DECAL NLA - Warning - Order Ref. 53 - Was 6588382 - A

31

DECAL NLA - Warning - Order Ref. 53 - Was 6802974 - A

32

DECAL NLA - Bobcat - engine cover - Was 6802704 - A

33

6802705

DECAL Bobcat - R.H. - 337 - Not in Kit

33

6805019

DECAL bobcat R.H. - 341 - Not in Kit

34

6802706

DECAL Bobcat - L.H. - 337 - Not in Kit

34

6805018

DECAL Bobcat - L.H. - 341 - Not in Kit - Was 6805019 - D

35

6593245

TREAD

36

6643355

DECAL Warning - Not used on later models

37

DECAL NLA - Warning - Order Ref. 55 - Was 6643356 - A

38

6802976

DECAL Swing Lock

39

6589129

DECAL Track-Rubber

40

DECAL NLA - Warning - Order Ref. 54 - Was 6589697 - A

41

6570354

MANUAL Safety

42

6900465

HANDBOOK Operator - English - Was 6596919 - D

43

6589347

STRAP Elastic - for holding the operator handbook

44

29CM812

BOLT For attaching the strap to the cab

45

6558309

WIRE ROPE 46'' (1170mm) long - Bulk Sold Per Foot - Also Order (2) of 6558310 sleeve

46

6558310

SLEEVE

47

6727595

DECAL Was 6595014 - B

48

6707971

DECAL Operators Manual

49

6803604

DECAL X-Change

50

6803760

DECAL X-Change

51

6800269

DECAL X-Change Operation

52

6807776

DECAL warning - Was 6804230 - A

53

6804231

DECAL warning

54

6804232

DECAL warning

55

6804233

DECAL warning

56

DECAL NLA - filters - Was 6805015 - A

57

6718269

DECAL Advantage - L.H.

58

6718270

DECAL Advantage - R.H.

59

6718275

DECAL Advantage - Logo
