Запчасти Bobcat 337 FUEL SYSTEM POWER UNIT

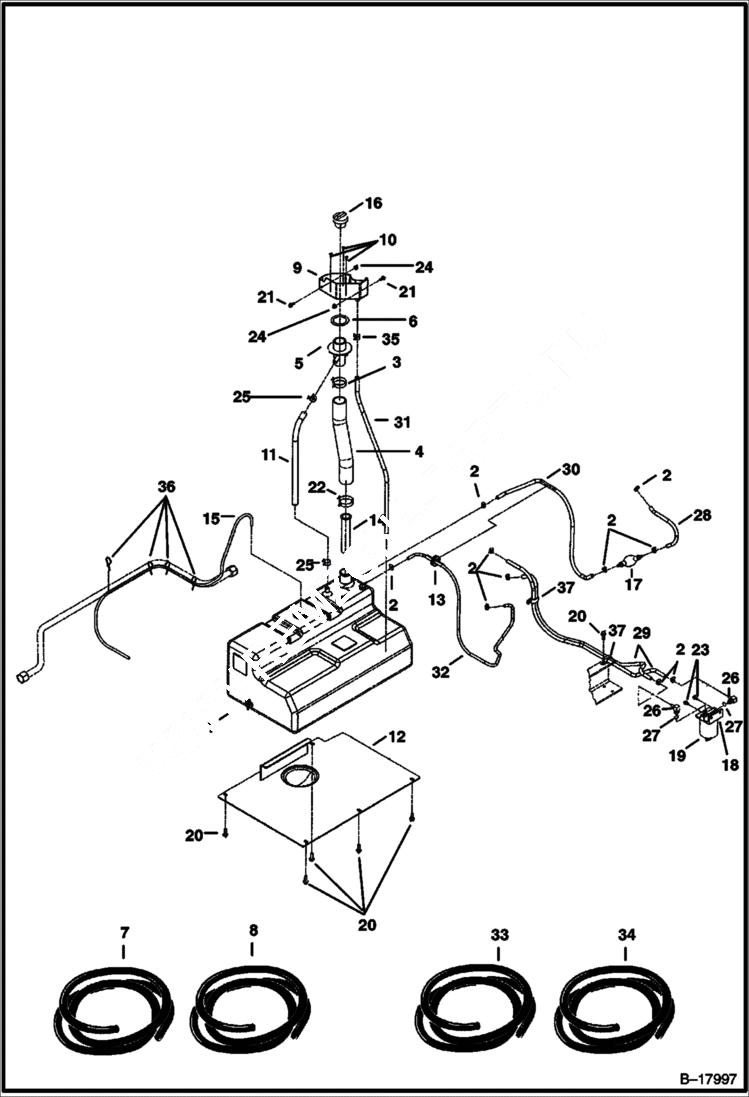

Схема запчастей Bobcat 337 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

6802511

TANK ASSY See Illustration FUEL TANK/ B17999 - Fuel

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

5HM55

CLAMP

4

6800068

HOSE

5

6701449

FILLER TUBE

6

6802558

GASKET

7

6578169

HOSE bulk - sold per foot - 0.19'' ID

8

6586251

HOSE Bulk - Sold Per Foot

9

6800803

SHIELD Fuel Fill

10

6706517

SCREW

11

HOSE NLA - 19'' (9485mm) - Order Ref. 34

12

6800100

PLATE

13

731972

GROMMET

14

7120881

SCREEN, FILLER Was 6569219 - A

15

6588351

HARNESS Fuel Sensor

16

6665423

CAP Fuel

17

6667170

PUMP 193 mm (7.6'') long

18

6667353

FILTER ASSY Assy - W/Ref. 19

18

6658180

PLUG, BLEED

19

6667352

FILTER, FUEL W/SEPARATOR 12

20

26GM10030

BOLT

21

29CM820

SCREW Was 29CM00830B - B

22

5HM58

CLAMP

23

26GM8020

SCREW

24

51DM8

NUT

25

5HM23

CLAMP

26

6657083

ELBOW W/Ref. 27

27

79K5

O RING 10

28

HOSE NLA - 9 1/2'' (240mm) - Order Ref. 33

29

HOSE NLA - 44'' (1118mm) - Order Ref. 33

30

HOSE NLA - 32'' (820mm) - Order Ref. 33

31

HOSE NLA - 31'' (790mm) - Order Ref. 8

32

HOSE NLA - 47'' (1194mm) - Order Ref. 7

33

6577822

HOSE bulk - sold per foot

34

6578172

HOSE bulk - sold per foot

35

42HS10

CLAMP Was 5HM00017B - D

36

6610510

TIE

37

31H31

CLIP

Выбрано товаров: 38
