Запчасти Bobcat 337 FUEL TANK POWER UNIT

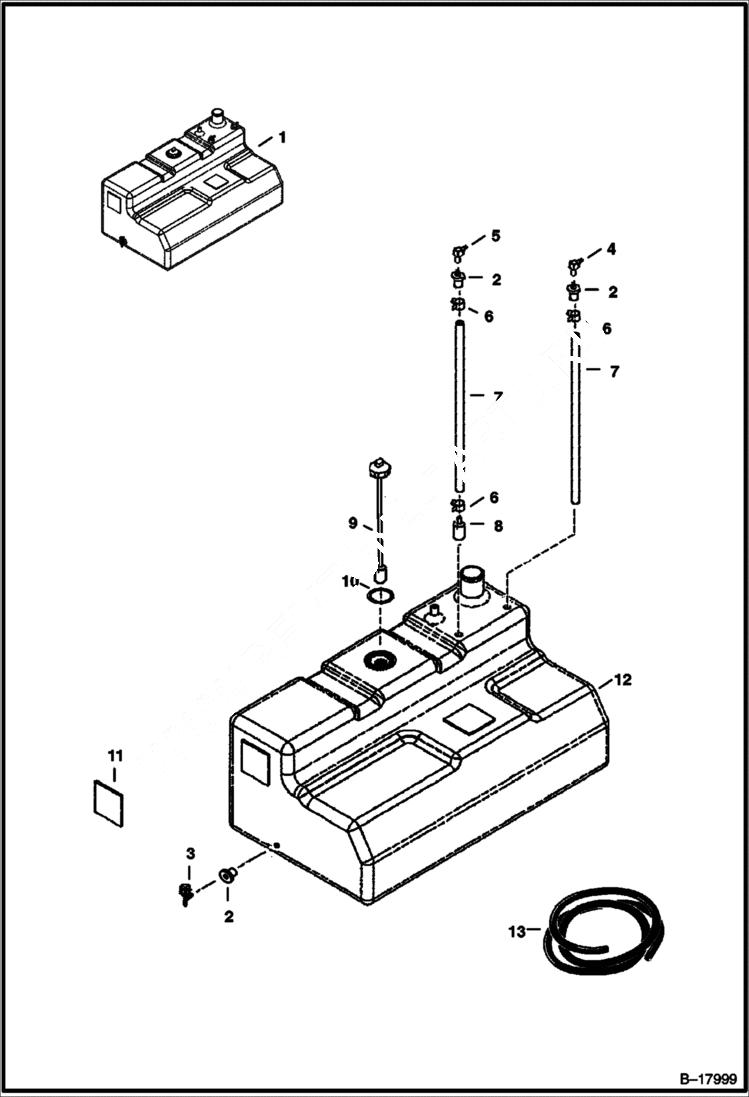

Схема запчастей Bobcat 337 - FUEL TANK POWER UNIT

Артикул

Название

Примечание

Количество

1

TANK ASSY NLA - Fuel - W/Refs. 2-11 - Order 6800067 - Was 6802511 - A

1

6800067

TANK fuel

2

6553411

BUSHING 0.38'' ID

3

6663951

VALVE Drain

4

7101291

ELBOW Was 6598908 - A

5

6666302

FITTING, ELBOW barbed - Was 7126672 - B

6

6661213

RING, COMPRESSION

7

HOSE NLA - 12 1/2'' (320mm) - Order Ref. 8

8

6650239

SCREEN, FUEL PICKUP Fuel Pick up

9

7179837

SENSOR FUEL W/Ref. 10 - Was 6680436 - A

10

79K14

O RING 10

11

6578278

PAD Rubber

12

TANK NLA - Fuel - Order Ref. 1

13

6569752

HOSE BULK/FT bulk - sold per foot

Выбрано товаров: 14
