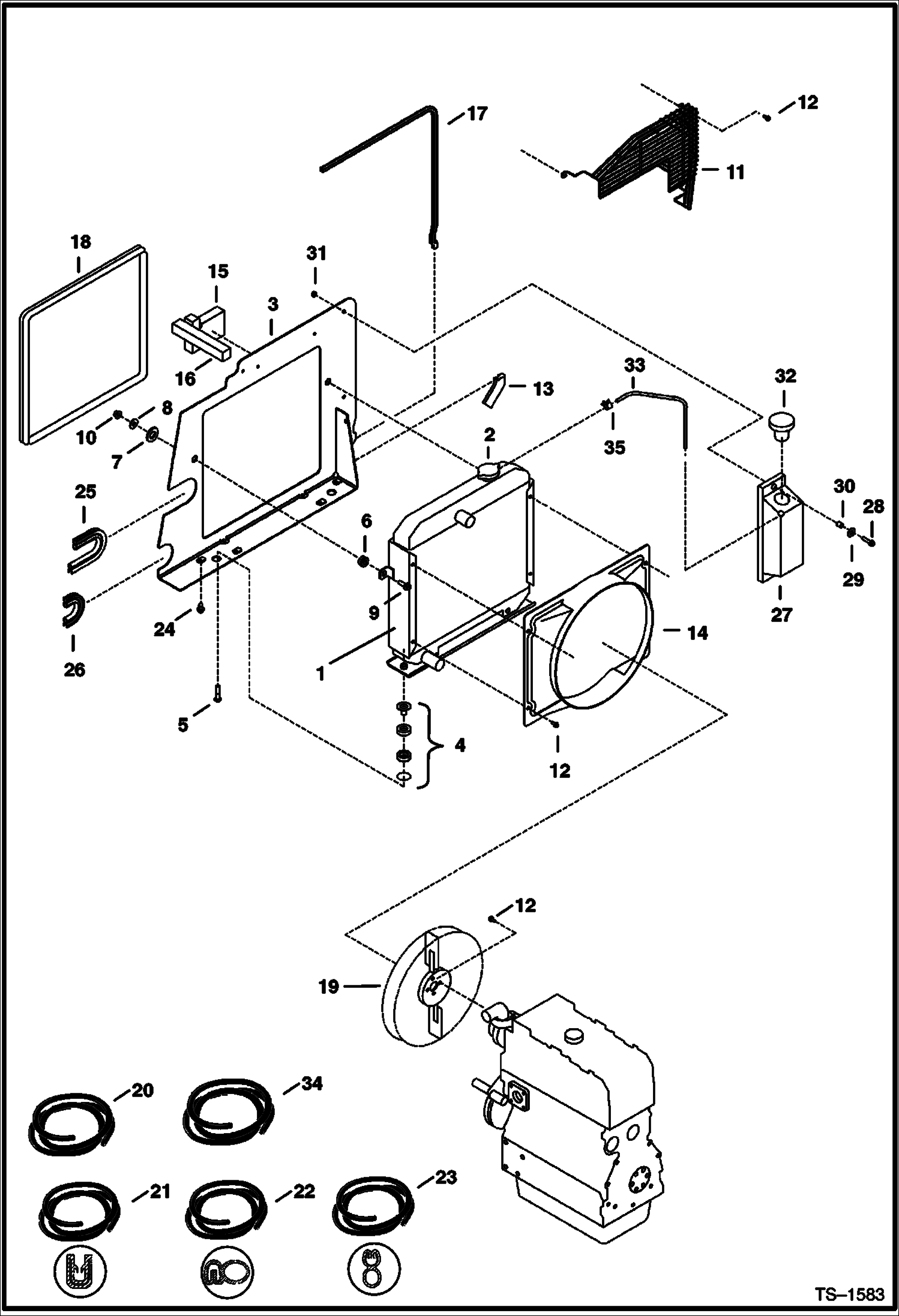

Запчасти Bobcat 337 RADIATOR & MOUNTING POWER UNIT

1

6670733

RADIATOR

2

6646678

CAP Radiator

3

6800220

MOUNT Radiator

4

6653763

MOUNT

5

1CM1045

BOLT

6

568276

DAMPNER

7

27E12

WASHER

8

17EM100

WASHER

9

29CM1040

BOLT

10

51DM10

NUT Was 42DM00010B - A

11

6628107

GUARD Fan

12

29CM616

BOLT

13

SEAL NLA - 3.0'' (76mm) long - Order Ref. 23

14

6664450

SHROUD

15

6589121

INSULATION

16

INSULATION NLA - 8'' (203mm) long - Order Ref. 20

17

SEAL NLA - 40'' (1000mm) long - Order Ref.21

18

SEAL NLA - 72'' (1823mm) long - Order Ref. 22

19

6678962

FAN 4 blade - Was 6664455 - A

20

6554274

INSULATION Bulk - Sold Per Foot

21

6654139

MOULDING bulk - sold per foot

22

6555351

SEAL bulk - sold per foot

23

6513152

SEAL bulk - sold per foot

24

26GM8016

SCREW

25

SEAL NLA - 5'' (130mm) Long - Order Ref. 23

26

SEAL NLA - 6'' (160mm) Long - Order Ref. 33

27

6593012

TANK Overflow

28

29CM835

BOLT

29

25E18

WASHER

30

6593013

SPACER

31

51DM8

NUT

32

6702797

CAP Overflow Tank - Was 6702979 - D

33

HOSE NLA - 18'' (457mm) - Order Ref. 34

34

6577822

HOSE bulk - sold per foot

35

5HM14

CLAMP Hose
