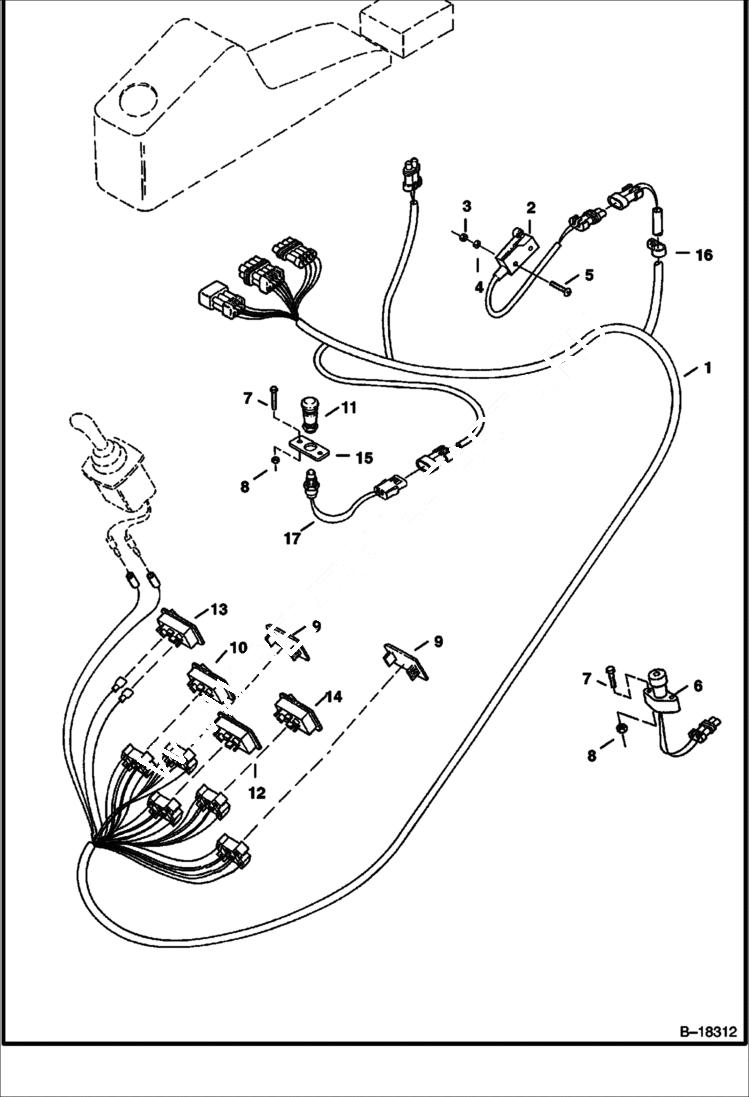

Запчасти Bobcat 337 ELECTRICAL SYSTEMS (Left Hand Console) ELECTRICAL SYSTEM

1

6802683

HARNESS L.H. Console

2

6661150

SWITCH, ROLLER MICRO Micro - Console Lock-out

3

12D6

NUT 10

4

12E6

WASHER

5

85G616

SCREW 10

6

See Illustration TWO SPEED SWITCH KIT/ B17164 - NLA - Two Speed - Order Kit 6805734 - Was 6667705 - A

7

1CM625

BOLT

8

1DM6

NUT

9

6665314

PLUG switch hole - Was 6719038 - A

10

6665315

SWITCH Light

11

6673974

ACTUATOR Two speed

12

6671113

SWITCH if equipped - wiper/washer

13

6671112

SWITCH if equipped - breaker

14

6668816

SWITCH if equipped - beacon light

15

6804965

BRACKET Use in Kit 6805734 only

16

30H50

CLIP Was 31H000042B - B

17

6673973

SWITCH Two speed
