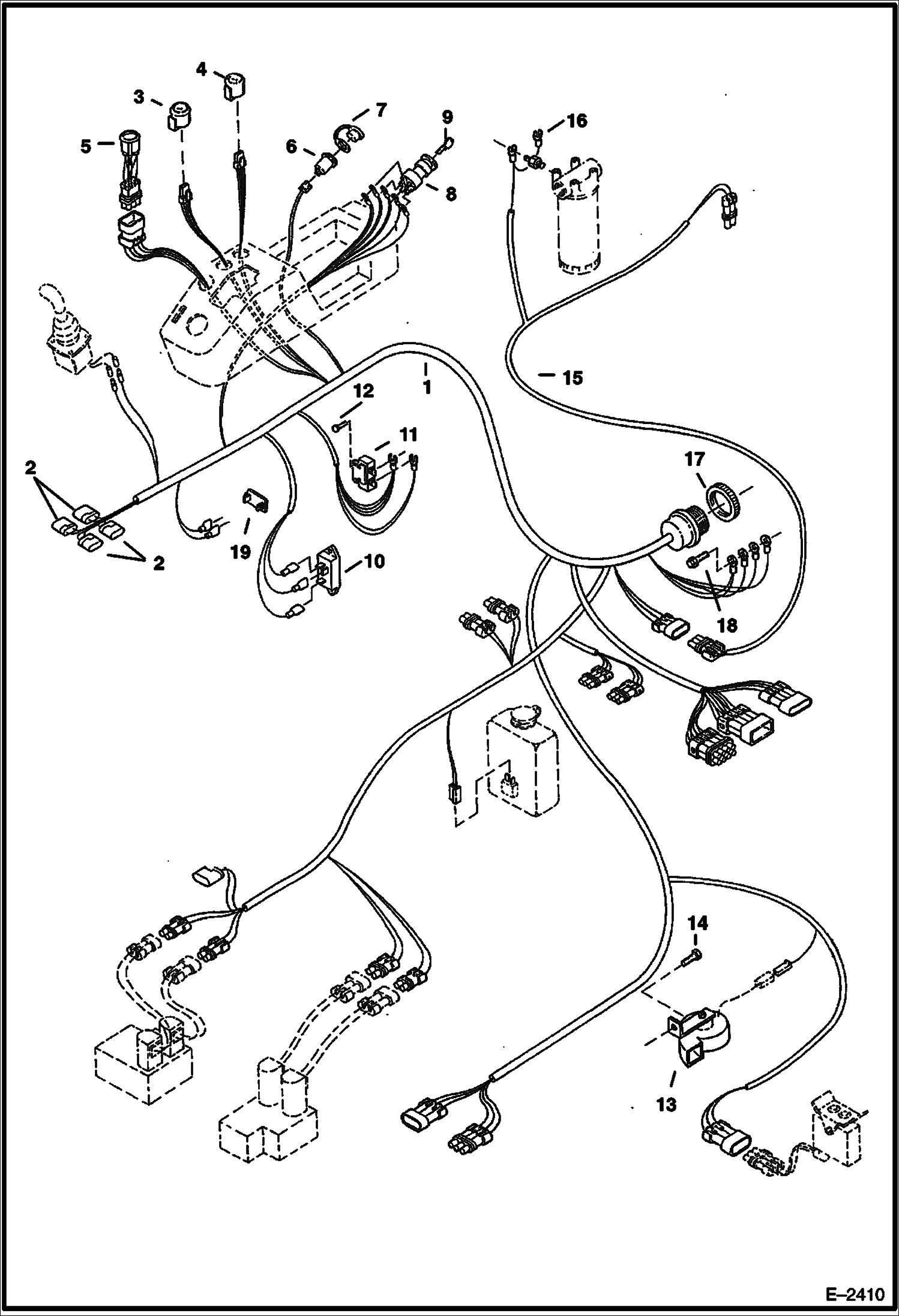

Запчасти Bobcat 337 ELECTRICAL SYSTEMS (Right Hand Console) ELECTRICAL SYSTEM

1

6802727

HARNESS R.H. Console - W/Ref. 2

2

6567537

DIODE

3

6671525

GAUGE See BTI399 Fuel

4

6671524

GAUGE See BTI399 Water Temperature

5

6671526

GAUGE See BTI399 Warning Lights

6

6664223

OUTLET Electrical Accessory

7

6664224

CAP Electrical Outlet

8

6666548

SWITCH Key Start

9

6587458

KEY

10

6673122

TIMER Start-up check, fuel level, oil pressure & water temperature - Was 6668736 - A

11

6644960

BUZZER Warning - activates with water temperature & oil pressure lights

12

6589675

SCREW

13

6665105

ALARM

14

26GM8016

SCREW

15

6802802

HARNESS Fuel level & Hyd Press/Temp.

16

6632053

SWITCH Hydraulic pressure

17

6664972

NUT Harness

18

26GM10020

BOLT

19

6665314

PLUG switch hole - Was 6719038 - A
