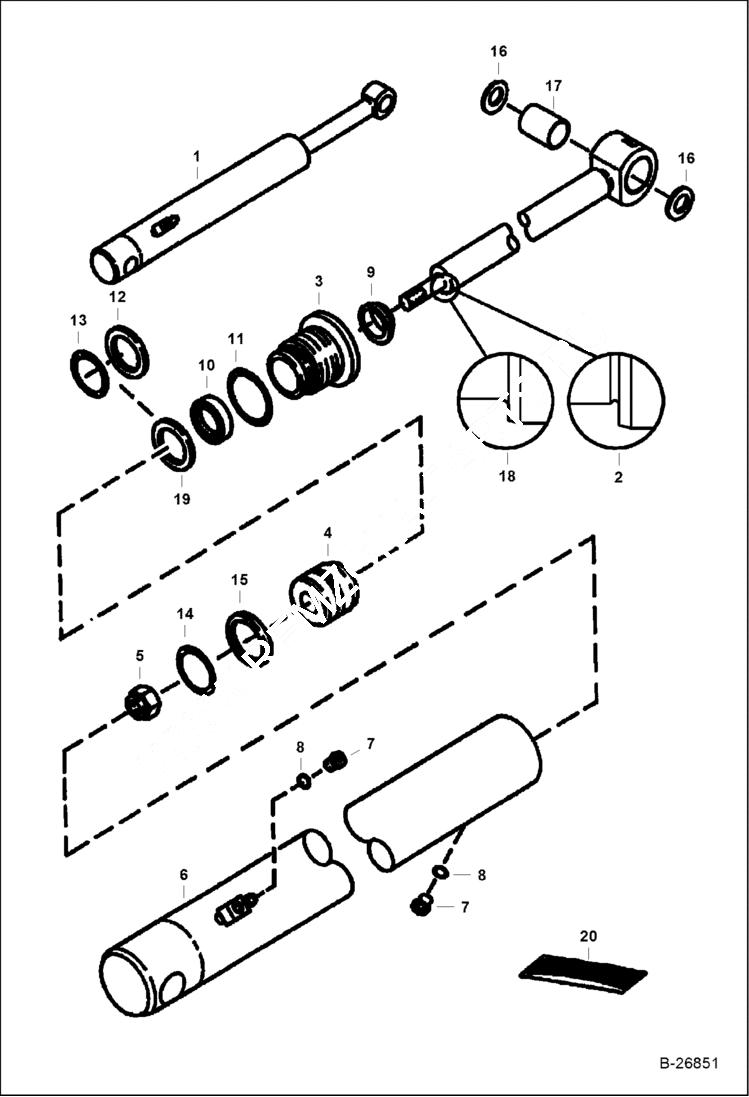

Запчасти Bobcat 337 BUCKET CYLINDER (S/N 515411921-11923, 11926 & Above and 230611001 & Above) HYDRAULIC SYSTEM

1

CYLINDER, BUCKET NLA - W/Ref. 2-15 - Order 7149983 - Also Order Ref. 16 & 17 - Was 6811927 - A

1

7149983

CYLINDER W/Ref. 3-15 & 18

2

ROD NLA - Order 7146681 rod & 7147314 piston - Also Order (2) Refs. 16 & 17 - Was 6812461 - A

3

6537294

HEAD .6'' of threads - Use W/NLA housing

3

6810626

HEAD 1.1'' of threads - Use W/housing 6810623

4

7147314

PISTON Was 6809560 - A

5

6810540

NUT Was 92D20 - A

6

HOUSING NLA - W/Ref. 7 & 8 - Order Ref. 1 - Was 6805084 - A

6

6810623

HOUSING W/Ref. 7 & 8

7

90KV5

PLUG W/Ref. 8 - tapered boss face - allen socket head

7

6812171

PLUG W/Ref. 8 - flat boss face - hex head

8

99K6

O RING tapered boss face

8

75K6

O-RING

9

6686998

WIPER, ROD CYL Was 6666545 - A

10

6667328

SEAL rod

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG piston

16

6669287

SEAL dust

17

6802371

BUSHING wear

18

7146681

ROD Also Order Ref. 16 & 17

19

7008354

SEAL, QUAD

20

7137966

SEAL KIT Ref. 5, 9-11, 14, 15, & 19 - Was 6810470 - A
