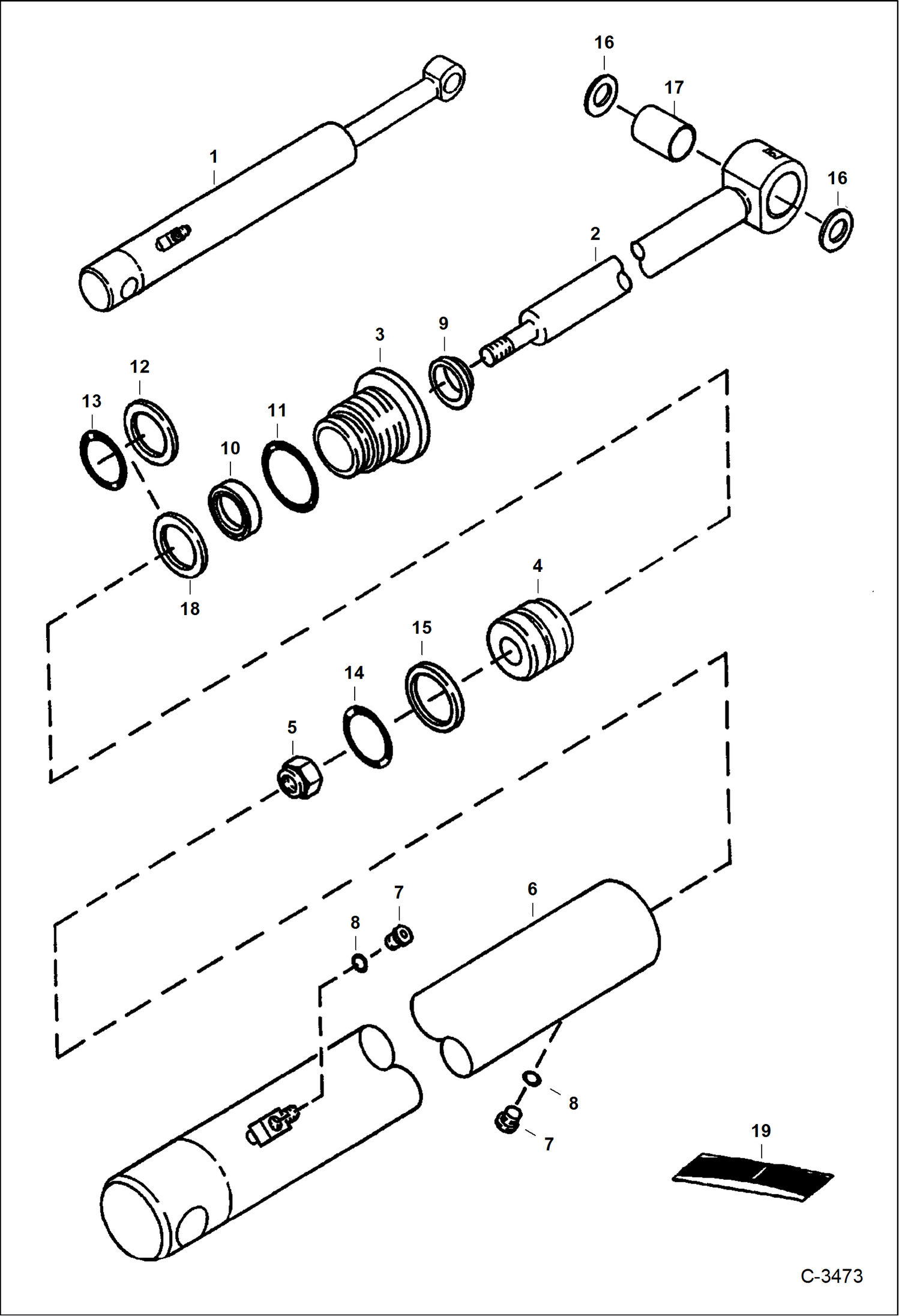

Запчасти Bobcat 337 BUCKET CYLINDER (S/N 515411001 - 515411925) HYDRAULIC SYSTEM

1

6597844

CYLINDER Ref. 2-15 - Also Order (2) Refs.

2

6628518

ROD Also Order (2) Refs. 16 & 17

3

6537294

HEAD

4

6537290

PISTON

5

92D20

NUT

6

6628483

HOUSING W/Ref. 7 & 8

7

47K5

PLUG W/Ref. 8

8

79K6

O RING 10

9

6686998

WIPER, ROD CYL Was 6666545 - A

10

6667328

SEAL Was 6538277 - A

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG piston

16

6669287

SEAL dust

17

6802371

BUSHING

18

7008354

SEAL, QUAD

19

7137966

SEAL KIT W/Ref. 5, 9-11, 14, 15, & 18 - Was 6810470 - A
