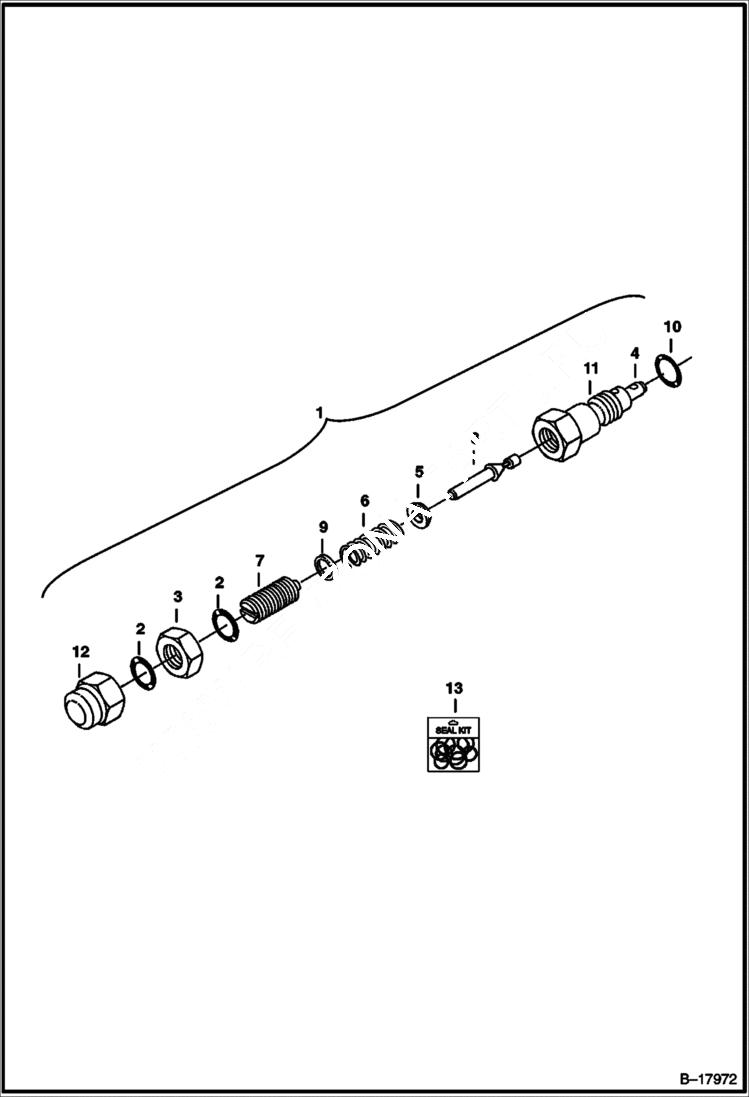

Запчасти Bobcat 337 RELIEF VALVE HYDRAULIC SYSTEM

1

6674672

RELIEF VALVE Ref. 2 - 12

2

O-RING NSS - Order Ref. 13

3

6665460

NUT

4

PLUG NSS - Order Ref. 1

5

RETAINER NSS - Order Ref. 1

6

SPRING NSS - Order Ref. 13

7

SCREW NSS - Order Ref. 1

8

POPPET NSS - Order Ref. 1

9

SHIM NSS - Order Ref. 1

10

SEAL NSS - Order Ref. 13

11

HOUSING NSS - Order Ref. 1

12

6665461

NUT

13

6675279

SEAL KIT
