VALVE SECTION (Blade)

Запчасти Bobcat 337 VALVE SECTION (Blade) HYDRAULIC SYSTEM

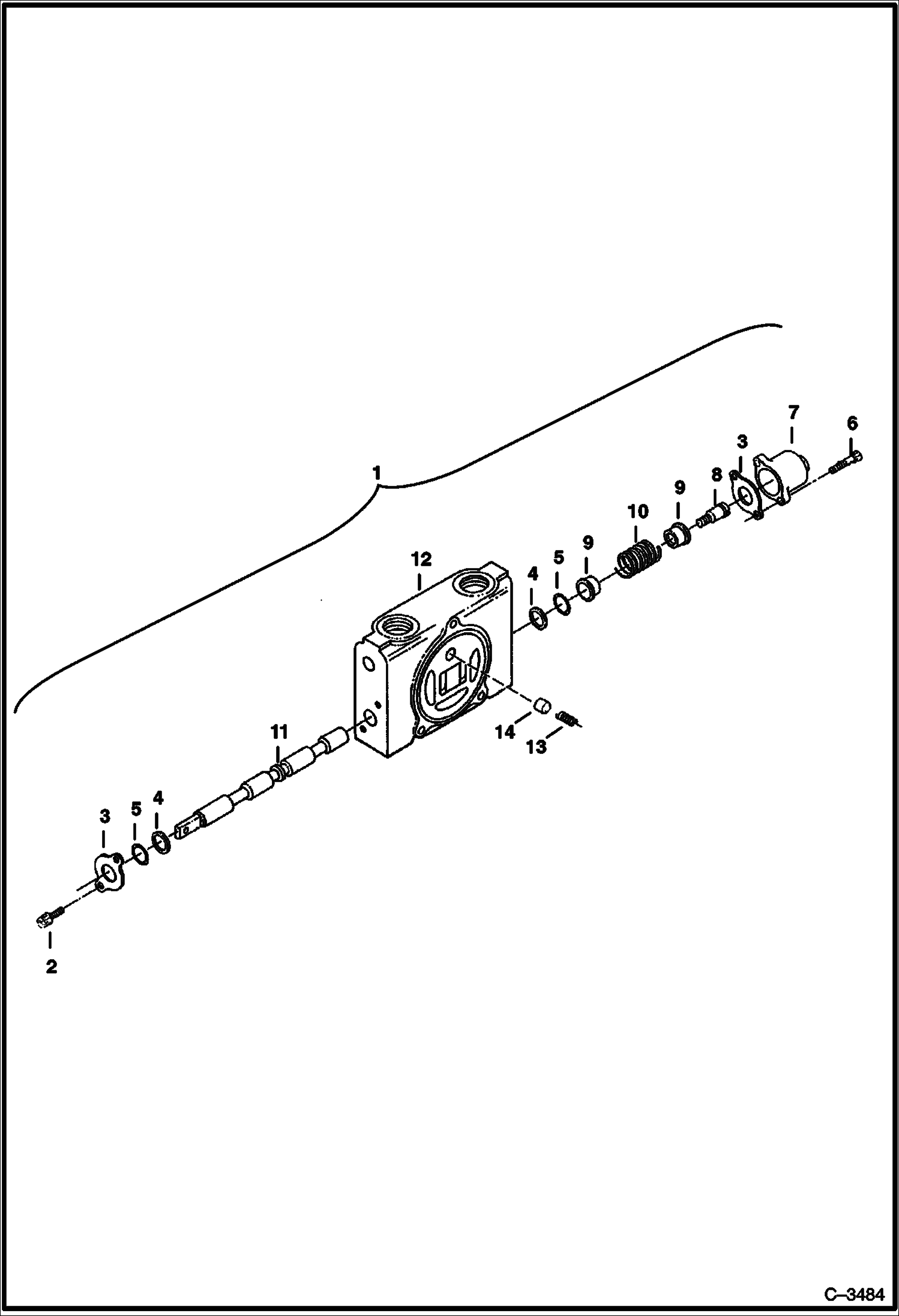

Схема запчастей Bobcat 337 - VALVE SECTION (Blade) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6671681

VALVE Section - Blade - W/Ref. 2-14

2

6671684

SCREW

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW

7

948191

CAPSCREW

8

6665434

BOLT

9

948017

SEAT Spring

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6630966

SPRING

14

6630965

POPPET
