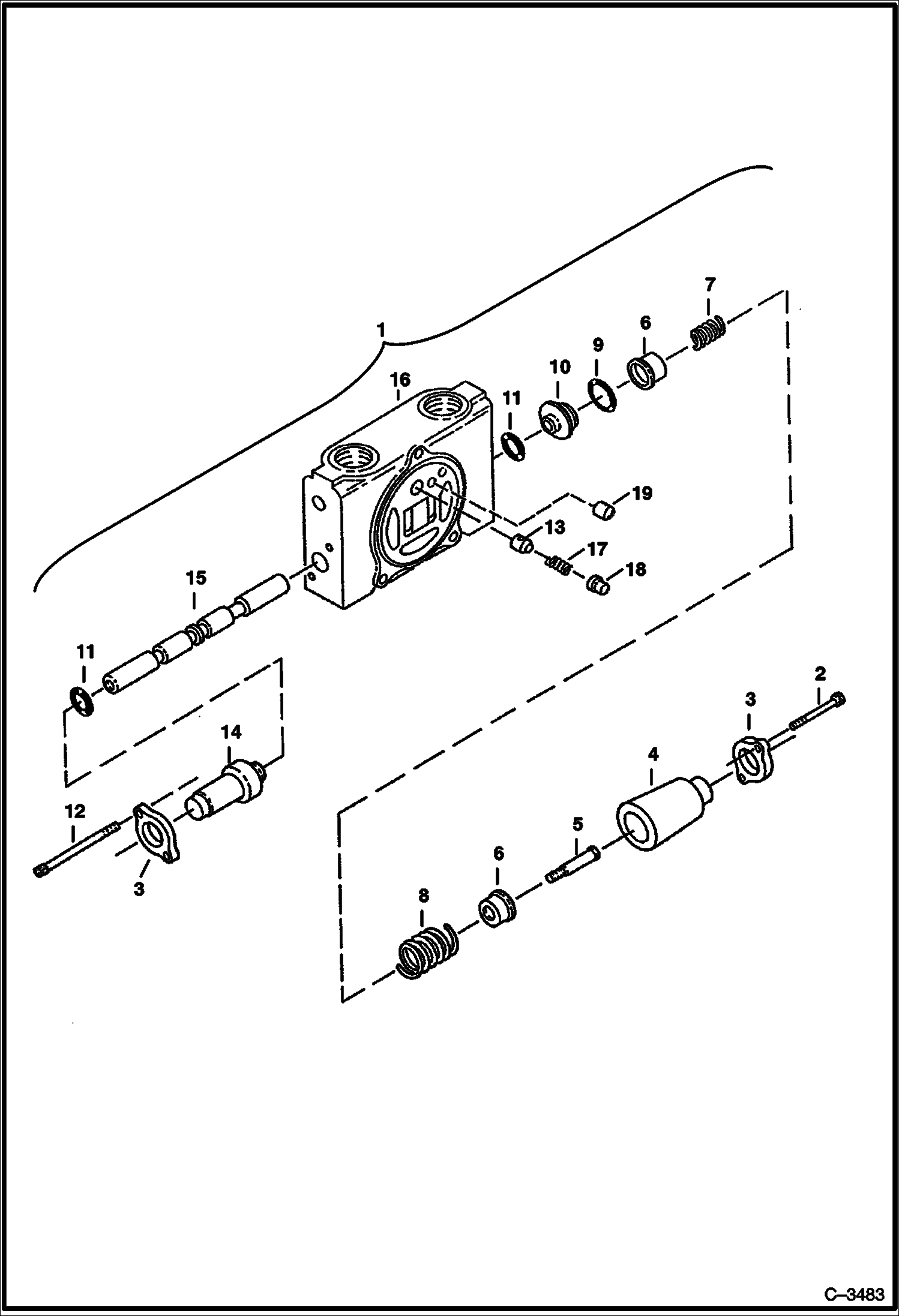

Запчасти Bobcat 337 VALVE SECTION (Auxiliary, Boom, Arm & Bucket) HYDRAULIC SYSTEM

1

6671674

VALVE Section - Auxiliary - W/Refs. 2-18

1

6671675

VALVE Section - Boom - W/Refs. 2-18

1

VALVE NLA - Section - Arm - Order 6671676 - W/Refs. 2-18 - Was 6671676 - A

1

6671676

VALVE Section - Arm - W/Refs. 2 - 19

1

VALVE NLA - Section - Bucket - W/Refs. 2-18 - Was 6671677 - A

1

6671677

VALVE Section - Bucket - W/Refs. 2-19

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6668966

BOLT

6

6668970

SEAT Spring

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

6665443

RETAINER

11

25K20026

O RING 10 Was 6665432 - A

12

73G424

SCREW

13

6676555

SPOOL Was 6671685 - A

14

6668965

END COVER

15

SPOOL NSS - Auxiliary - Order Ref. 1

15

SPOOL NSS - Boom - Order Ref. 1

15

SPOOL NSS - Arm - Order Ref. 1

15

SPOOL NSS - Bucket - Order Ref. 1

16

HOUSING NSS - Order Ref. 1

17

6676556

SPRING Was 6671687 - A

18

6676557

POPPET Was NLA - A

19

6677362

SLEEVE part of 6671677 valve
