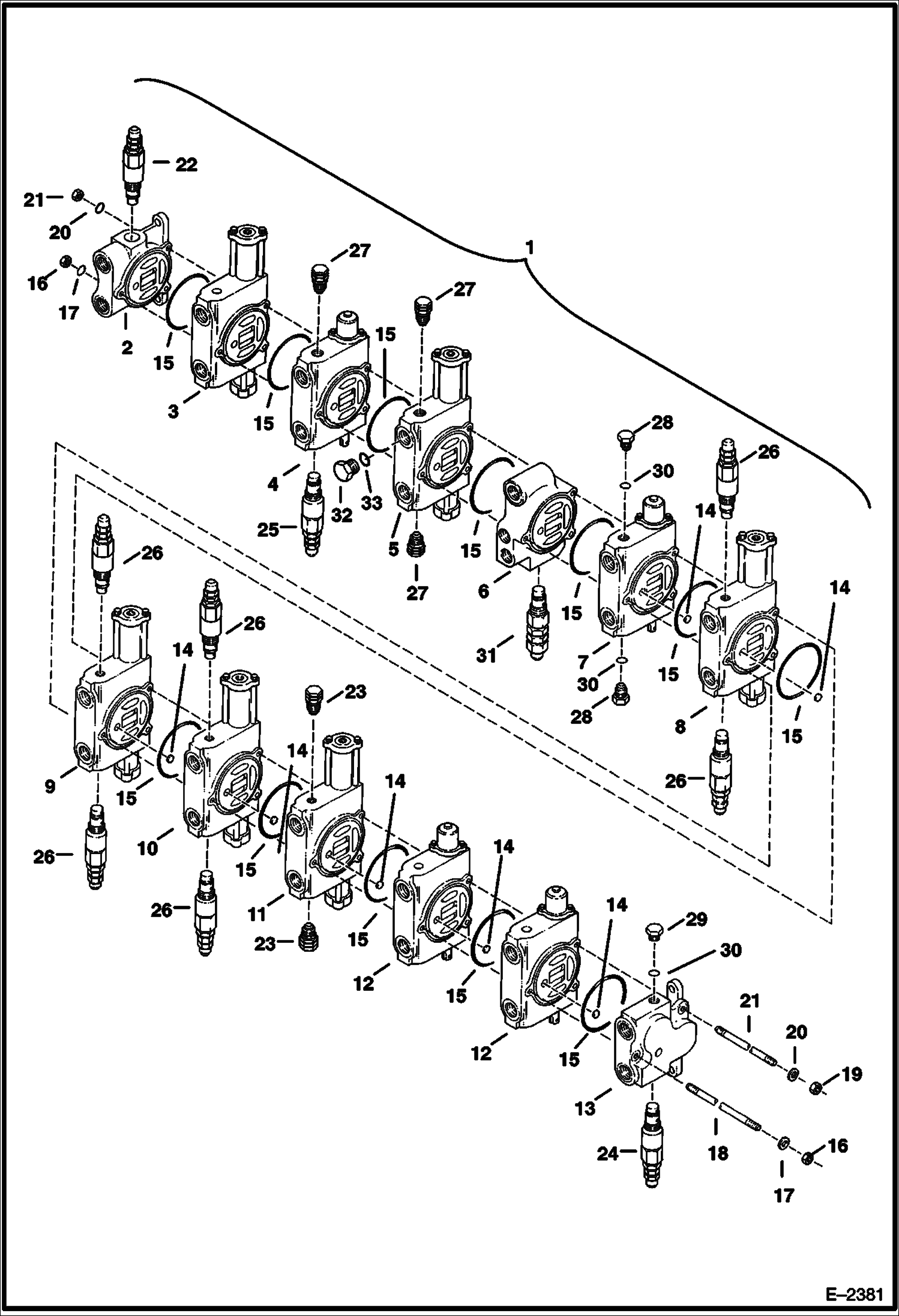

Запчасти Bobcat 337 CONTROL VALVE HYDRAULIC SYSTEM

1

6669588

VALVE W/Refs. 2-31

2

6671683

INLET W/Ref. 15

3

6671682

VALVE See Illustration VALVE SECTION/ B18290 section - swing house - W/Ref. 15

4

6671681

VALVE See Illustration VALVE SECTION/ C3484 section - blade - W/Ref. 15

5

6671680

VALVE See Illustration VALVE SECTION/ B18290 section - second auxiliary - W/Ref. 15

6

6671679

VALVE See Illustration VALVE SECTION/ C3481 mid-let - W/Ref. 15

7

6671678

VALVE See Illustration VALVE SECTION/ C3482 section - boom swing - W/Ref. 15

8

6671677

VALVE See Illustration VALVE SECTION/ C3483 section - bucket - W/Ref. 15

9

6671676

VALVE See Illustration VALVE SECTION/ C3483 section - arm - W/Ref. 15

10

6671675

VALVE See Illustration VALVE SECTION/ C3483 section - boom - W/Ref. 15

11

6671674

VALVE See Illustration VALVE SECTION/ C3483 section - auxiliary - W/Ref. 15

12

6671673

VALVE See Illustration VALVE SECTION/ C3482 section - travel - W/Ref. 15

13

6671672

INLET W/Ref. 29 & 30

14

6671698

SHUTTLE

15

58K228

O RING 10 Was 6646691 - A

16

62D6

NUT 5

17

6668973

WASHER

18

6671697

TIE ROD

19

61D5

NUT

20

6668961

WASHER

21

6671696

TIE ROD

22

6671694

RELIEF VALVE See Illustration RELIEF VALVE/ C3463 Set at 2750 PSI (18966 KPA) @ 12 GPM

22

6673143

RELIEF VALVE See Illustration RELIEF VALVE/ C3463 Set at 3200 PSI (22069) @ 12 GPM

23

6673756

RELIEF VALVE See Illustration RELIEF VALVE/ C3463 Set at 3000 PSI (20690 KPA) @ 5 GPM

24

6671695

RELIEF VALVE See Illustration RELIEF VALVE/ C3463 Set at 3900 PSI (26897 KPA) @ 5 GPM

25

6671693

RELIEF VALVE See Illustration RELIEF VALVE/ C3361 Set at 3750 PSI (25862 KPA) @ 5 GPM

26

6671692

RELIEF VALVE See Illustration RELIEF VALVE/ C3361 Set at 4200 PSI (28966 KPA) @ 5 GPM

27

6671699

PLUG Shut-off- W/O secondary front auxiliary

27

6673756

RELIEF VALVE Set at 3000 PSI - W/Secondary front auxiliaries

28

6671700

PLUG ASSY Anti-Void

29

6668956

PLUG

30

79K4

O RING 10 Was 6668957 - A

31

6631050

PLUG Shut-off

31

6674672

RELIEF VALVE See Illustration RELIEF VALVE/ B17972

32

24K6

FITTING

33

79K8

O RING 10
