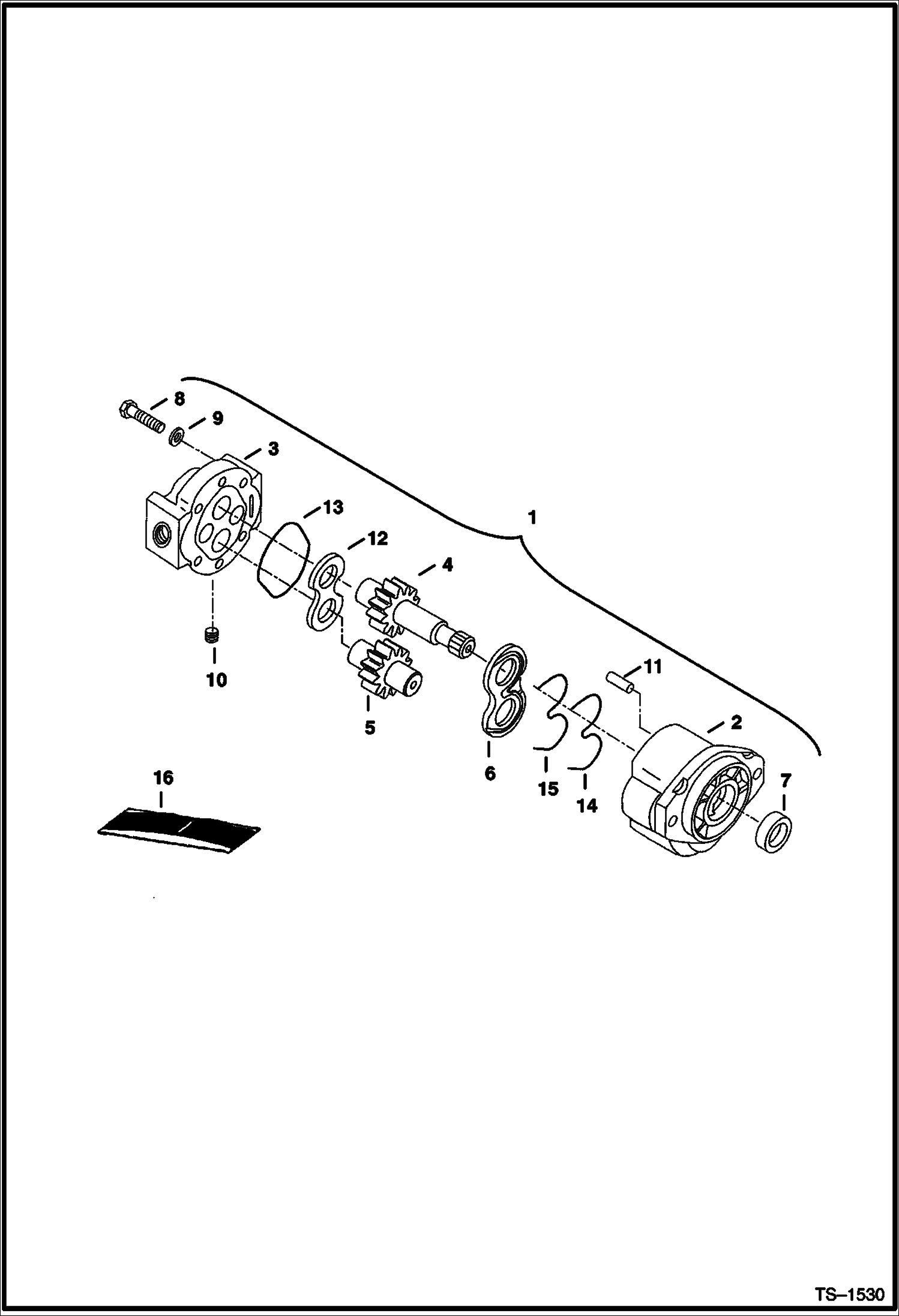

Запчасти Bobcat 337 GEAR PUMP (S/N 515412249 & Below and 230611067 & Below) HYDRAULIC SYSTEM

1

PUMP NLA - Gear - Include Refs. 2-15-Order 6675194 pump, 6805841 hose, 6805839 fitting - Was 6672208 - A

2

6672209

HOUSING Front

3

6672210

HOUSING Rear

4

6672211

GEAR Drive

5

6672212

GEAR Drive

6

6672213

WEAR PLATE

7

6672214

SEAL Include W/Ref. 16

8

6672215

BOLT

9

6672216

WASHER

10

6672217

PLUG

11

DOWEL PIN NLA - Was 6672218 - A

12

6672219

PLATE Thrust

13

SEAL NSS - Include W/Ref. 16

14

SPACER NSS - Nylon - Include W/Ref. 16

15

SEAL NSS - Include W/Ref. 16

16

6672260

SEAL KIT Include Refs. 7 & 13-15
