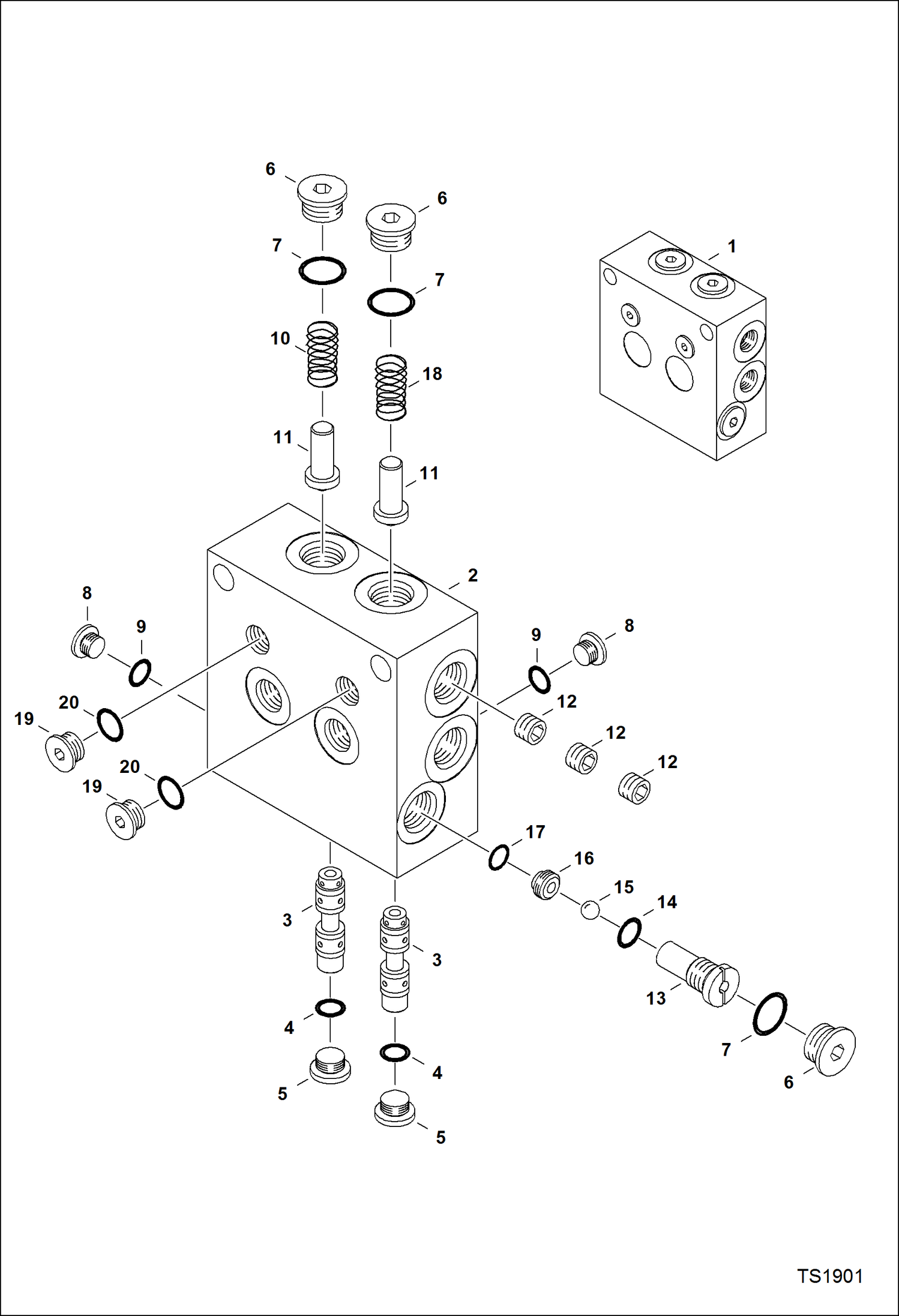

Запчасти Bobcat 337 SEQUENCE VALVE (S/N 515411497 & Above) HYDRAULIC SYSTEM

1

VALVE NLA - assy - dual sequence - W/Ref. 2-18 - Order 7010002 valve - Was 6673053 - A

1

7010002

VALVE, SEQUENCE DUAL Ref. 2-21

2

BLOCK NSS

3

SPOOL NSS - Order Ref. 1

4

95K4

O-RING

5

90K3

PLUG W/Ref. 4 - Was 90KV3 - D

6

90KV5

PLUG W/Ref. 5

7

95K6

O'RING

8

90KV1

PLUG W/Ref. 9

9

95K2

O-RING

10

6674951

SPRING

11

6674950

SPRING END

12

6674949

ORIFICE

13

PLUG NLA - Shuttle - Order 7021364 Kit - Was 6672548 - A

14

6672547

O-RING

15

BALL NLA - Order 7021364 Kit - Was 6672550 - A

16

SEAT NLA - Order 7021364 Kit - Was 6672549 - A

17

6672551

O-RING

18

6674948

SPRING

19

90KV1

PLUG W/Ref. 20

20

95K2

O-RING

21

6674949

ORIFICE
