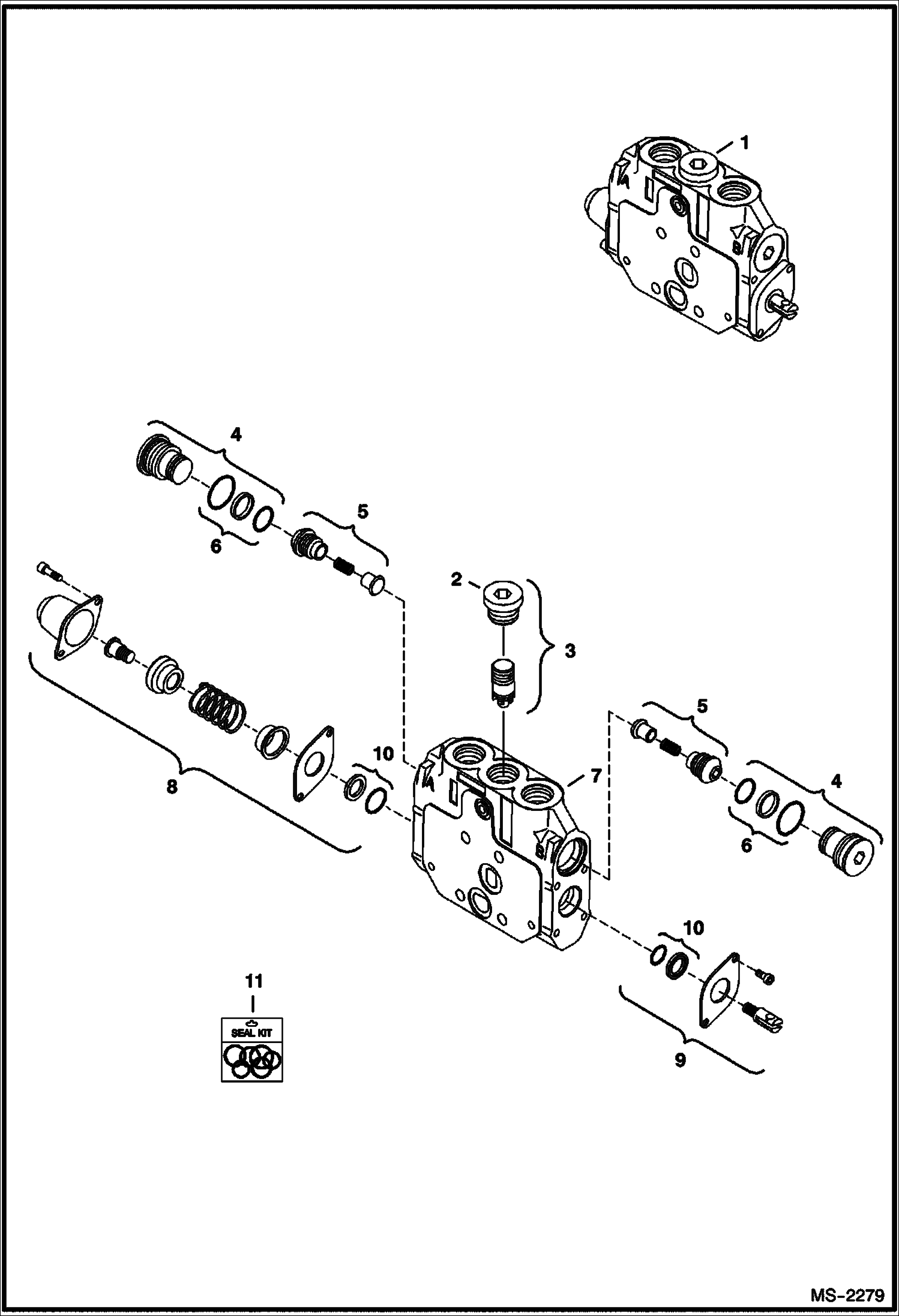

Запчасти Bobcat 335 VALVE SECTION (Boom Offset) HYDRAULIC SYSTEM

1

6686642

VALVE offset

2

6685248

PLUG

3

6677690

KIT, COMPENSATOR

4

6677471

PLUG ASSY

5

6677689

CHECK VALVE check valve - Was 6686595 - A

6

6677468

SEAL KIT

7

BLOCK NSS - Order Ref 1

8

6677698

ACTUATOR

9

6677696

ACTUATOR

10

O-RING NSS - Order Ref 11

11

6677470

SEAL KIT
