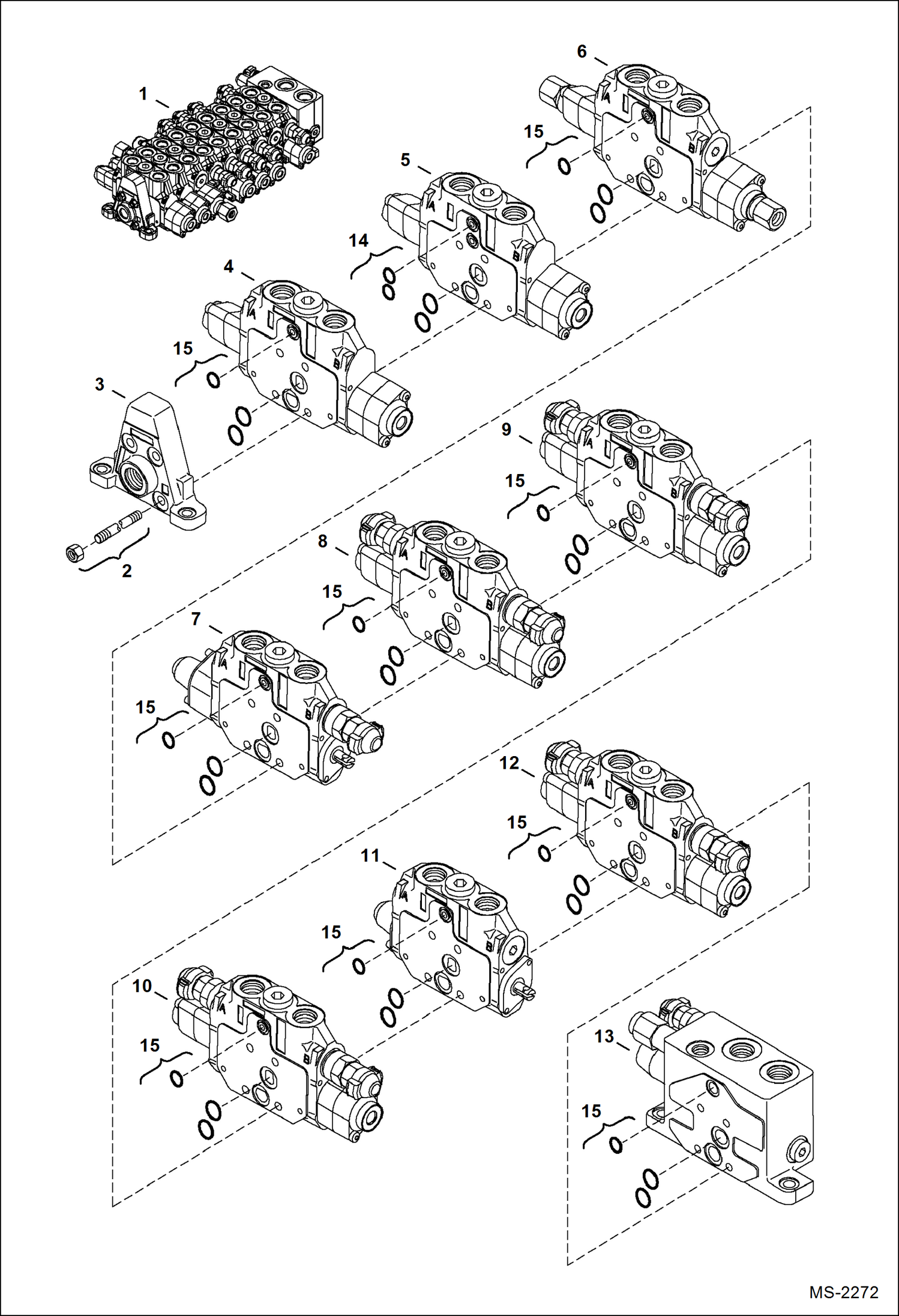

Запчасти Bobcat 335 CONTROL VALVE HYDRAULIC SYSTEM

1

6690475

VALVE, CONTROL

2

6677476

TIE ROD KIT kit

3

6677461

VALVE outlet

4

6679924

SECTION, VALVE See Illustration VALVE SECTION/ MS2274 RH Travel - Was 6686582 - A

5

6679923

SECTION, VALVE See Illustration VALVE SECTION/ MS2275 LH travel - Was 6686581 - A

6

6691074

VALVE See Illustration VALVE SECTION/ MS2276 slew

7

6686640

VALVE See Illustration VALVE SECTION/ MS2277 blade

8

6686638

VALVE See Illustration VALVE SECTION/ MS2278 bucket

9

6686636

VALVE See Illustration VALVE SECTION/ MS2278A arm

10

6686634

VALVE See Illustration VALVE SECTION/ MS2278B boom

11

6686642

VALVE See Illustration VALVE SECTION/ MS2279 offset

12

6677454

VALVE See Illustration VALVE SECTION/ MS2278C aux

13

6691104

INLET SECTION See Illustration VALVE SECTION/ MS2280 inlet

14

6677472

KIT,SEAL

15

6677467

KIT, SEAL
