Запчасти Bobcat 335 ANGLE BLADE VALVE HYDRAULIC SYSTEM

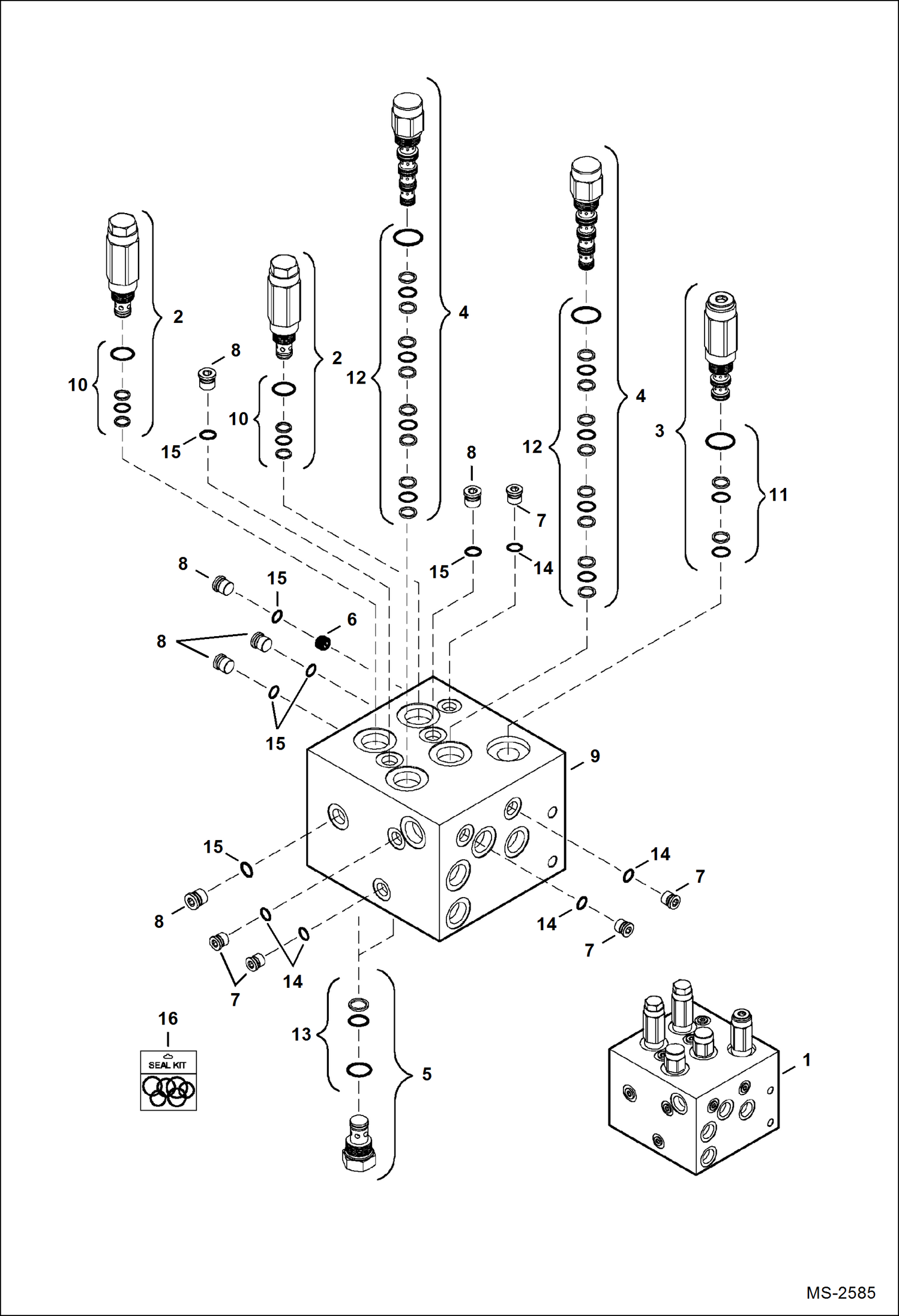

Схема запчастей Bobcat 335 - ANGLE BLADE VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6691716

VALVE W/Ref. 2-15

2

6698302

VALVE RELIEF

3

6698303

VALVE

4

6698304

VALVE

5

6698305

VALVE CHECK

6

6698306

ORIFICE PLUG

7

6677177

PLUG W/Ref. 14

8

6672762

PLUG W/Ref. 15

9

BLOCK NLA - Order Ref. 1

10

6698307

KIT, SEAL

11

6698308

KIT, SEAL

12

6698309

KIT, SEAL

13

6698310

KIT, SEAL

14

6698311

SEAL O-RING

15

6672763

O'RING

16

6698312

KIT, SEAL COMPLETE

Выбрано товаров: 16
