Запчасти Bobcat 335 HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

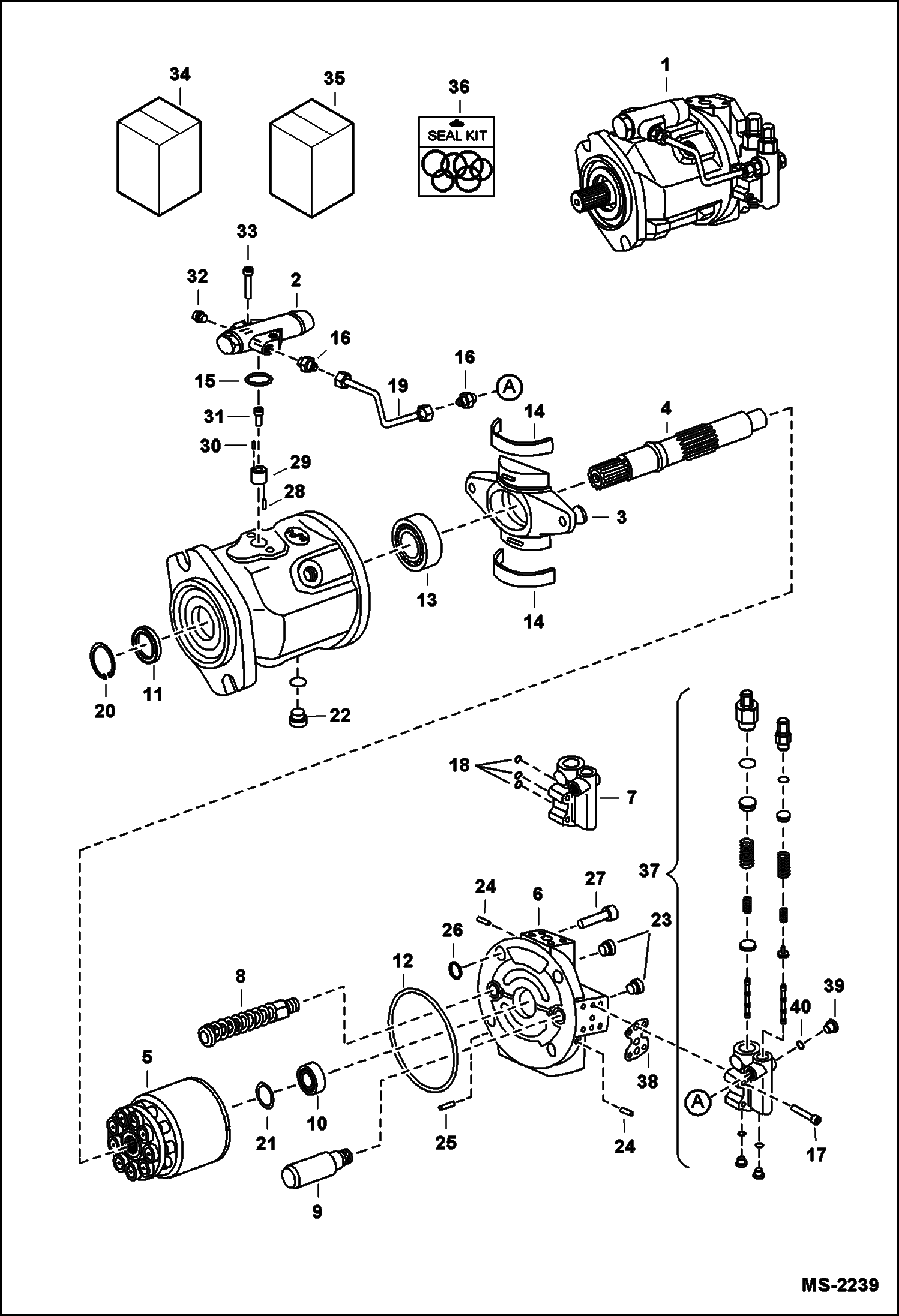

Схема запчастей Bobcat 335 - HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6689769

PUMP

2

6686768

VALVE does not include spring seat - Also Order 6679148 spring & 6679149 spring - Was 6690572 - D

2

6693358

SPRING SET

3

6690573

SWASHPLATE ASSY

4

6686747

SHAFT DRIVE

5

6672220

BLOCK ASSY Ws 6690574 - D

6

6690575

PORT PLATE

7

CONTROL See Illustration HYDRAULIC PISTON PUMP/ B15928 - NLA - Use W/Ref. 18 - Order Ref. 37 & 38 - Was 6676381 - A

7

6686767

PLUG goes in the X port - Was 6692557 - D

7

PLUG NSS - goes behind each spool - metric (70 or 90 durometer)

8

STROKECONTROL NSS - Order Ref. 34

9

STROKE CONTROL NSS - Order Ref. 34

10

BEARING NSS - Order Ref. 35

11

SEAL NSS - Order Ref. 36

12

SEAL NSS - Order Ref. 36

13

BEARING NSS - Order Ref. 35

14

BEARING NSS - Order Ref. 35

15

6686770

O-RING

16

FITTING NSS - Order Ref. 19

17

6672255

BOLT Was 6691489 - D

18

O-RING NSS - Order Ref. 36

19

6686776

PIPE W/Ref. 16 - Was 6692547 - D

20

6691458

RING Was 6692550 - D

21

6691449

SHIM adjusting

22

6686757

PLUG W/ o-ring - Was 6692551 - A

22

6671787

O-RING

23

PLUG NSS - W/ o-ring - Order Ref. 36

24

6682879

PIN break-off - Was 6688039 - A

25

6672235

DOWEL PIN dowel - Was 6691462 - D

26

O-RING NSS - Order Ref. 36

27

6692552

SCREW

28

6692553

PIN spring

29

6676391

CARRIER Was 6692554 - D

30

6676393

PIN spring - Was 6692555 - D

31

6688518

BOLT Was 6692556 - D

32

6692557

PLUG W/ o-ring - Was 6692557 - A

33

6692558

SCREW

34

6690576

STROKING UNITS W/Ref. 8-9

35

6690577

BEARING KIT W/Ref. 10, 13-14

36

6686695

SEAL KIT W/Ref. 11-12, 18, 23 & 26

37

7001950

CONTROL Use W/gasket - must replace gasket each time controller is removed

38

6691519

GASKET one time use - must replace when controller is removed

39

6691491

PLUG W/Ref. 40

40

O-RING NLA - Order Ref. 39

Выбрано товаров: 44
