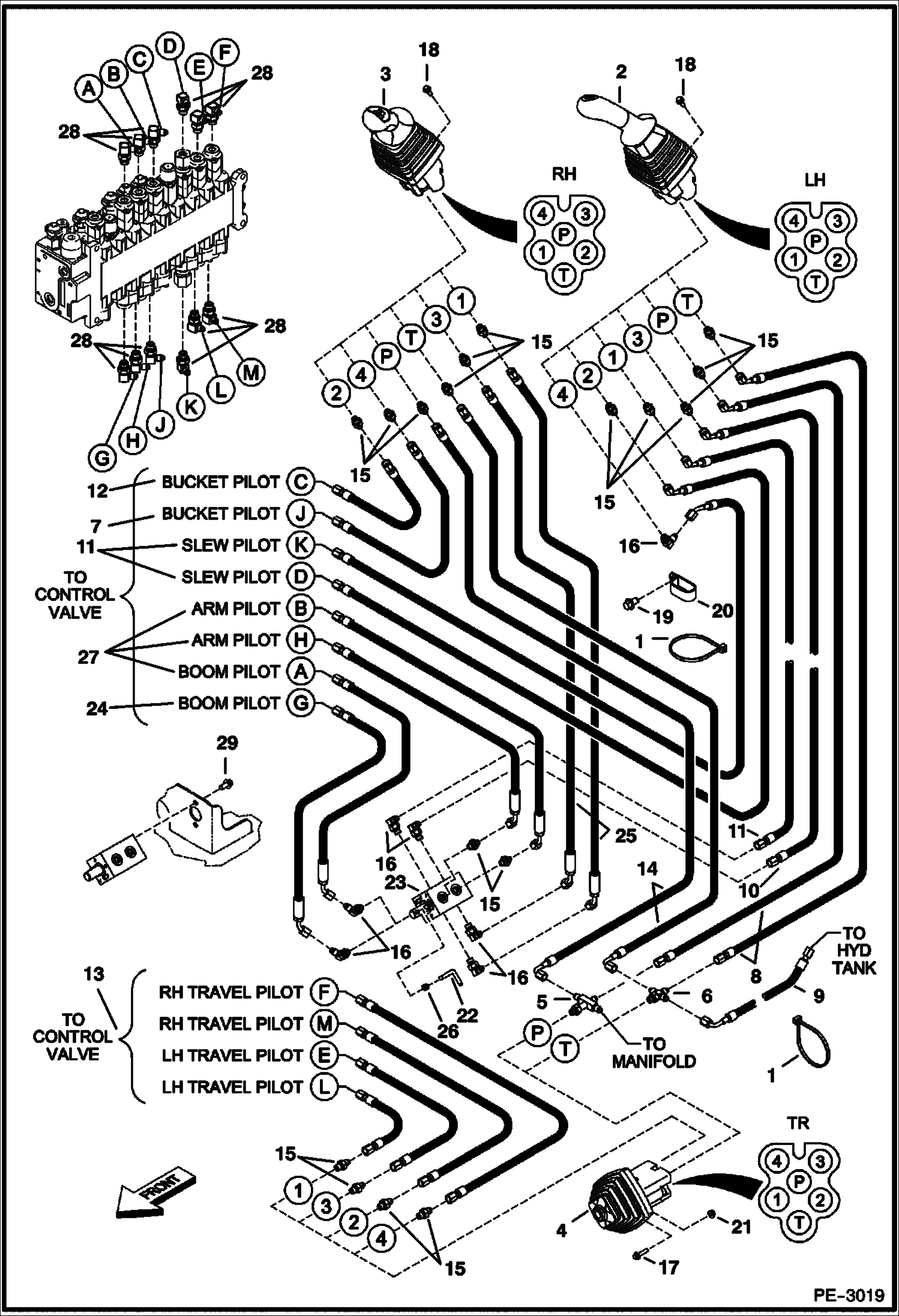

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106604

HOSE

8

7106606

HOSE

9

7106608

HOSE

10

7106612

HOSE

11

7106614

HOSE

12

7106615

HOSE

13

7107647

HOSE

14

7107649

HOSE

15

15KB0404

FTG HYD S Connector

15

79K4

O RING 10

16

17KB0404

FTG HYD ELBOW 90

16

79K4

O RING 10

17

17C416

BOLT

18

26GM6020

SCREW

19

26GM10020

BOLT

19

26GM10016

SCREW

19

26GM8013

BOLT

20

31H46

CLAMP

20

30H85

CLAMP

21

83D4

NUT 10

22

6804251

HANDLE

23

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

24

7106619

HOSE

25

7106620

HOSE

26

53DM6

NUT Was 1DM6 - A

27

7106621

HOSE

28

7124150

ELBOW

28

79K6

O RING 10

29

29CM816

SCREW
