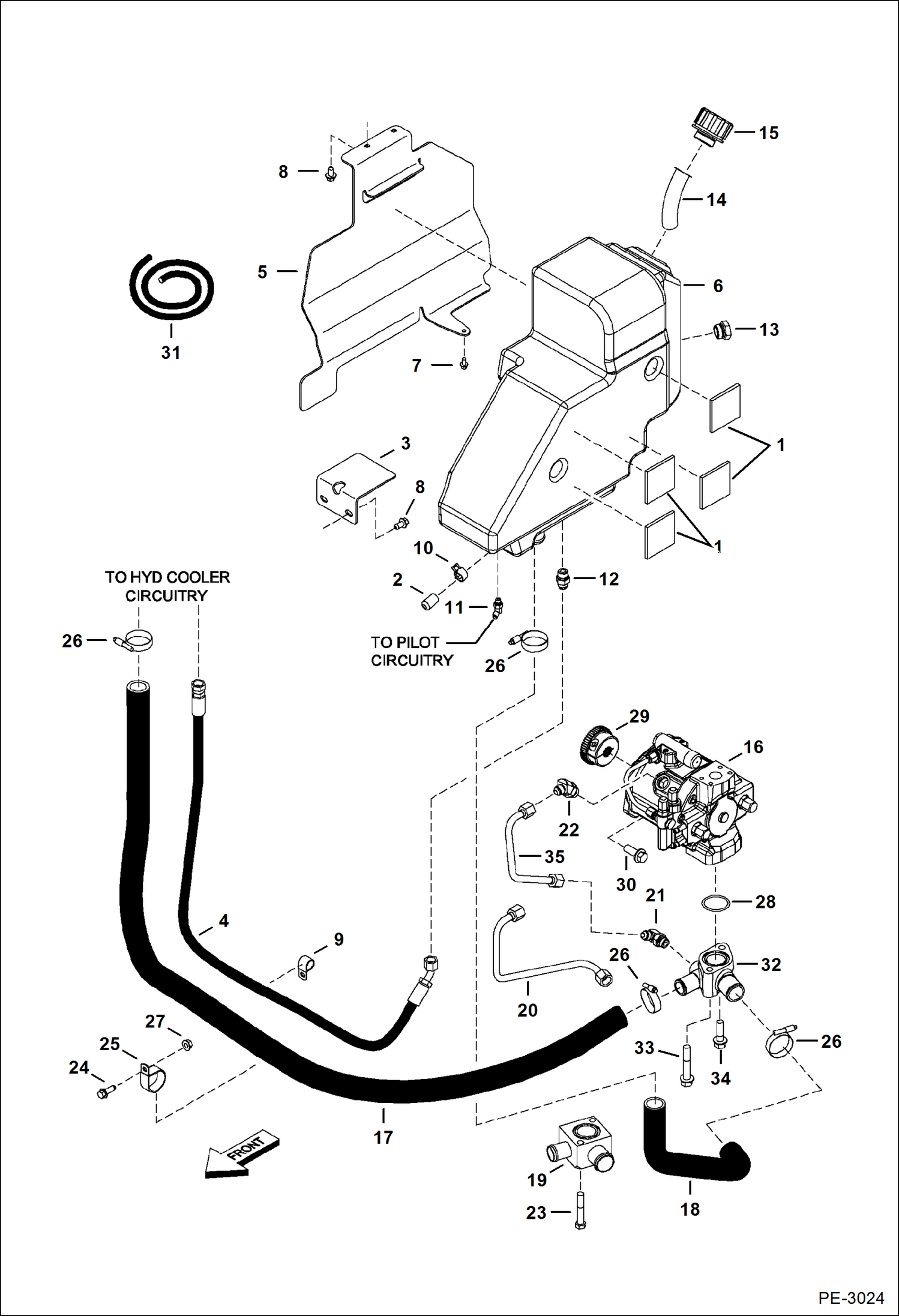

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

6680398

CAP

3

7101356

MOUNT

4

7125142

HOSE

5

7125941

BRACKET

6

7125940

TANK

7

26GM8016

SCREW

8

26GM10020

BOLT

9

30H65

CLIP

10

5HM20

CLAMP

11

18KB0404

FTG HYD ELBOW 45

11

79K4

O RING 10

12

15KB0808

FITTING, HYD CONNECTOR

12

79K8

O RING 10

13

6665915

GAUGE

13

79K12

O RING 10

14

7134222

SCREEN fill - Was 6587168 - A

15

6692836

CAP, HYDRAULIC TANK W/ 79K20 O-ring - Was 6674690 - B,D

16

6689769

PUMP See Illustration HYDRAULIC PISTON PUMP/ MS2239

17

HOSE NLA - 70'' (1778 mm) long - Order Ref. 31

18

7125336

HOSE

19

7127540

MANIFOLD

20

7128829

TUBELINE

21

17KB0808

FITTING, HYD ELBOW

21

79K8

O RING 10

22

18KB0810

FITTING, HYD ELBOW

22

79K10

O RING 10

23

17C848

BOLT

24

26GM10030

BOLT

25

30H85

CLAMP

26

42HC200

CLAMP

27

43DM10

NUT

28

58K225

O RING 10

29

6676535

COUPLER

30

29CM1435

SCREW

31

6673825

HOSE bulk - sold per foot

32

7125950

MANIFOLD

33

31C848

BOLT

34

31C828

BOLT

35

7134542

TUBELINE
