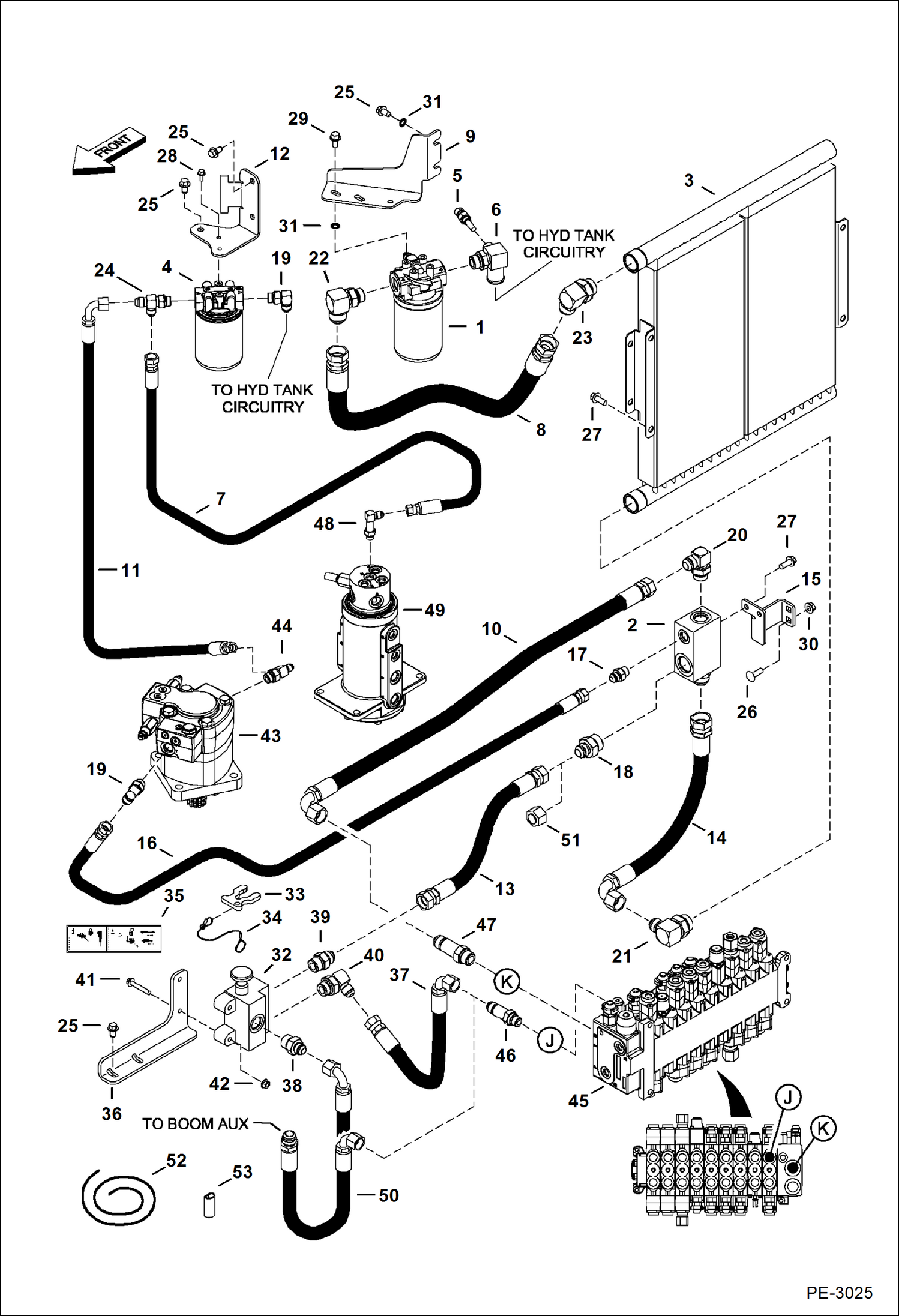

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct To Tank) HYDRAULIC SYSTEM

1

6661247

FILTER

1

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

1

6660260

SWITCH hydraulic pressure

2

6681586

VALVE pressure build-up

2

6681968

SPRING

2

6681969

POPPET

2

6676044

ADAPTER

3

6684366

EXCHANGER

4

6686217

FILTER ASSY

4

6516722

FILTER

5

6718417

SENDER hyd temp

6

6809666

ELBOW

6

79K12

O RING 10

7

6809946

HOSE

8

6813919

HOSE

9

6814482

MOUNT

10

6814662

HOSE

11

6817821

HOSE

12

7104428

BRACKET

13

7127678

HOSE

14

7127679

HOSE

15

7127754

MOUNT

16

7130577

HOSE

17

15KB0808

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

15KB1216

FITTING, HYD CONNECTOR

18

79K16

O RING 10

19

17KB0808

FITTING, HYD ELBOW

19

79K8

O RING 10

20

17KB1212

FITTING, HYD ELBOW

20

79K12

O RING 10

21

17KB1216

FITTING, HYD ELBOW

21

79K16

O RING 10

22

17KB1612

FITTING, HYD ELBOW

22

79K12

O RING 10

23

17KB1616

FITTING, HYD ELBOW

23

79K16

O RING 10

24

21KB0808

FTG HYD STRAIGHT TEE

24

79K8

O RING 10

25

26GM10020

BOLT

26

28CM1030

BOLT

27

29CM1025

BOLT

28

35C410

BOLT 5

29

35C612

BOLT

30

51DM10

NUT

31

6E6

WASHER

32

6660267

VALVE See Illustration SELECTOR VALVE/ B13660

33

6808717

CLIP

34

WIRE ROPE NLA - 14'' (355 mm) long - Order Ref. 52 & 53 - Was 6808831 - B

35

6808879

DECAL valve

36

6809087

BRACKET

37

6809990

HOSE

38

15KB1012

FITTING, HYD CONNECTOR

38

79K12

O RING 10

39

15KB1212

FITTING, HYD CONNECTOR

39

79K12

O RING 10

40

17KB1012

FITTING, HYD ELBOW

40

79K12

O RING 10

41

29CM850

SCREW

42

43DM8

NUT

43

7001956

MOTOR SLEW See Illustration SWING MOTOR/ MS1847 - Was 6690316 - A

44

21KB0608

FTG Hyd Straight Tee

44

79K8

O RING 10

45

6690475

VALVE, CONTROL See Illustration CONTROL VALVE/ MS2272

46

16KB1008

FITTING, HYD ELBOW

46

79K8

O RING 10

47

16KB1212

FITTING, HYD CONNECTOR

47

79K12

O RING 10

48

6812815

FITTING

48

79K6

O RING 10

49

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057

50

7128695

HOSE

51

36K7

FITTING

52

6558309

WIRE ROPE bulk - sold per foot

53

6558310

SLEEVE
